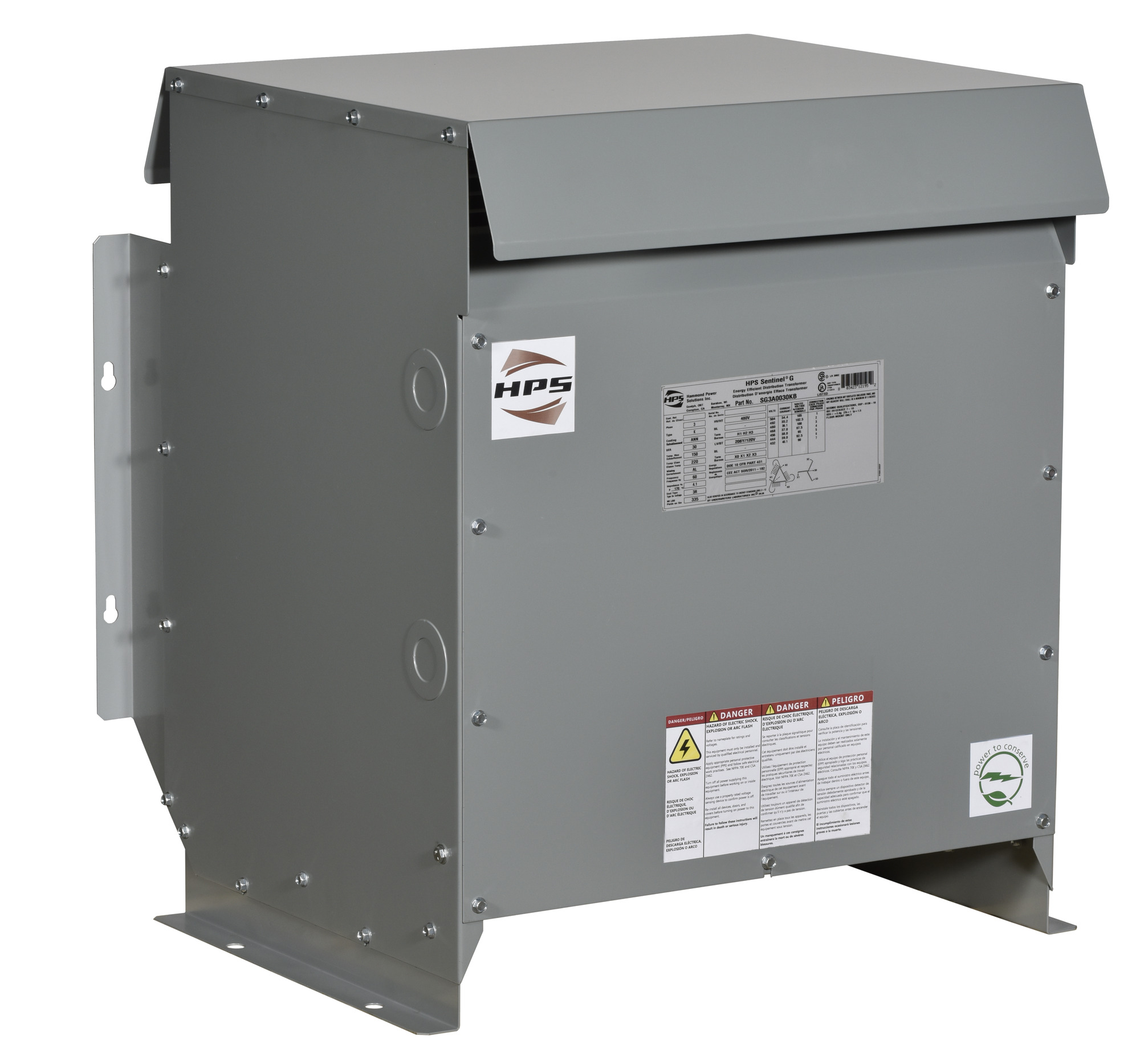

SG3A0030BY Sentinel G Dry Type Energy Efficient General Purpose Distribution Transformer, 208 Delta V AC Primary, 380Y/220 V Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- SG3A0030BY
- UPC:
- 803423145835
- Item #:
- 758765
SG3A0030BY Sentinel G Dry Type Energy Efficient General Purpose Distribution Transformer, 208 Delta V AC Primary, 380Y/220 V Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- SG3A0030BY
- UPC:
- 803423145835
- Item #:
- 758765
Manuals & Documentation
| Catalog Number | SG3A0030BY |
| Manufacturer | Hammond Power Solutions |
| Brand | HPS |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Enclosure | Contact HPS |
| Frequency Rating | 60 HZ |
| Mounting | Ceiling |
| Number of Taps | ST-20 compliant |
| Phase | 3 |
| Primary Voltage | 208D V |
| Secondary Voltage | 380Y/220V w taps at 400Y, 416Y and 430Y V |
| Special Features | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Standard | CSA, UL |
| UPC | 803423145835 |
| GTIN | 00803423145835 |
| Item Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| Length | Contact HPS |
| Width | Contact HPS |
| Height | Contact HPS |
| Temperature Rating | Typical 30 Average/ 40 Maximum DEG C |
