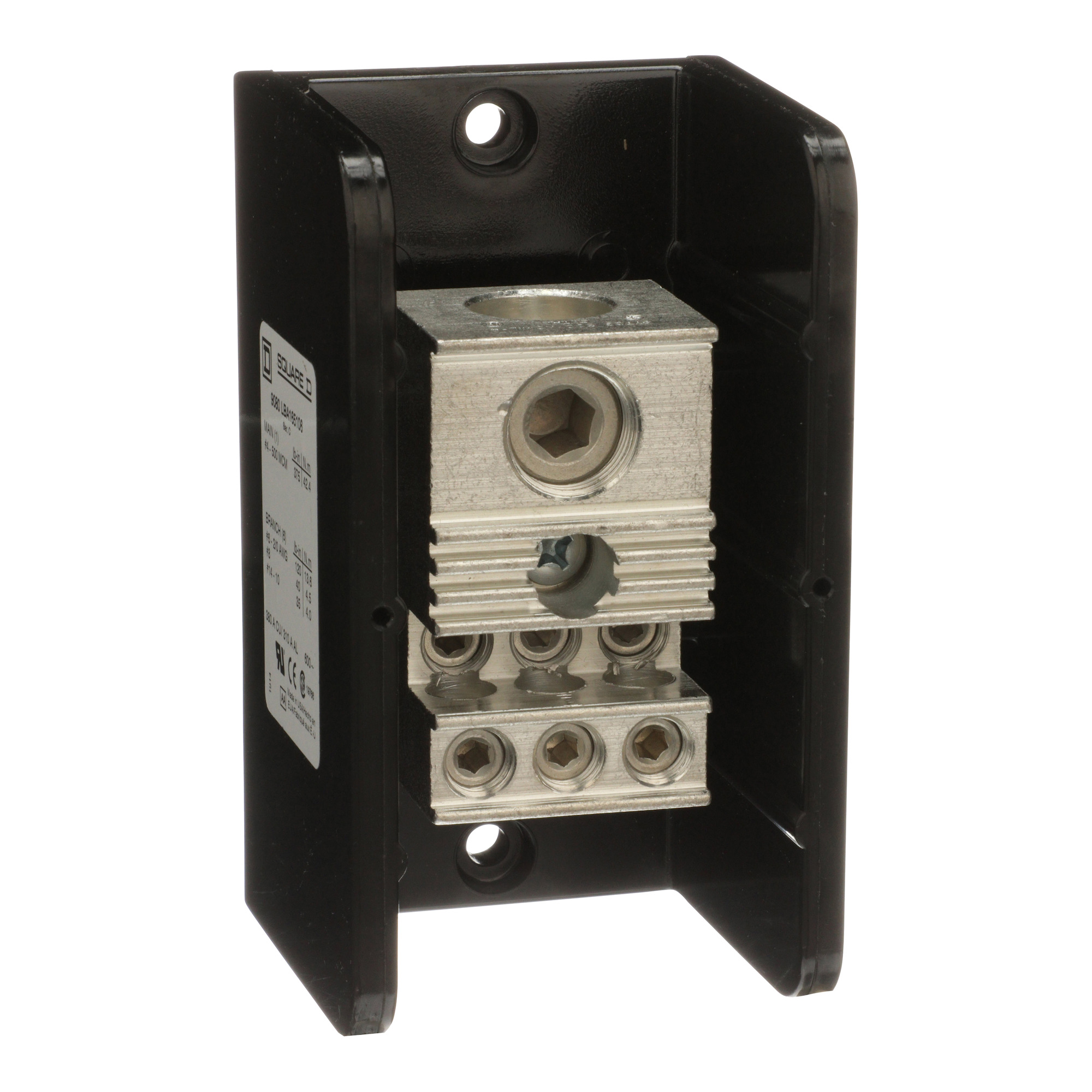

9080LBA165106 Linergy Power Distribution Block, 600 VAC/VDC, 310/380 A, 1 Poles, 14 to 2/0 AWG, 4 AWG to 500 kcmil Wire, Phenolic
- MFR:
- Schneider Electric
- MFR #:
- 9080LBA165106
- UPC:
- 785901097372
- Item #:
- 75441
9080LBA165106 Linergy Power Distribution Block, 600 VAC/VDC, 310/380 A, 1 Poles, 14 to 2/0 AWG, 4 AWG to 500 kcmil Wire, Phenolic
- MFR #:
- 9080LBA165106
- UPC:
- 785901097372
- Item #:
- 75441

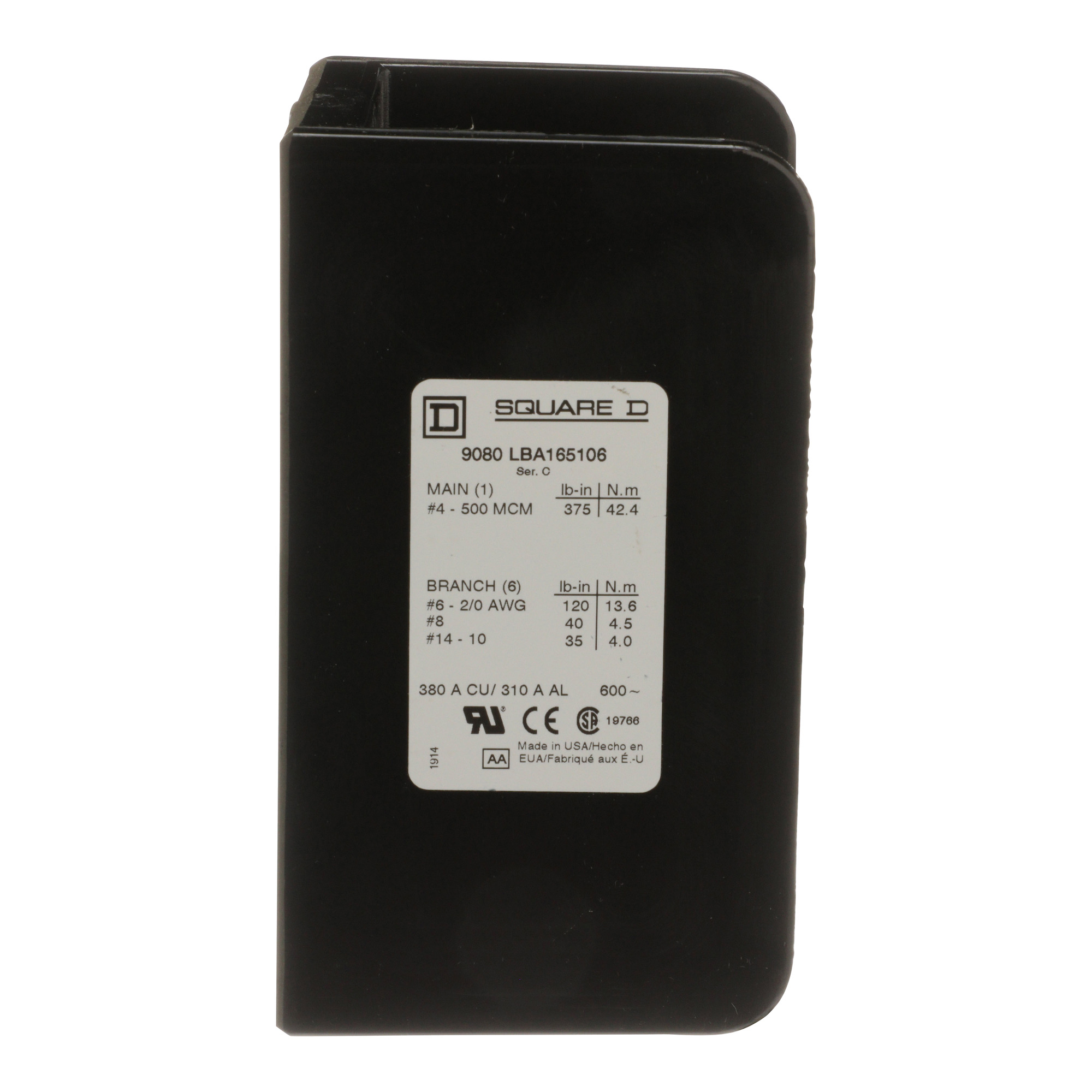

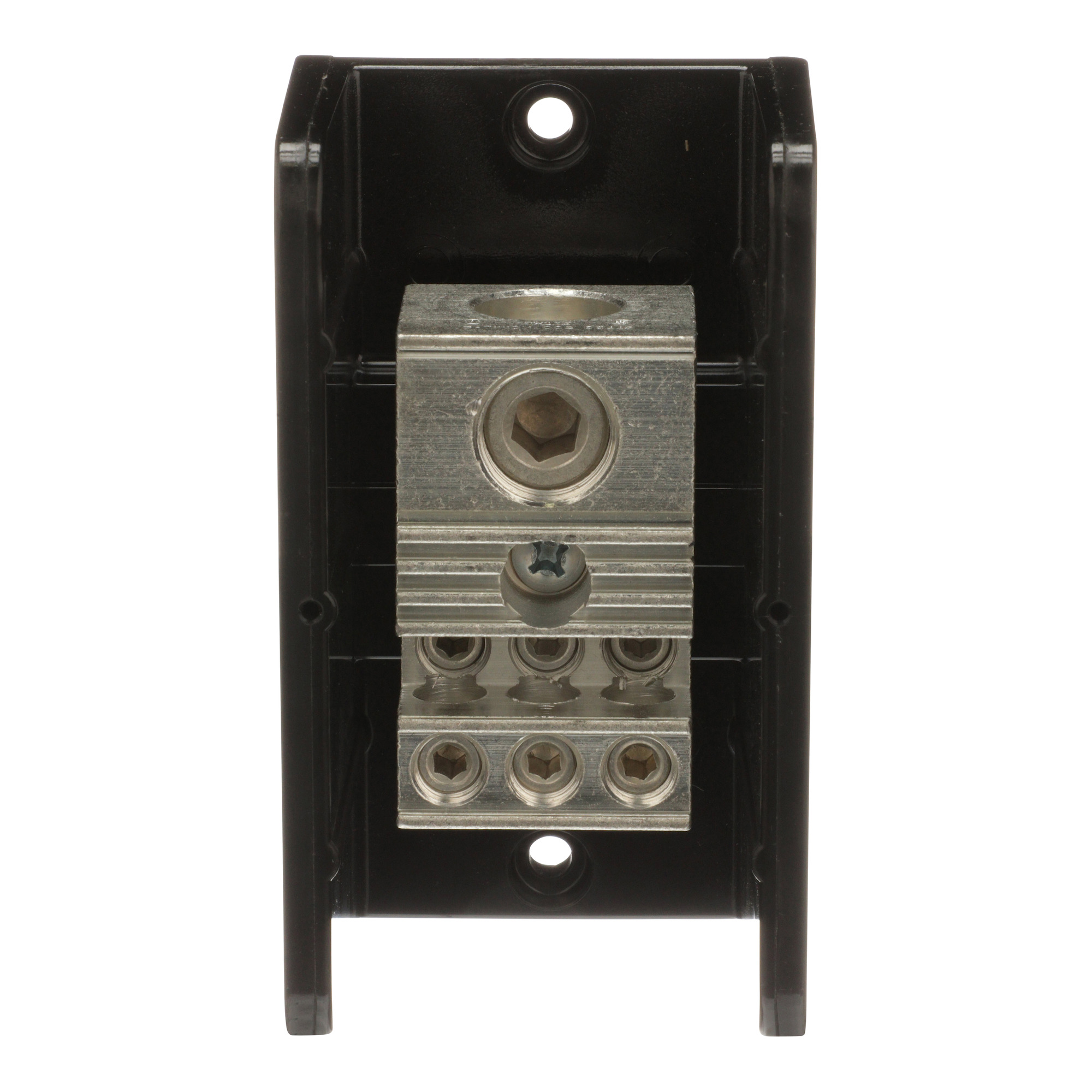

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 500 kcmil copper or aluminum wire. The load side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 380 amperes with copper wire and 310 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9080LBA165106 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372939&lang=en-us |
| UPC | 785901097372 |
| GTIN | 00785901097372 |
| Width | 3.17 |
| Width UOM | Inch |
| Height | 5.5 |
| Height UOM | Inch |
| Depth | 3.13 IN |
