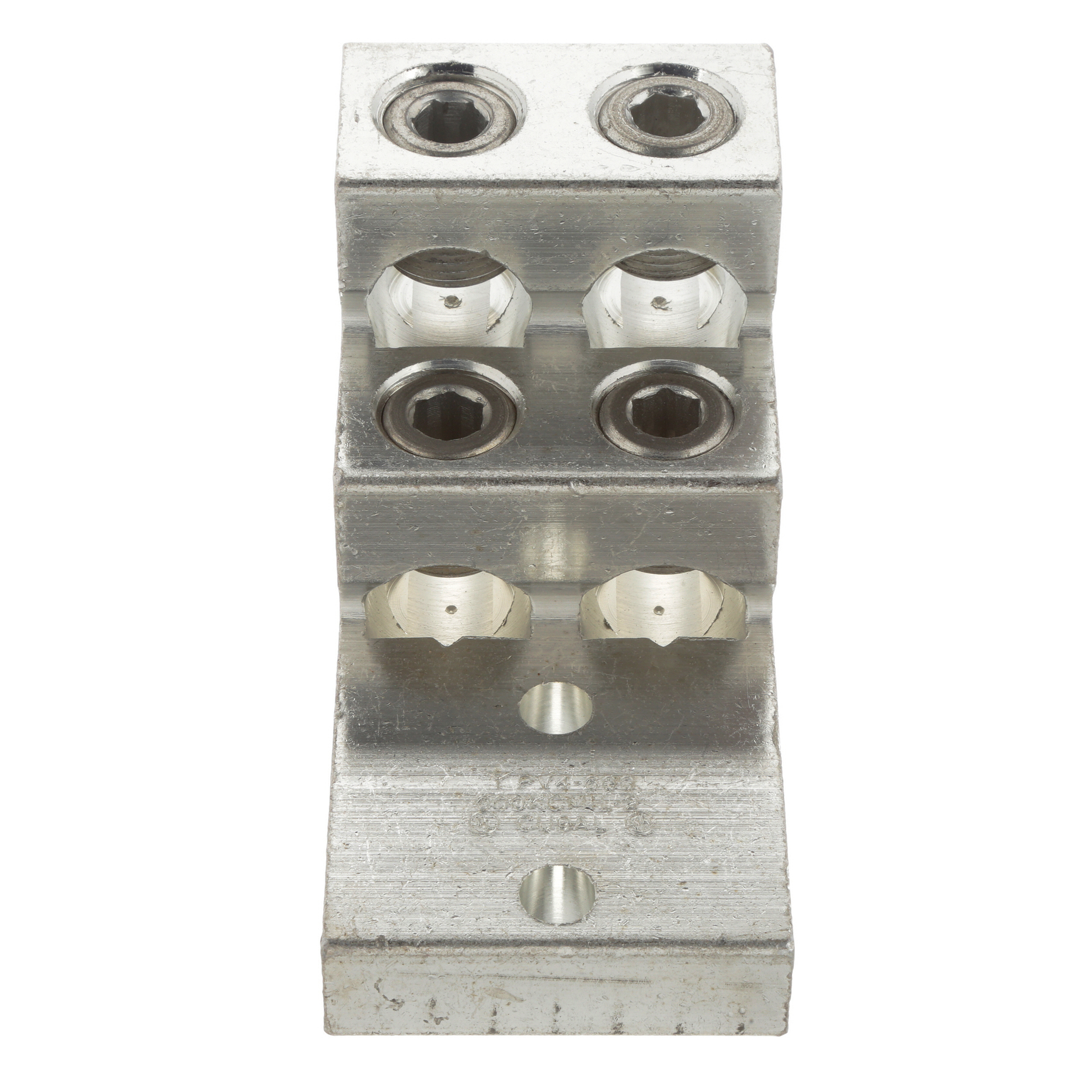

LAM4SB600-38-1Y Pan-Lug 4-Barrel Vertical Mechanical Connector Lug, 2 AWG to 600 kcmil Aluminum/Copper/Stranded Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
- MFR:
- Panduit
- MFR #:
- LAM4SB600-38-1Y
- UPC:
- 074983595044
- Item #:
- 753949
LAM4SB600-38-1Y Pan-Lug 4-Barrel Vertical Mechanical Connector Lug, 2 AWG to 600 kcmil Aluminum/Copper/Stranded Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
- MFR #:
- LAM4SB600-38-1Y
- UPC:
- 074983595044
- Item #:
- 753949
Two-hole, aluminum, vertical four barrel lug, type LAM4SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.
Manuals & Documentation
| Catalog Number | LAM4SB600-38-1Y |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Material | Tin-Plated Aluminum |
| Number of Holes | 2 |
| Standard | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees C |
| UPC | 074983595044 |
| GTIN | 00074983595044 |
| Item Type | Mechanical Lug |
| Stud Size | 3/8 IN |
| Voltage Rating | 35 |
| Cross Reference Products | ABBInstall 62245|ABBInstall AQ4600|ABBInstall ASL60-42|Anderson PV4-600|Burndy K22A36U-2|Burndy K22A36U2N|Galvan 4ABV-500 4ABV-600|Grainger 22C198|Greaves AQ4-600|Ideal 87-138 |
