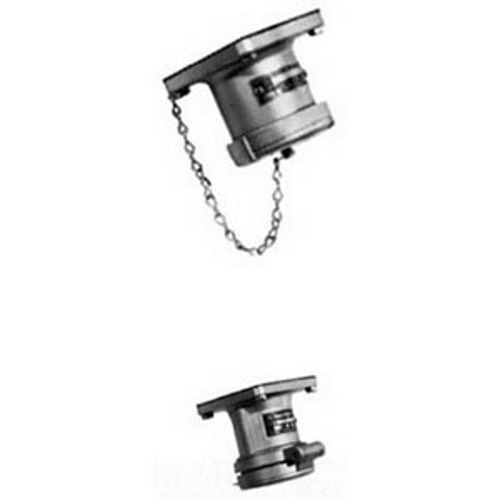

3-Pole Pin & Sleeve Receptacle, 600 VAC, 250 VDC, 30 A, 3-Wire
- MFR:
- Appleton Electric
- MFR #:
- ADR3033
- UPC:
- 781381186346
- Item #:
- 75352
3-Pole Pin & Sleeve Receptacle, 600 VAC, 250 VDC, 30 A, 3-Wire
- MFR #:
- ADR3033
- UPC:
- 781381186346
- Item #:
- 75352
Powertite Grounding Style 1 Receptacle, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Co
Manuals & Documentation
| Catalog Number | ADR3033 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | For ACP3033BC Metallic Clamping Ring Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Box |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381186346 |
| GTIN | 00781381186346 |
| Item Type | Grounding Style 1 Receptacle |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) |
