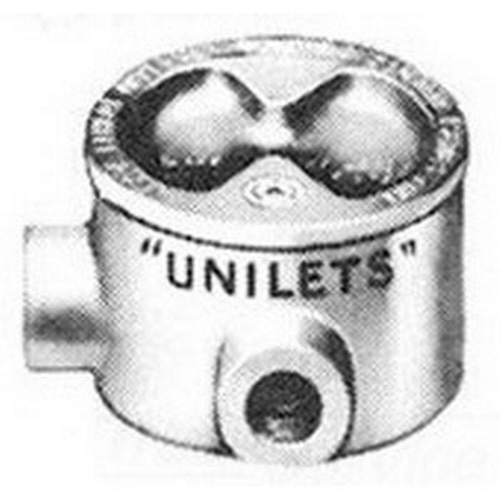

Type L Conduit Body with Cover, 3/4 inch, Malleable Iron Body/Copper-Free Aluminum Cover, Zinc Electroplated
- MFR:
- Appleton Electric
- MFR #:
- GRHL75
- UPC:
- 781381439602
- Item #:
- 752748
Type L Conduit Body with Cover, 3/4 inch, Malleable Iron Body/Copper-Free Aluminum Cover, Zinc Electroplated
- MFR #:
- GRHL75
- UPC:
- 781381439602
- Item #:
- 752748
UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN GRHL Hub, Cubic Capacity: 13.8 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.63 IN, Nema R
Manuals & Documentation
Features
- Accurately tapped, tapered hub threads
- Smooth, rounded integral bushing
- General purpose wiring
- Allow connections for branch runs
- UL listed
| Catalog Number | GRHL75 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (2) 3/4 IN GRHL Hub |
| Cubic Capacity | 13.8 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover; General purpose wiring; Internally threaded body with externally threaded covers; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups A, B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381439602 |
| GTIN | 00781381439602 |
| Item Type | Outlet Box |
| Length | 5.0000 |
| Length UOM | Inch |
| Width | 4.8000 |
| Width UOM | Inch |
| Height | 4.1000 |
| Height UOM | Inch |
| Weight | 2.630 |
| Weight UOM | Pounds |
| Size | 3/4 |
