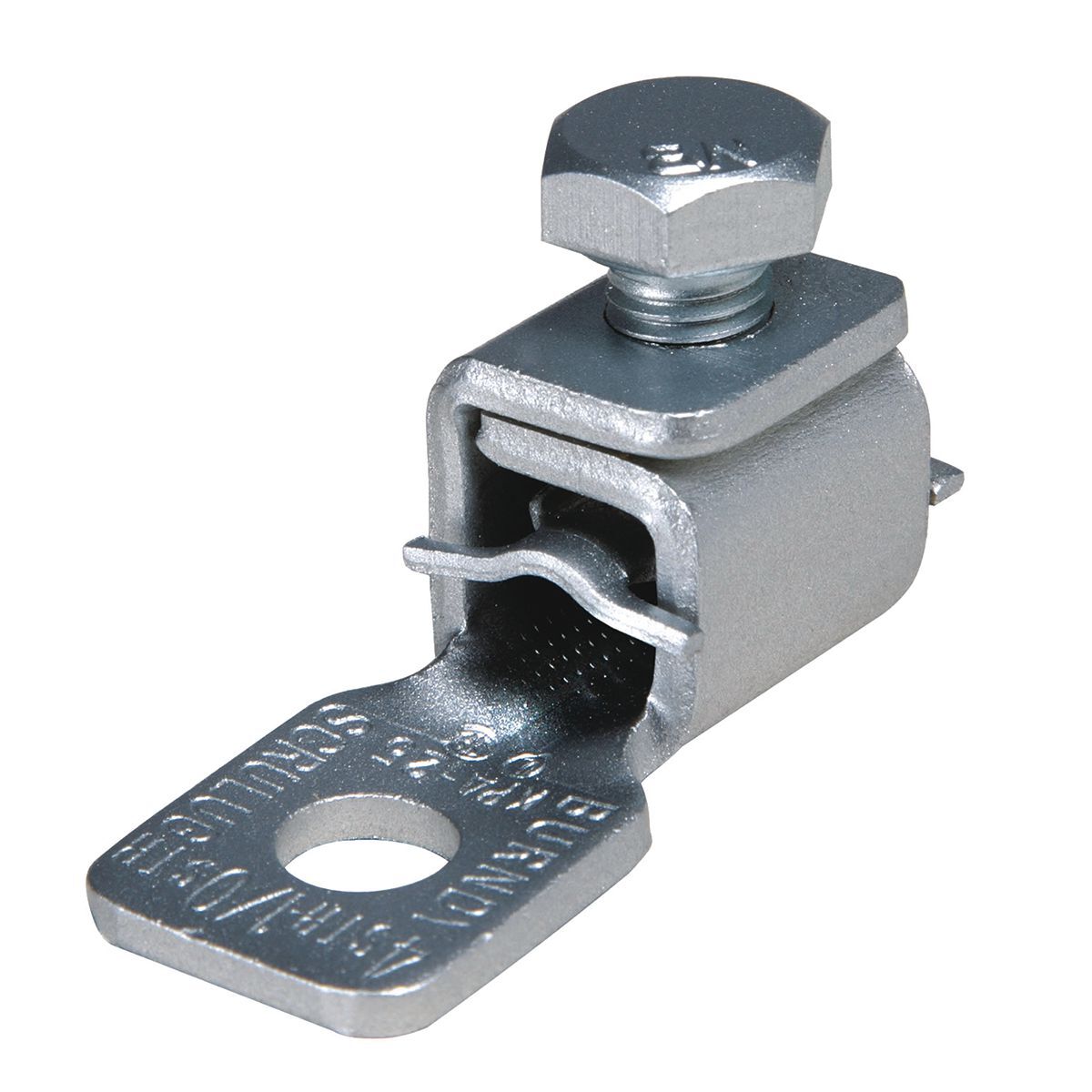

KPA34 Cable Terminal Lug, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Copper Alloy
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KPA34
- UPC:
- 781810356951
- Item #:
- 752424
KPA34 Cable Terminal Lug, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Copper Alloy
- MFR #:
- KPA34
- UPC:
- 781810356951
- Item #:
- 752424
Manuals & Documentation
| Catalog Number | KPA34 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Material | Copper |
| Special Features | Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Stud/bolt Size: 5/8 IN, Stud/bolt Hole Size: 1/2 IN, Set Screw Type: Hex Socket, Dimension N: 0.75 IN, Installation Torque: 375 IN-LB, Length: 3.14 IN, Width: 1.38 IN, Height: 2.44 IN, Tongue Width : 1.5 IN, Dimension D: 1.38 IN, Dimension K: 0.54 IN, Dimension T: 0.2 IN |
| Standard | UL 486A-486B |
| UPC | 781810356951 |
| GTIN | 00781810356951 |
| Item Type | Bolted Lugs & Terminals |
