ACME ELECTRIC

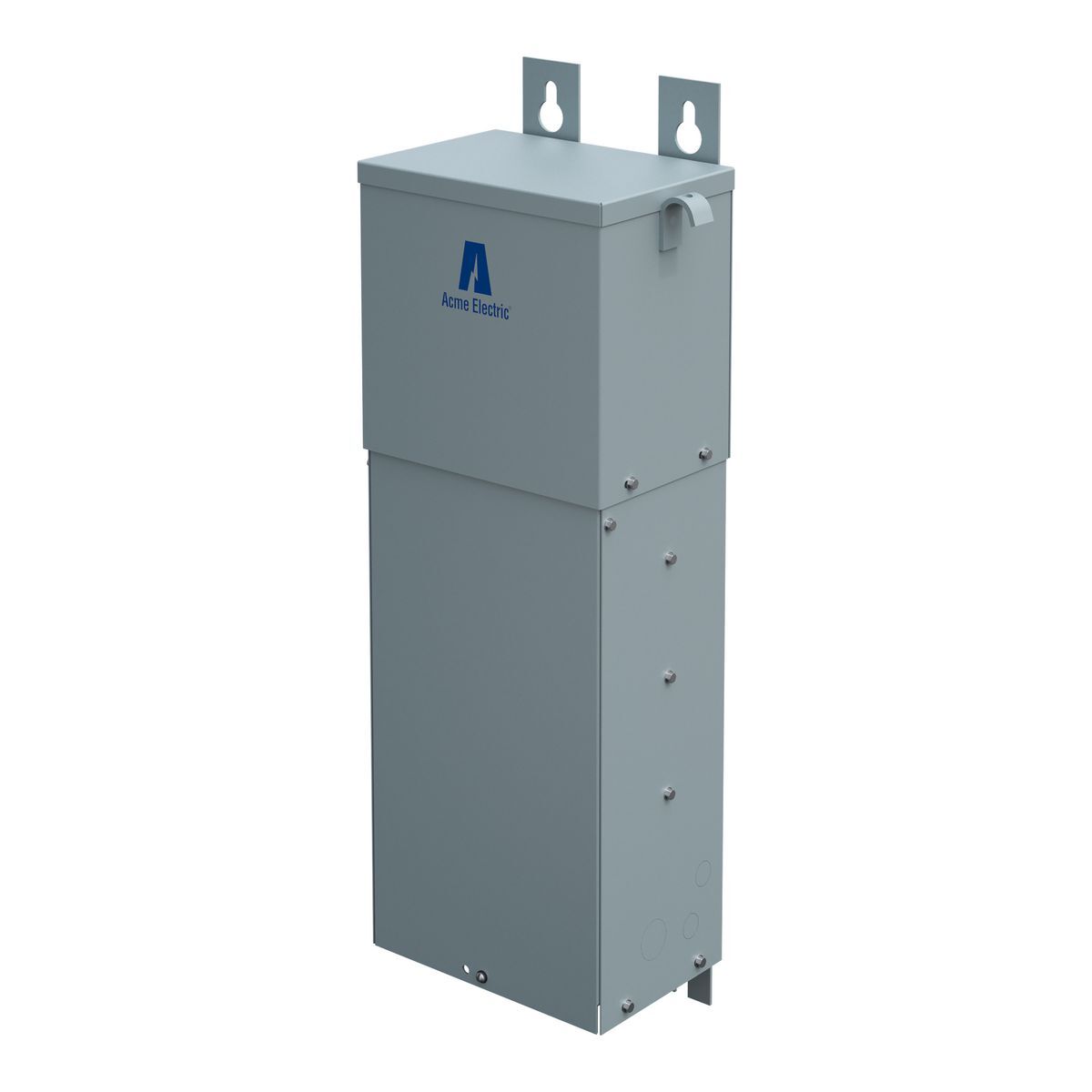

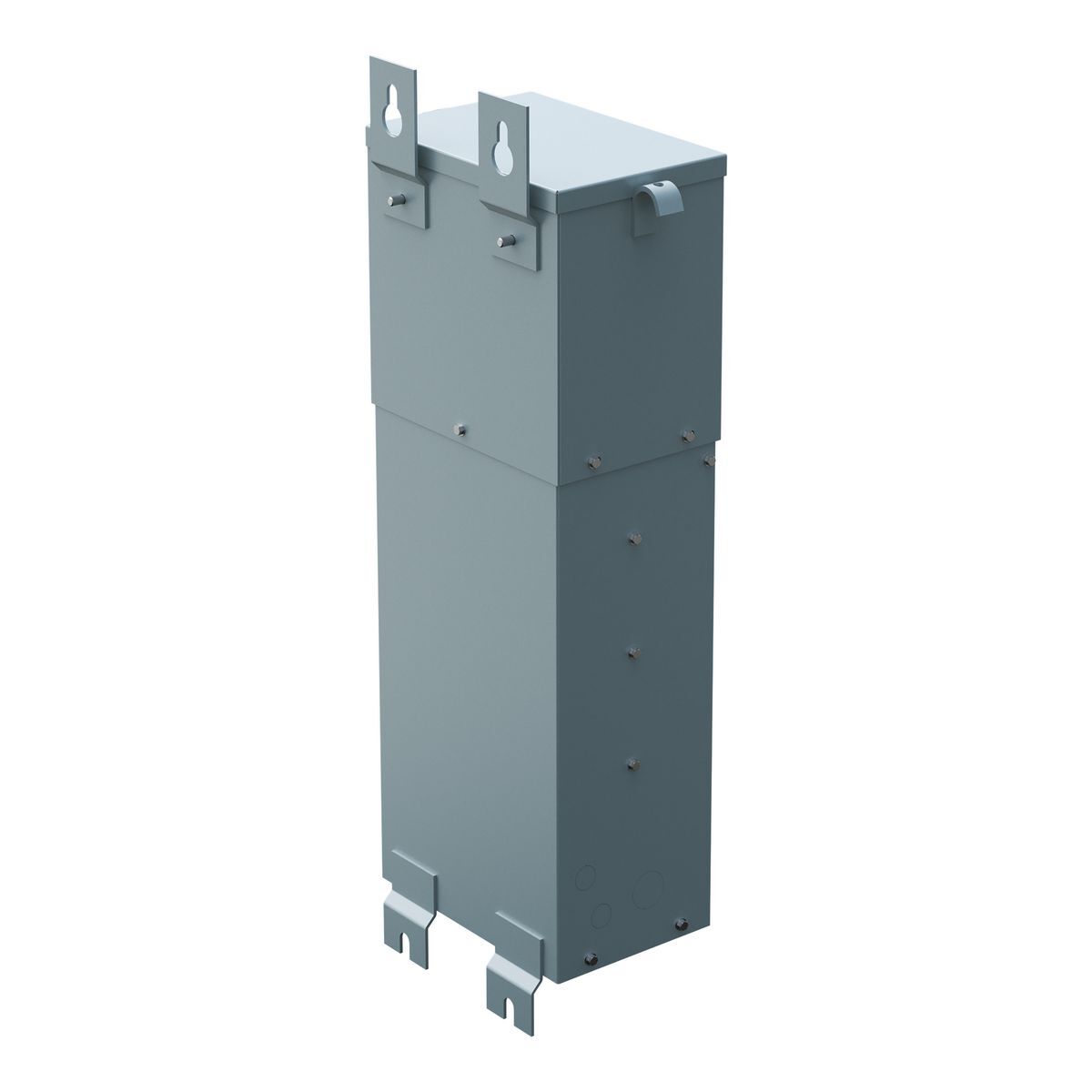

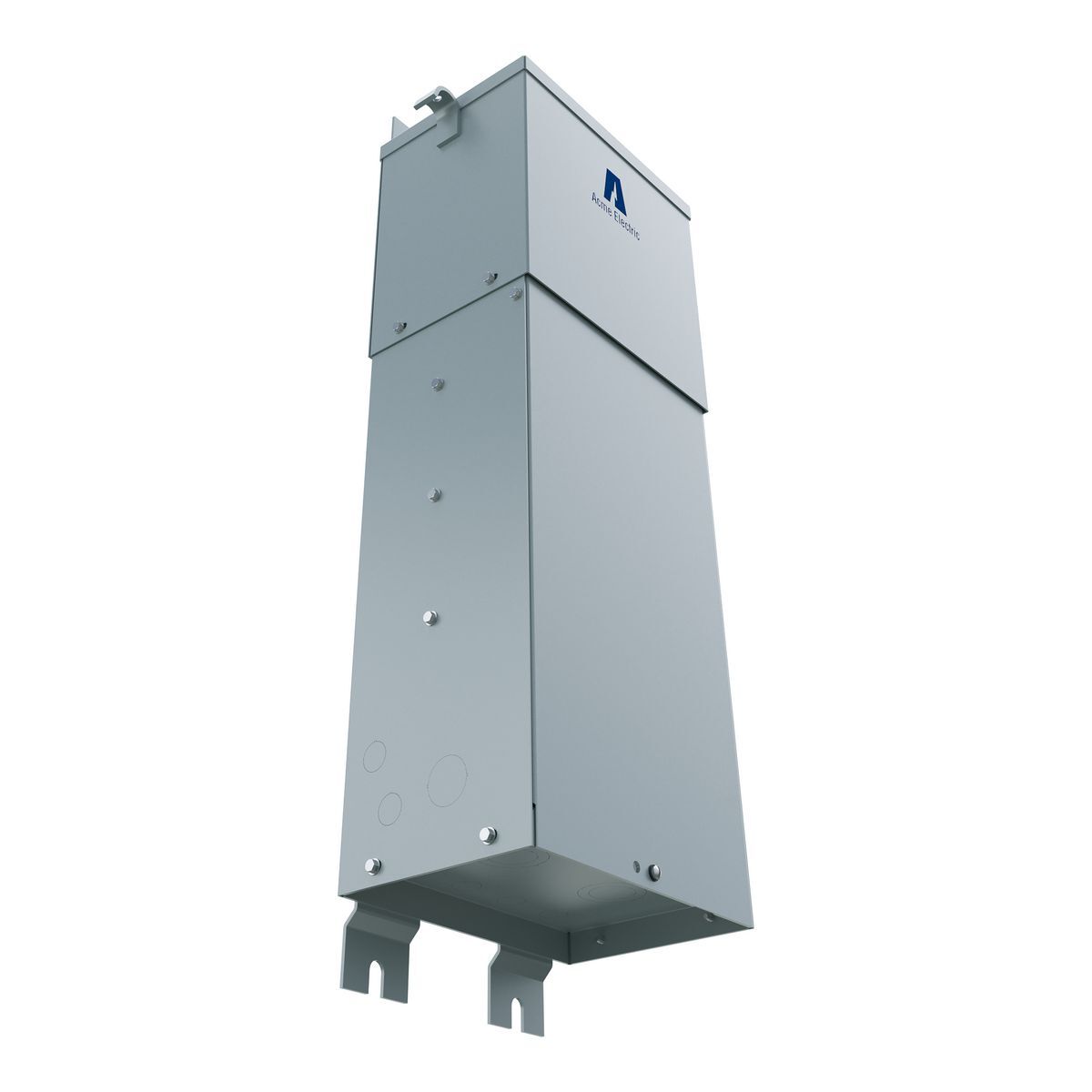

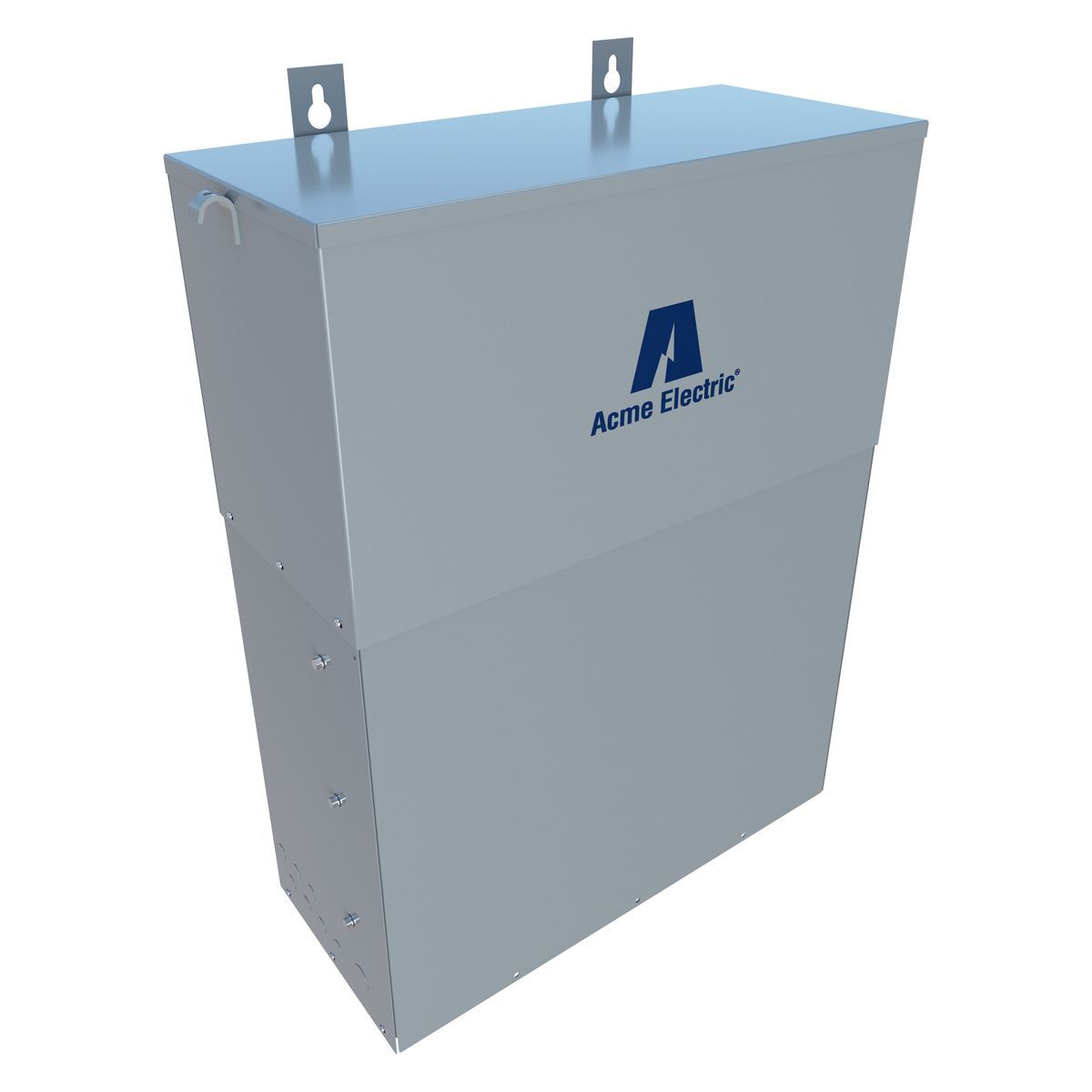

PT061150015LS Air Colled/Dry Zone Power Center Transformer, 480 V AC Primary, 120/240 VAC Secondary, 15 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
PT061150015LS
UPC:
047503330067
Item #:
747629
Manuals & Documentation
Catalog Number PT061150015LS
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin Mexico
Made in USA No
Enclosure NEMA 3R Steel
Frequency Rating 60 HZ
Mounting Wall
Primary Voltage 480 V
Secondary Voltage 120/240 V

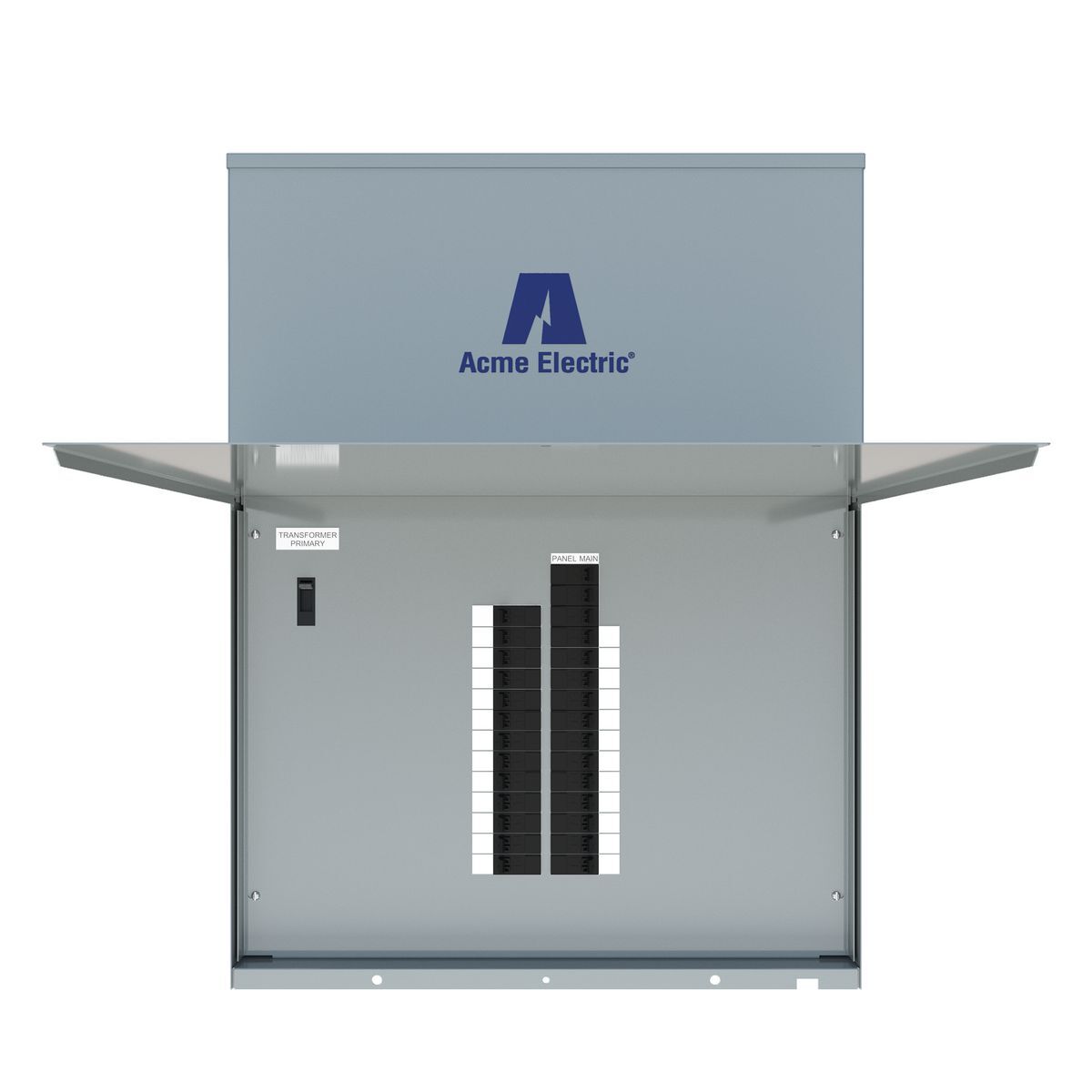

Special Features Zone power centers combine an Acme encapsulated distribution transformer with a power panel assembly in one convenient UL-3R enclosure, for indoor/outdoor use and is suitable for use as service entrance equipment; Acme’s Panel-Tran power center is a pre-wired combination of a primary breaker disconnect, dry-type shielded transformer, secondary breaker disconnect and a secondary power panel all in one convenient package; You save time, space and money by not having to individually assemble, mount and wire these components. Simply add the breakers of your choice and you’re ready to go; Primary and secondary main circuit breakers provided; Shielded for cleaner power; 10-year limited warranty
Standard UL 1062, UL File Number E56936V1, UL Insulation Number H3221, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503330067
GTIN 00047503330067
Item Type Zone Power Center
Length 12.38
Length UOM Inch
Width 17.13
Width UOM Inch
Height 34.38
Height UOM Inch
Temperature Rating 115 DEG C Rise
