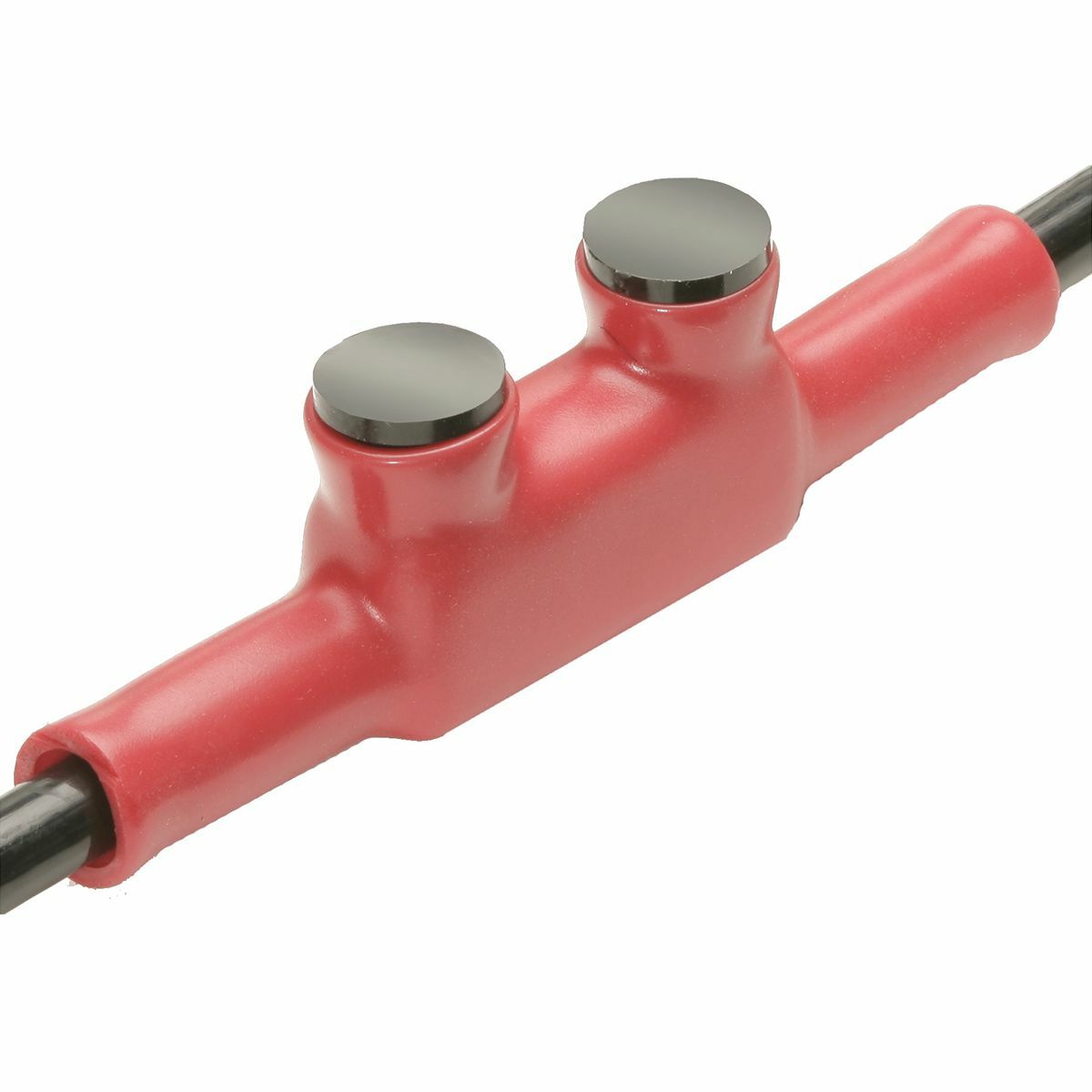

BISR4DB 2-Port Type BISR In-Line Splice/Reducer, 6 to 4 AWG Aluminum/Copper/Stranded Conductor, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BISR4DB
- UPC:
- 781810288054
- Item #:
- 745096
BISR4DB 2-Port Type BISR In-Line Splice/Reducer, 6 to 4 AWG Aluminum/Copper/Stranded Conductor, Aluminum
- MFR #:
- BISR4DB
- UPC:
- 781810288054
- Item #:
- 745096
Manuals & Documentation
| Catalog Number | BISR4DB |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Outside Direct Burial |
| Material | Aluminum |
| Special Features | Features: Designed Specifically For Direct Burial Applications, The Mole Inline Splice/Reducer Is Made With A Specialized Plastisol Material That Forms A Rugged Weathertight Connection, UL486D Listed For Direct Burial, AL9CU Dual-Rated For Copper And Aluminum Applications, 600V 90 Degrees C, Plastisol Covered Al6061-T6 AluminumBody Saves Time By Eliminating The Need For Heat Shrink, Oxide Inhibitor Pre-Installed Preventing Moisture And Contaminants From Entering Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, Wire Entry: In-Line, Torque: 50 IN-LB, Hex Size (key): 1/8 IN, Conductor Size (run - Range): 6 - 4 AWG, Wire Strip Length: 7/8 IN, Type Of Insulation: Plastisol, Number Of Ports: 2 |
| Standard | UL 486A-486B |
| UPC | 781810288054 |
| GTIN | 00781810288054 |
| Item Type | BISR |
| Temperature Rating | 90 Degrees C |
