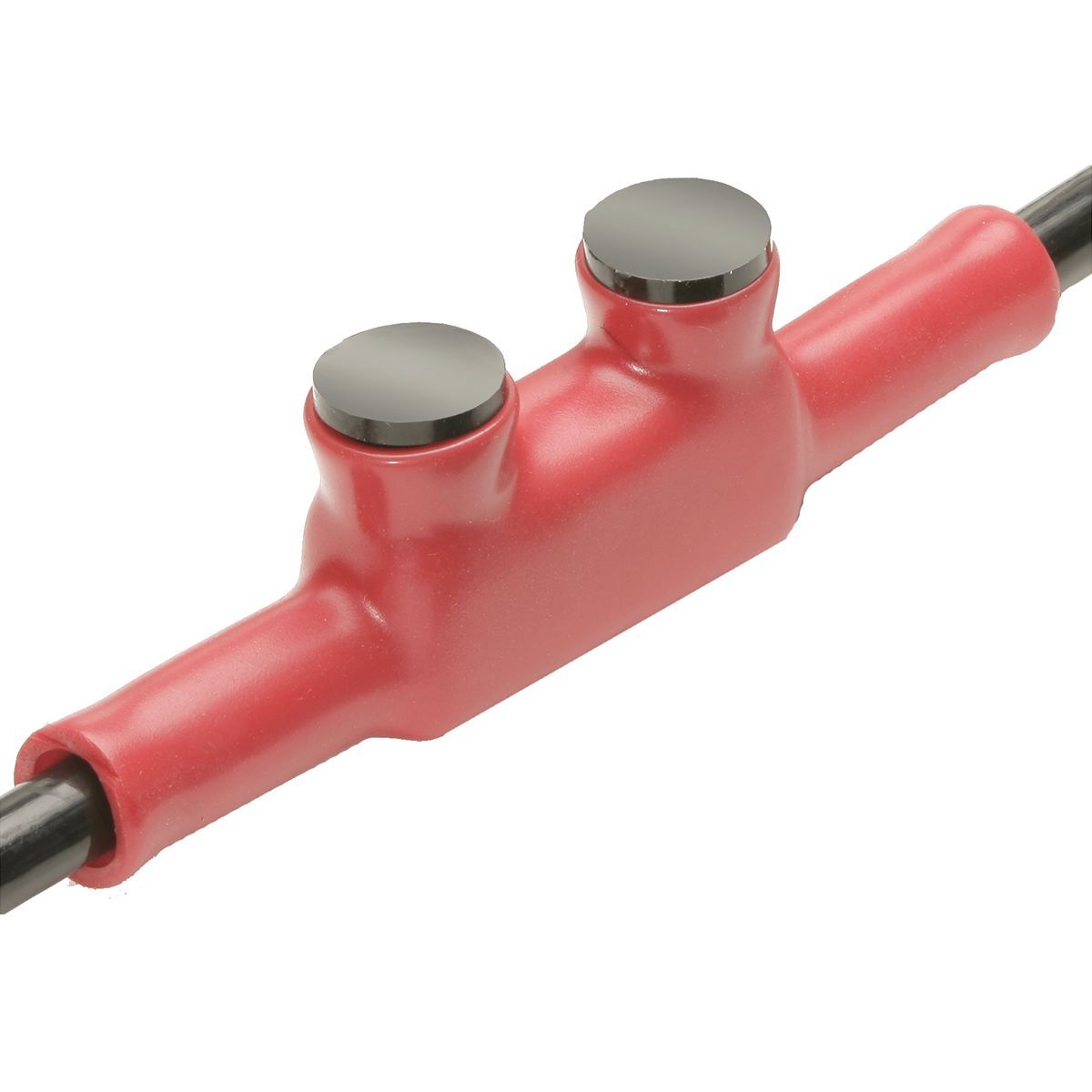

BISR1DB 2-Port In-Line Splice Reducer, 2 to 1 AWG Aluminum/Copper/Stranded Conductor, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BISR1DB
- UPC:
- 781810288047
- Item #:
- 745095
BISR1DB 2-Port In-Line Splice Reducer, 2 to 1 AWG Aluminum/Copper/Stranded Conductor, Aluminum
- MFR #:
- BISR1DB
- UPC:
- 781810288047
- Item #:
- 745095
Manuals & Documentation
| Catalog Number | BISR1DB |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Outside Direct Burial |
| Material | Aluminum |
| Special Features | Features: Designed Specifically For Direct Burial Applications, The Mole Inline Splice/Reducer Is Made With A Specialized Plastisol Material That Forms A Rugged Weathertight Connection, UL486D Listed For Direct Burial, AL9CU Dual-Rated For Copper And Aluminum Applications, 600V 90 Degrees C, Plastisol Covered Al6061-T6 AluminumBody Saves Time By Eliminating The Need For Heat Shrink, Oxide Inhibitor Pre-Installed Preventing Moisture And Contaminants From Entering Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, Wire Entry: In-Line, Torque: 130 IN-LB, Hex Size (key): 5/32 IN, Conductor Size (run - Range): 2 - 1 AWG, Type Of Insulation: Plastisol, Number Of Ports: 2, Wire Strip Length: 1-3/32 IN |
| Standard | UL 486A-486B |
| UPC | 781810288047 |
| GTIN | 00781810288047 |
| Item Type | BISR |
| Temperature Rating | 90 Degrees C |
