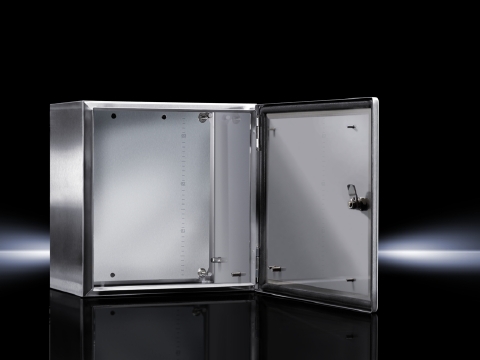

9402600 KE Series Enclosure With Hinged Door, 12 in L x 15 in W x 6.1 in D, NEMA 4X/IP66, Stainless Steel
- MFR:
- Rittal
- MFR #:
- 9402600
- UPC:
- 639889158405
- Item #:
- 744843
9402600 KE Series Enclosure With Hinged Door, 12 in L x 15 in W x 6.1 in D, NEMA 4X/IP66, Stainless Steel
- MFR #:
- 9402600
- UPC:
- 639889158405
- Item #:
- 744843
Ex enclosures, Stainless steel, empty enclosure with hinged door, material: Enclosure: Stainless steel 1.4301 (AISI 304), Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal, Mounting plate: Sheet steel, surface: Enclosure: Brushed, grain 240, Mounting plate: Zinc-plated, supply includes: Enclosure, Door, Mounting plate, description: Ex enclosure with hinged door, stainless steel
Manuals & Documentation
Features
- Size: 15 Inch Width x 6.100 Inch Depth x 11.800 Inch Height
- Right hand hinge
- Quarter turn latch w/ double bit insert
- Number of cam 1
- Mounting plate: 334 mm Width x 275 mm Height
| Catalog Number | 9402600 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Industrial |
| Insulation | Foamed-in Silicone Seal |
| Material | Stainless Steel |
| Mounting | Wall |
| Special Features | Features: Cam Lock with 3 MM Double-Bit Insert, Equipment Protection |
| Standard | ATEX, IEC |
| RoHS Indicator | Under Review |
| UPC | 639889158405 |
| GTIN | 00639889158405 |
| Item Type | Compact Enclosure |
| Length | 12.6770 |
| Length UOM | Inch |
| Width | 15.4330 |
| Width UOM | Inch |
| Height | 6.6930 |
| Height UOM | Inch |
| Weight | 18.849 |
| Weight UOM | Pounds |
| Size | 12 (H) x 15 (W) x 6.1 (D) |
