Discontinued

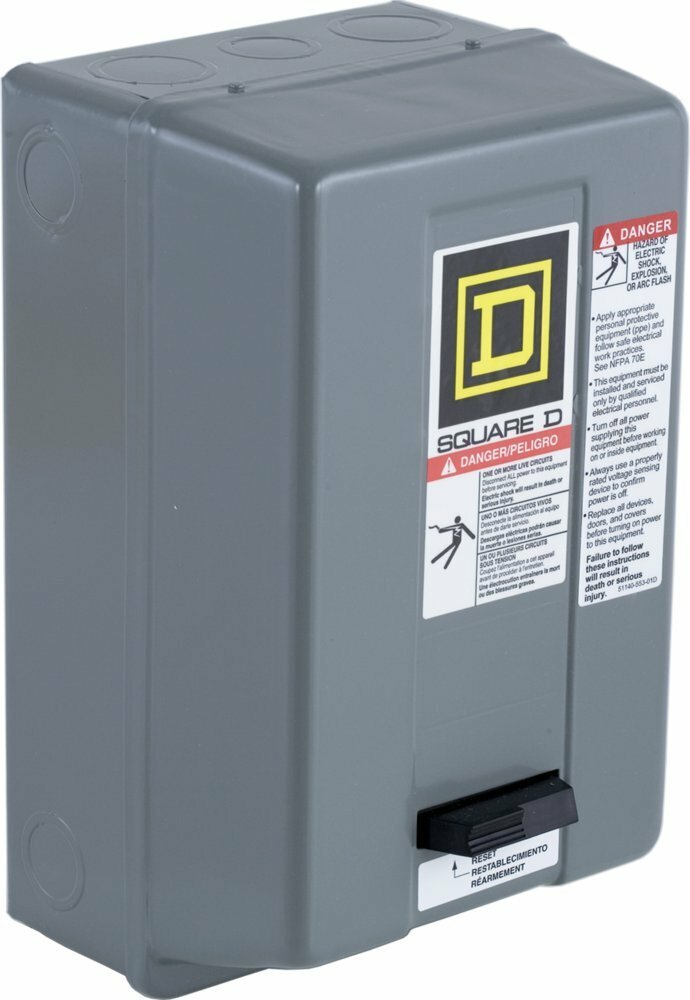

8536SBG3V06 Type S Magnetic Starter, 440 V AC at 50 Hz/480 V AC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SBG3V06
- UPC:
- 785901018926
- Item #:
- 74370
Discontinued
8536SBG3V06 Type S Magnetic Starter, 440 V AC at 50 Hz/480 V AC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
- MFR #:
- 8536SBG3V06
- UPC:
- 785901018926
- Item #:
- 74370
Non-Reversing Starter Size 0, 4-Pole, Melting Alloy Overload, NEMA 1
| Catalog Number | 8536SBG3V06 |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| Connection | SCREW CLAMP TERMINALS |
| Number of Poles | 4 |
| Power Supply | 480VAC@60HZ - 440VAC@50HZ |
| Reset Type | MELTING ALLOY 2 THERMAL UNITS |
| Special Features | SCREW CLAMP TERMINALS |
| Standard | NEMA-UL LISTED-CSA |
| UPC | 785901018926 |
| GTIN | 00785901018926 |
| Item Type | NO CONTROL UNITS,STARTER |
| Size | 141 MM,152 MM,254 MM |
| Voltage Rating | 600 V AC |
