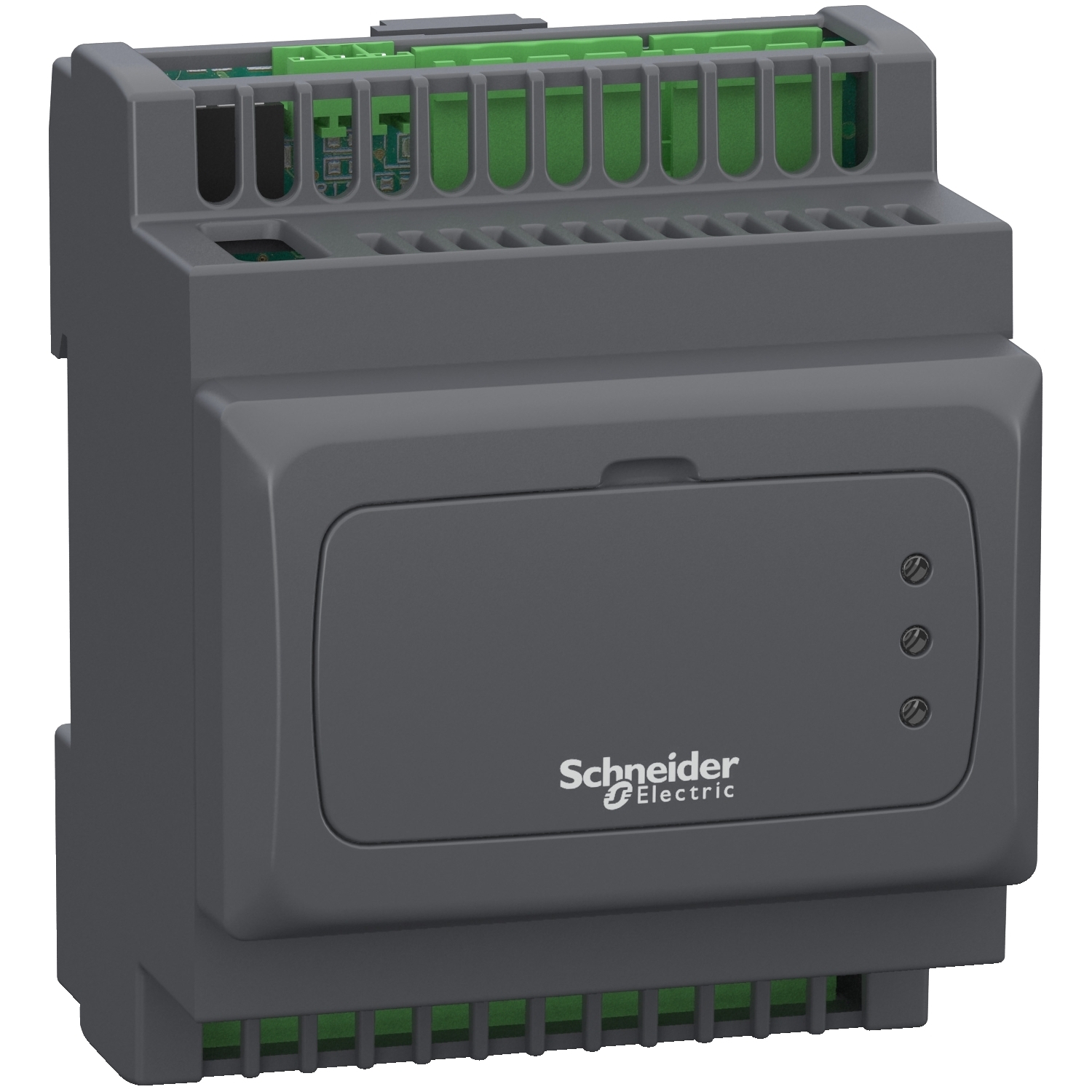

This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 4 discrete inputs with sink or source (positive/negative) discrete input logic. It is a module with discrete input voltage of 24V AC/DC and analogue output voltage ranges from 0V to 10V. This module offers SPDT relay output with independent common and 3 SPST relay output with same common discrete output. The main application of this module is HVAC and pumping solution. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Manuals & Documentation
Catalog Number TM171EP14R
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Italy
Made in USA No
Application HVAC and pumping solution
Input 24 V AC/DC;20; voltage 0...5 V ratiometric); current 4...20 mA; voltage 0...10 V;NTC temperature probe - 50...110 Degrees C 0.1 Degrees C;NTC temperature probe - 40...137 Degrees C 0.1 Degrees C extended);PTC temperature probe - 50...150 Degrees C 0.1 Degrees C;Sink or source (positive/negative)
Output 3 A relay
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=424959098&lang=en-us
GTIN 03606480752704
Item Type Additional I/O module
