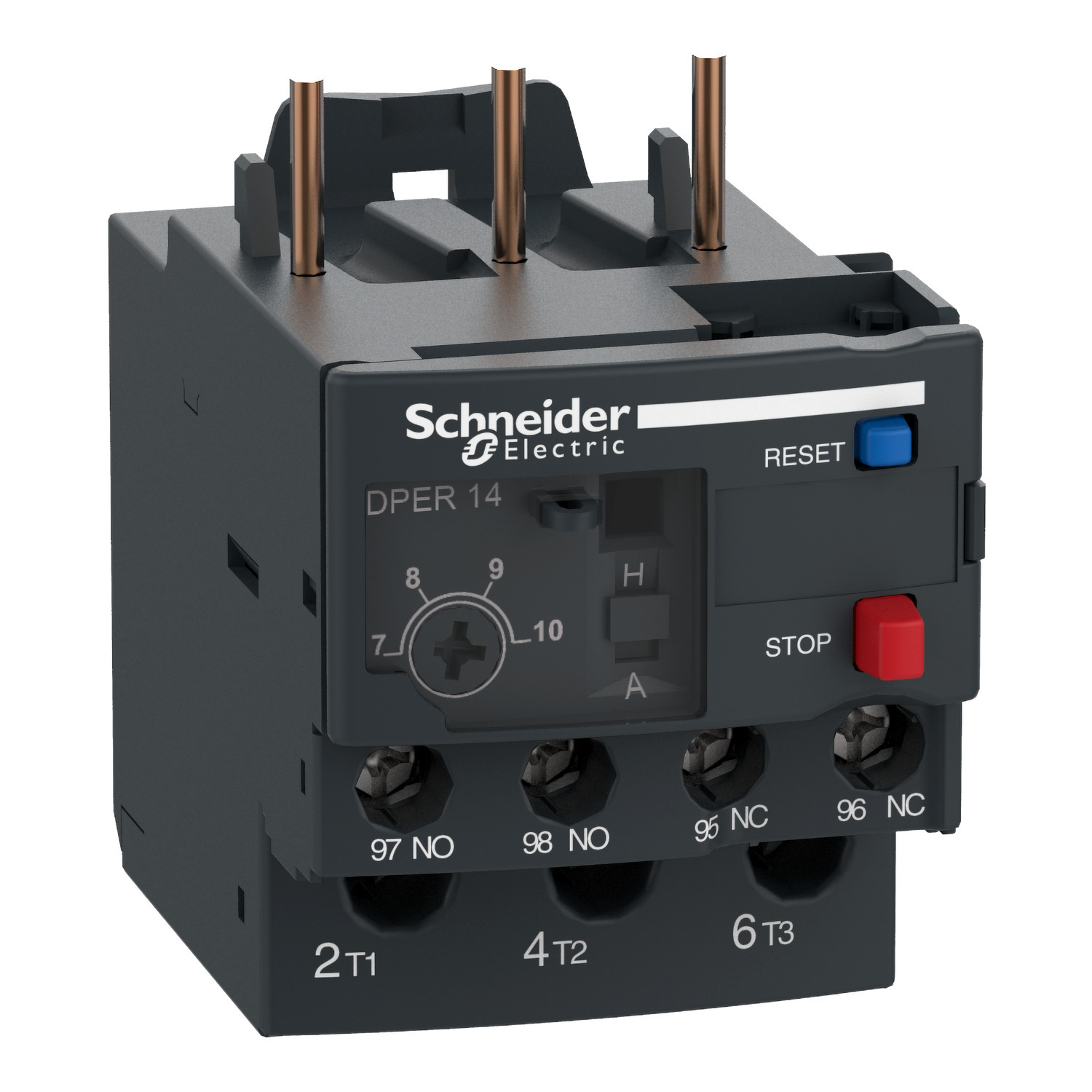

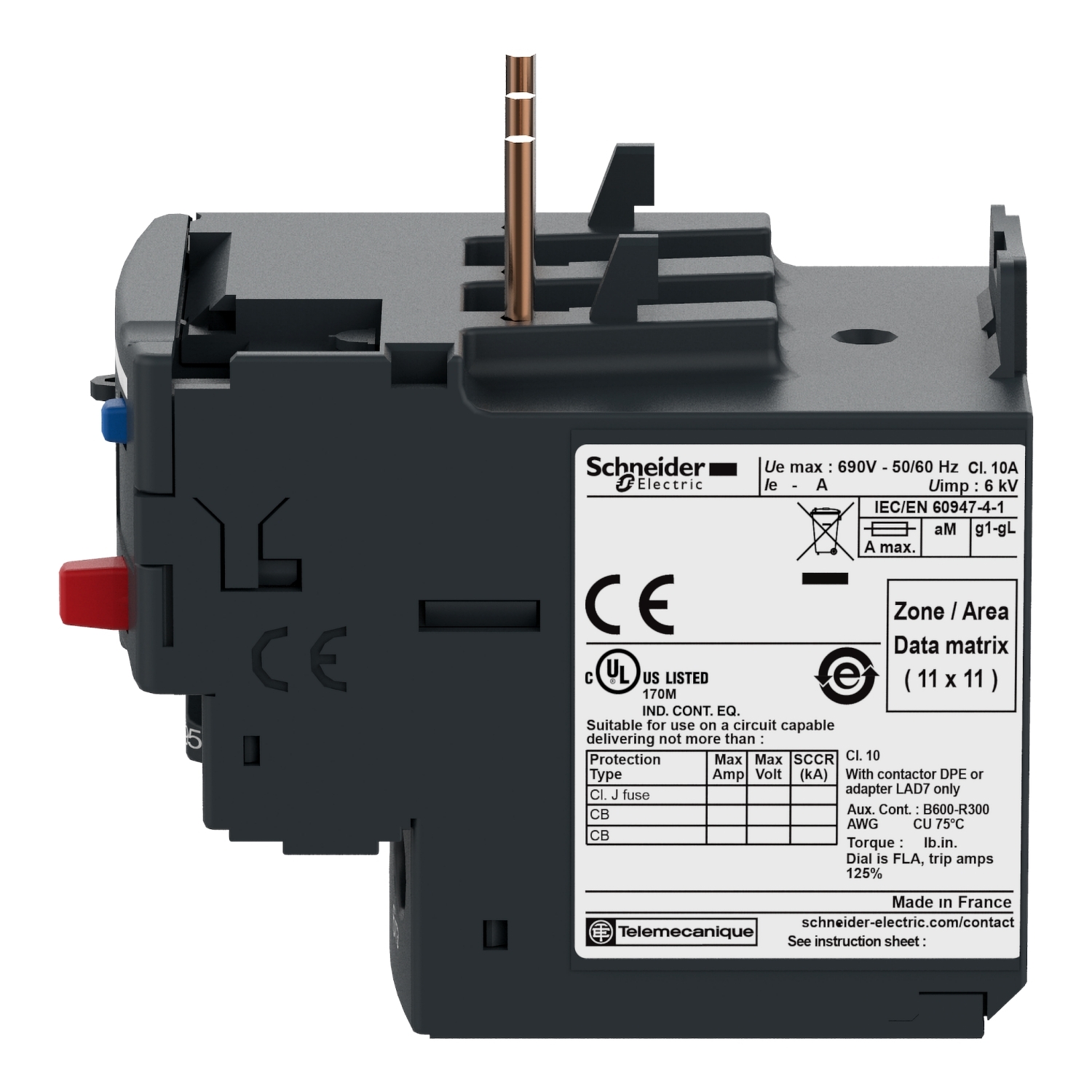

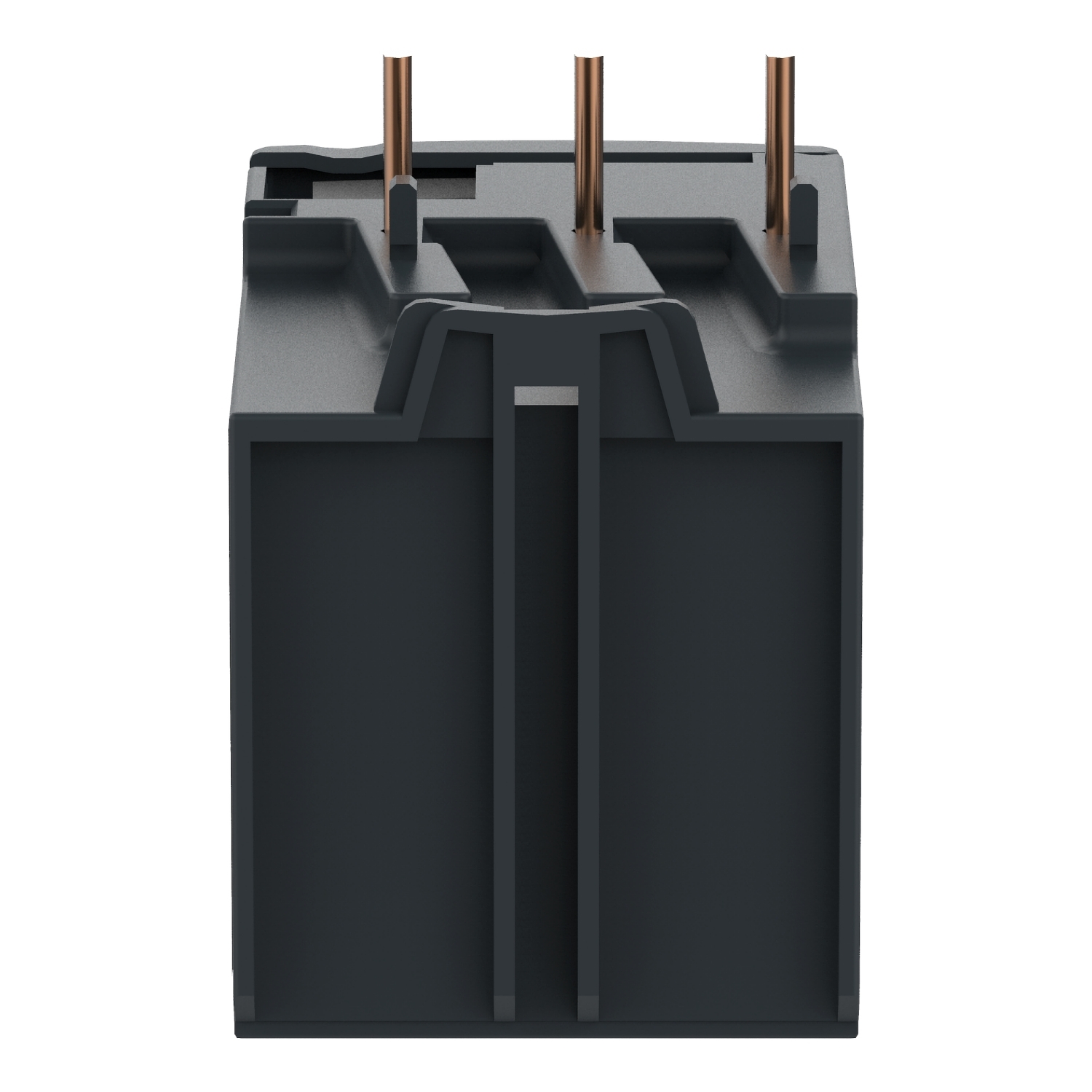

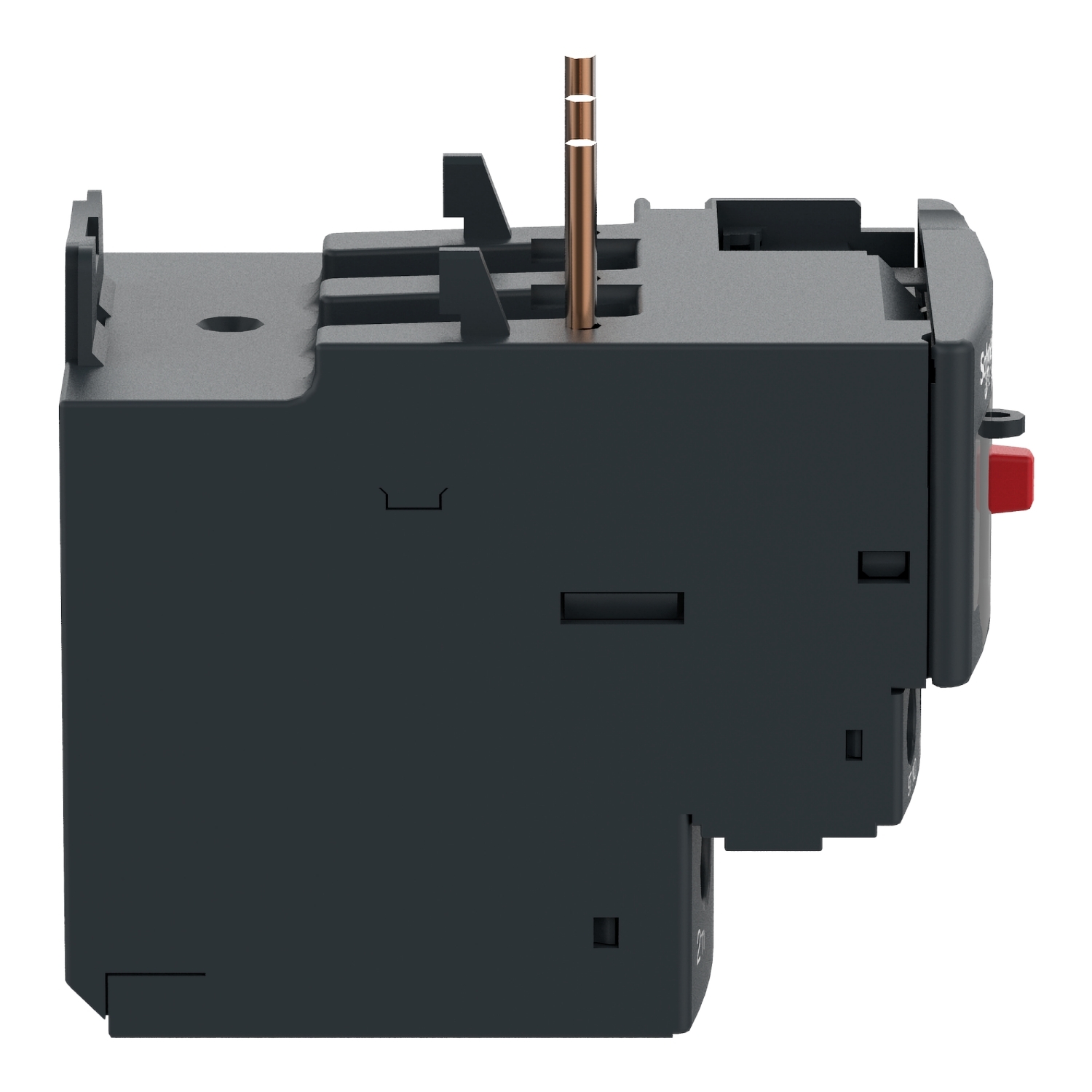

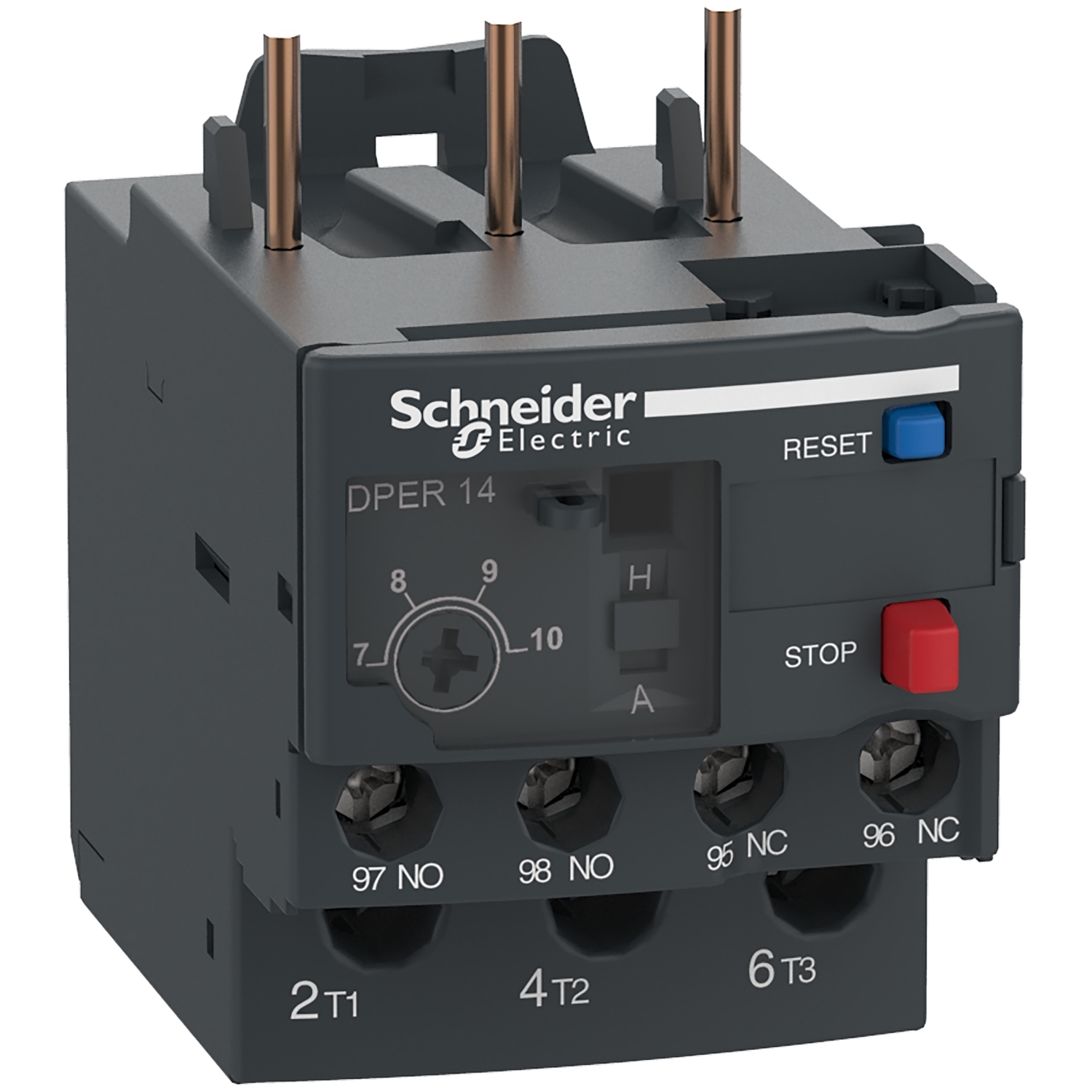

Easy TeSys DPER thermal overload relay, 10A/690V, thermal setting range 7-10A, tripping class 10, for protection of 3-phase motors 4kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE09-D38. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (CSA, UL).

Manuals & Documentation
Catalog Number DPER14
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=605094&lang=en-us
GTIN 03389118338838
Width 1.77170
Width UOM Inch
Height 2.59840
Height UOM Inch
Depth 2.75590 IN
