SQUARE D

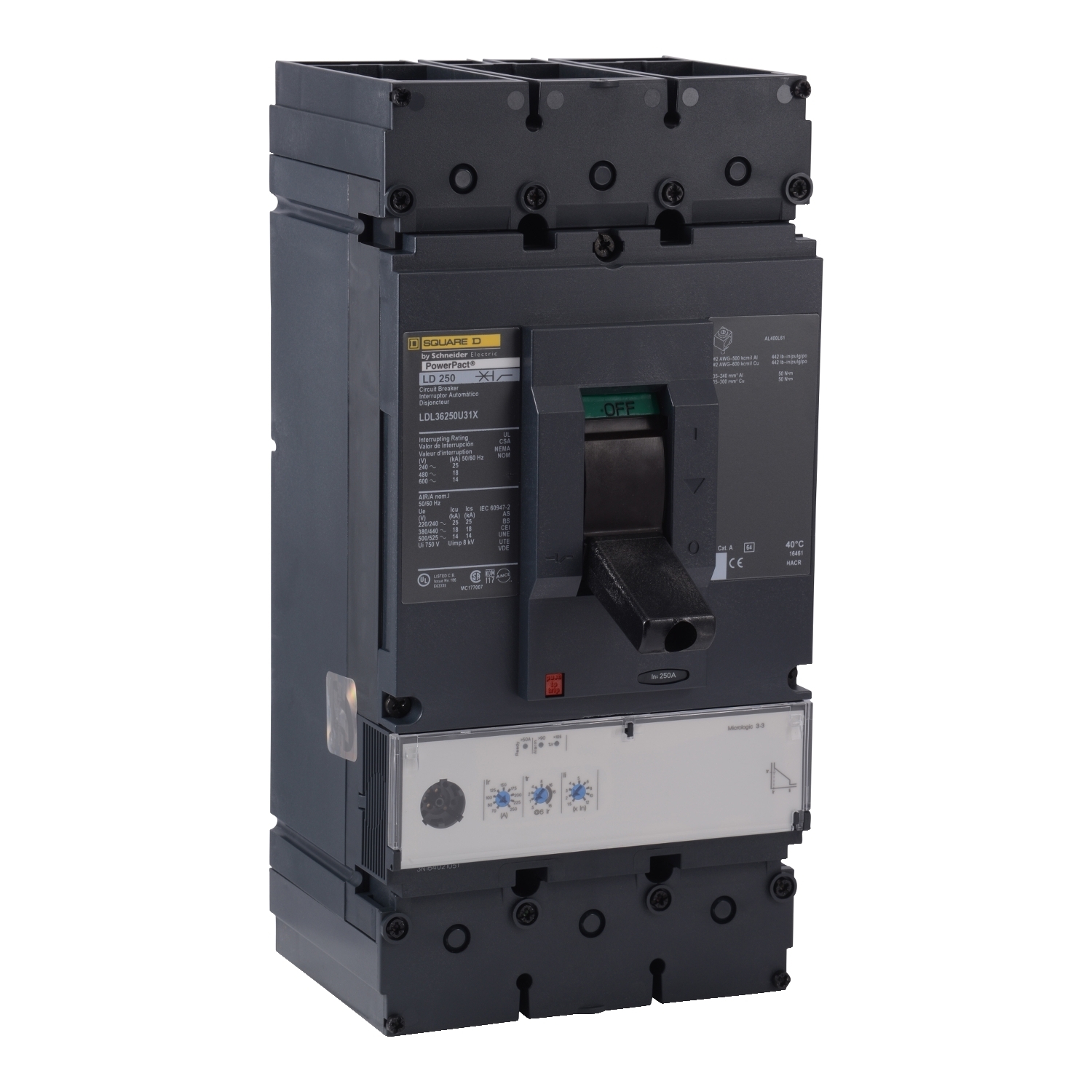

LDL36250U31X PowerPact Current Limiter Standard L Molded Case Circuit Breaker, 600 VAC, 250 A, 14/18/25 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
LDL36250U31X
UPC:
785901978398
Item #:
740520

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number LDL36250U31X
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Color Black
Connection Lugs, line;lugs, load; AWG 2...600 kcmil copper; AWG 2...500 kcmil aluminium
Control Toggle
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980540&lang=en-us
UPC 785901978398
GTIN 00785901978398
