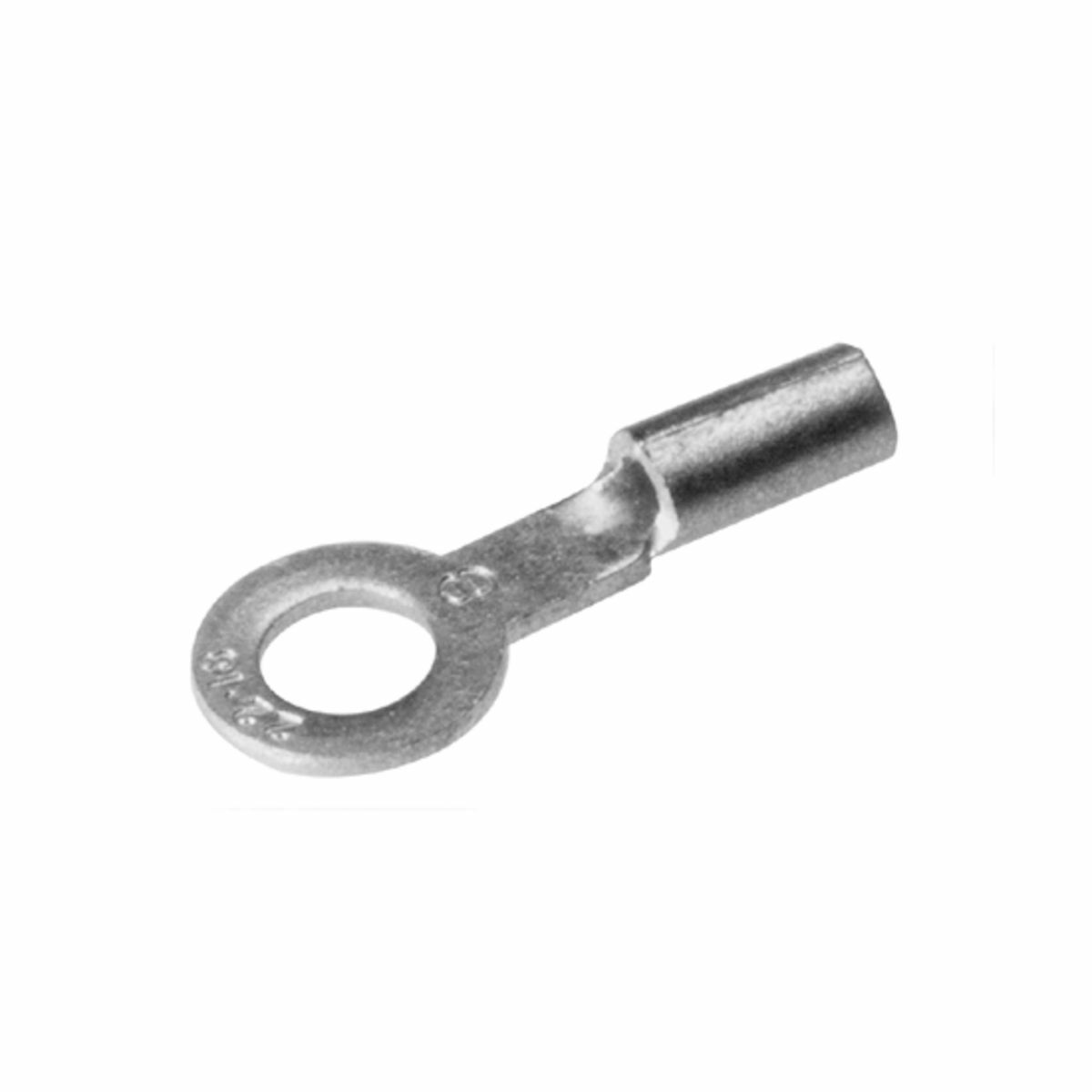

T1010 HYLUG Type T Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 0.83 in L, Long Barrel, ETP Copper Contact
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- T1010
- UPC:
- 781810722084
- Item #:
- 740471
T1010 HYLUG Type T Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 0.83 in L, Long Barrel, ETP Copper Contact
- MFR #:
- T1010
- UPC:
- 781810722084
- Item #:
- 740471
Manuals & Documentation
| Catalog Number | T1010 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Control Wiring And Other Standard Duty Applications |
| Material | Carbon Steel |
| Special Features | Features: The Type T Uninsulated Terminals Are Constructed Of Pure Electrolytic Copper, Designed With A Long Brazed Seam Barrel, Standard Neck, Deep V Groove Inner Serrations And Electro-Tin Plated, The Terminals Are Ideal For Control Wiring And Other Standard Duty Applications, The Ring Tongue Provides A Secure Termination Under The Screw Head That Cannot Be Removed Without The Complete Removal Of The Screw, Two Or More Terminals Can Easily Be Stacked On A Common Stud, Constructed Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Long Brazed Seam Barrel And Deep V Groove Inner Serrations: Provides Optimum Conductivity Reliability And Holding Power After Crimping, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Wire Range Is Clearly Marked On Terminal: Provides Easy Identification, Inspection Hole: Provides An Easy Visual Check Of Wire Insertion, Long Neck Terminal: Permits Easy Bending And Stacking Of Several Terminals On A Common Stud, Tape Mounted Catalog Number: YAD10-10M, Bulk Catalog Number: YAD10-10, Wire Strip Length: 11/32 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98 Tool |
| Standard | UL467 |
| UPC | 781810722084 |
| GTIN | 00781810722084 |
| Item Type | Ring Tongue |
| Cross Reference Products | C10-10 |
