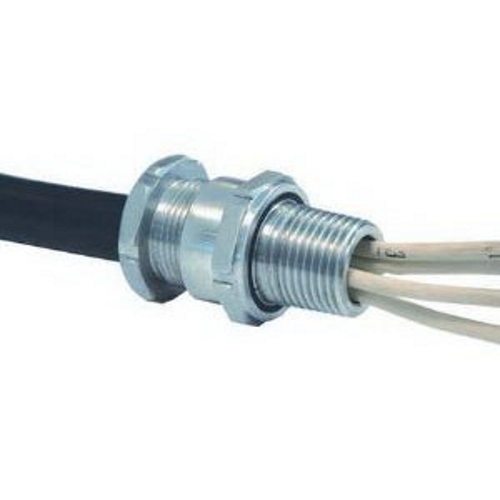

Cable Connector; 1/2 Inch, 0.130 - 0.280 Inch No Insert, Copper Free Aluminum
- MFR:
- Appleton Electric
- MFR #:
- TC050028
- UPC:
- 781381246231
- Item #:
- 737975
Cable Connector; 1/2 Inch, 0.130 - 0.280 Inch No Insert, Copper Free Aluminum
- MFR #:
- TC050028
- UPC:
- 781381246231
- Item #:
- 737975
Appleton TC Series Cable Connector, Size: 1/2 IN, Conductor Range: 0.13 - 0.28 IN, Material: Copperfree (4/10 of 1 PCT Maximum) Aluminum, Enclosure: IP66, IP67, IP68, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Di
Manuals & Documentation
| Catalog Number | TC050028 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | India |
| Made in USA | No |
| Application | For Tray Cable |
| Conductor Range | 0.13 - 0.28 IN |
| Connection | NPT |
| Enclosure | IP66, IP67, IP68 |
| Material | Copperfree (4/10 of 1 PCT Maximum) Aluminum |
| NEMA Rating | 4X |
| Special Features | The unique use of the seal insert, enables each gland size to terminate the widest range available in a single hub size; Jacket sealing technique: compensating displacement seal; Sealing areas - cable outer jacket |
| Standard | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups E, F, G, Class III, Division 2, Design specification: BS 6121:Part 1989, UL 514B, 2225, CSA 22.2 No. 30, C/US CSA E60079-0, CAN/CSA E60079-7, ATEX Certification/Code Of Protection Category: SIRA09ATEX1092X, ATEX II 2 GD, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, IECEx Approval, Number/Code Of Protection Category: IECEx SIR 09.0042X Exd IIC Gb, Exe IIC Gb, Exta IIIC Da, CCSAUS Certification Number: CSA.09.2220601X |
| UPC | 781381246231 |
| GTIN | 00781381246231 |
| Item Type | TC Series Cable Connector |
| Size | 1/2 |
| Temperature Rating | -60 To 110 DEG C |
