Appleton

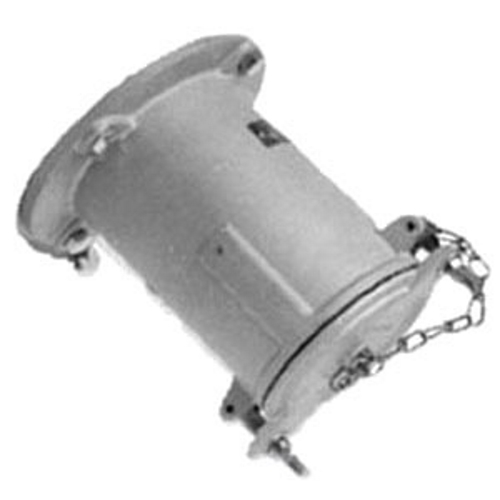

Powertite; Grounding Style 2 Receptacle; 200 Amp, 600 Volt AC/250 Volt DC, 4-Pole, 3-Wire, Pressure Wire Terminal

MFR:
Appleton Electric
MFR #:
AR20034
UPC:
781381131568
Item #:
73686

Powertite Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maxi

Manuals & Documentation
Catalog Number AR20034
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 200
Application For AP20034CD And AP20034E Plugs
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Receptacle meets NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or clamp cover installed with wing nuts fully tightened; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Weatherproof spring door, raintight clamp cover
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381131568
GTIN 00781381131568
Item Type Grounding Style 2 Receptacle
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2/0 AWG - 250 MCM
