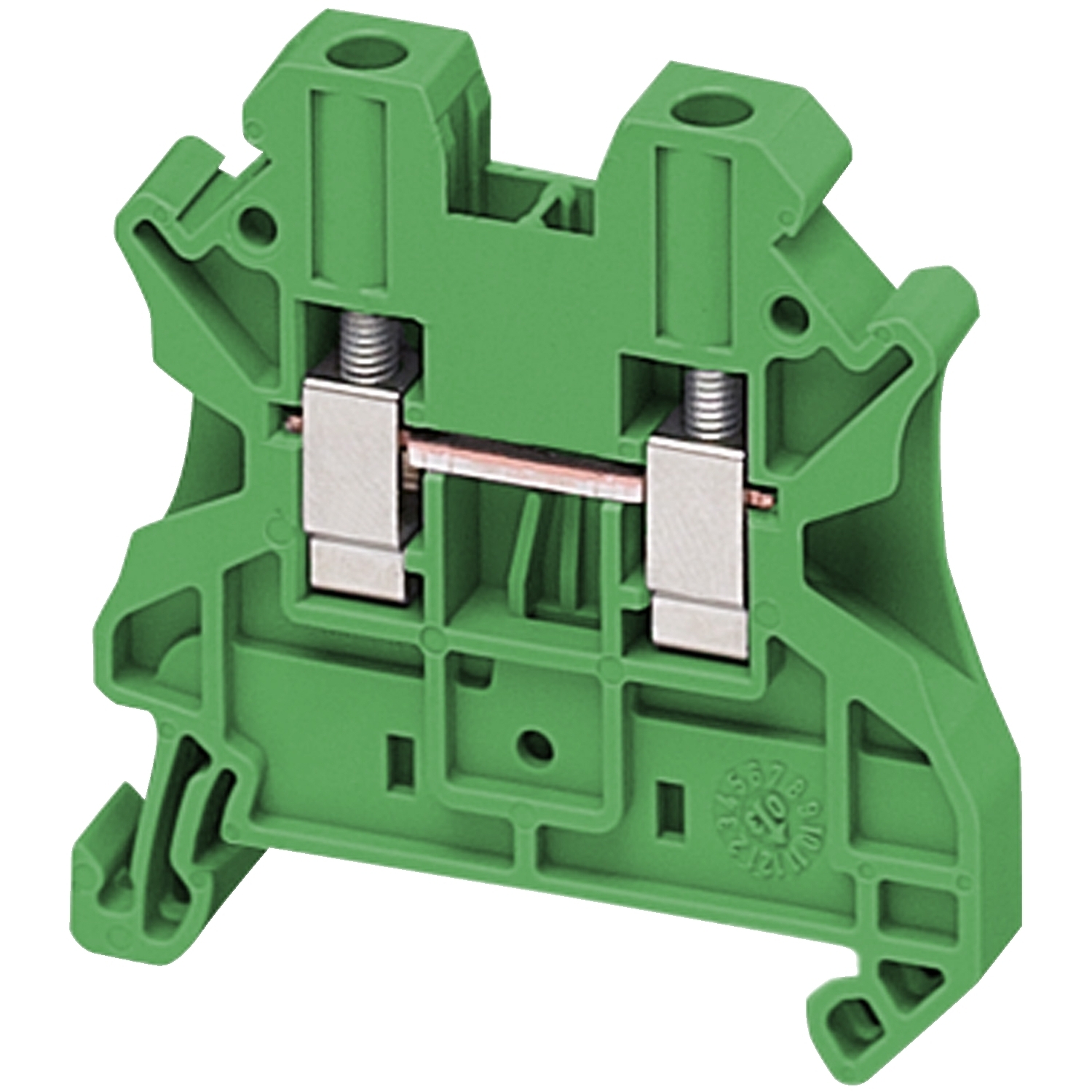

NSYTRV42GN Linergy TRV 1-Level 2-Point Feed Through Terminal Block, 600/690/1000 V AC, 30/32 A, 0.14 to 6 sq-mm Wire, 1 Poles, DIN Rail Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV42GN
- Item #:
- 736692
NSYTRV42GN Linergy TRV 1-Level 2-Point Feed Through Terminal Block, 600/690/1000 V AC, 30/32 A, 0.14 to 6 sq-mm Wire, 1 Poles, DIN Rail Mount
- MFR #:
- NSYTRV42GN
- Item #:
- 736692
SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MM , GREEN
Manuals & Documentation
| Catalog Number | NSYTRV42GN |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Green |
| Connection | 1 x screw terminal upstream M3);1 x screw terminal downstream M3) |
| Material | Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403763681&lang=en-us |
| GTIN | 03606480531927 |
| Item Type | Passthrough;Terminal block;Spacial enclosures |
