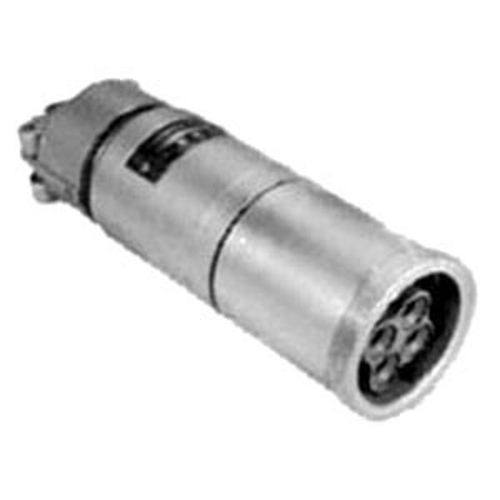

3-Pole Connector Body, 600 VAC, 250 VDC @ 50-400 Hz, 100 A, 3-Wire
- MFR:
- Appleton Electric
- MFR #:
- ARC1033CD
- UPC:
- 781381440493
- Item #:
- 73488
3-Pole Connector Body, 600 VAC, 250 VDC @ 50-400 Hz, 100 A, 3-Wire
- MFR #:
- ARC1033CD
- UPC:
- 781381440493
- Item #:
- 73488
Powertite Grounding Style 1 Connector Body, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Materia
Manuals & Documentation
| Catalog Number | ARC1033CD |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | For ACP1033CD Clamping Ring Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.391 IN |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381440493 |
| GTIN | 00781381440493 |
| Item Type | Grounding Style 1 Connector Body |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex) |
