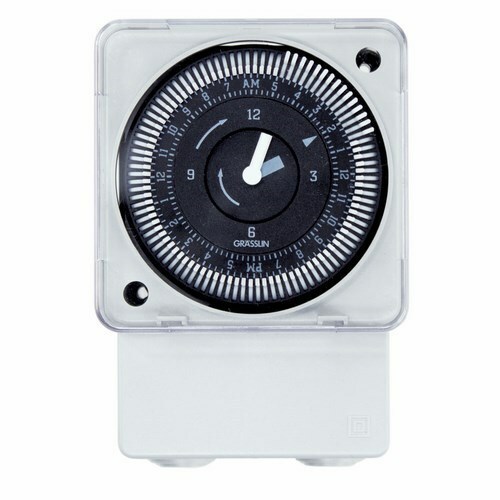

MIL72ASTUZ-120 Grasslin Electromechanical Time Switch, 15 min to 24 hr Setting, 120 V AC, 1 hp, 2 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- MIL72ASTUZ-120
- UPC:
- 078275153349
- Item #:
- 734110
MIL72ASTUZ-120 Grasslin Electromechanical Time Switch, 15 min to 24 hr Setting, 120 V AC, 1 hp, 2 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR #:
- MIL72ASTUZ-120
- UPC:
- 078275153349
- Item #:
- 734110
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
Manuals & Documentation
| Catalog Number | MIL72ASTUZ-120 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | SPDT |
| Application | General Purpose, Agricultural Facilities, Commercial, Lighting Control, HVACR, Pumps, Motors, Fan Controls, Access Controls, OEM, Indoor/Outdoor, HVACR |
| Connection | Screw Terminal |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 21 AMP @ 120 - 250 VAC |
| Mounting | Din Rail |
| Number of Poles | 1 |
| Special Features | Features: Synchronous drive or quartz drive with battery backup, Available with or without override, True clock face, easy to set, Surface/DIN Rail or Flush Mount, Clear plastic dust-cover |
| Standard | CE, cCSAus Certified, cULus Listed, HVACR, Title CA 20 Listed |
| UPC | 078275153349 |
| GTIN | 00078275153349 |
| Item Type | Electromechanical |
| Size | 2.83 LENGTH X 2.06 WIDTH X 4.0 HEIGHT IN, 72 LENGTH X 52 WIDTH X 102.5 HEIGHT MM |
| Environmental Conditions | 0 - 95 RH Non-Condensing |
| Operating Temperature | -40 to +185 DEG F, -40 to +85 DEG C |
| Timing Range | 15 MIN - 24 HR |
| Voltage Rating | 120 |
| Wattage | 1350 W |
