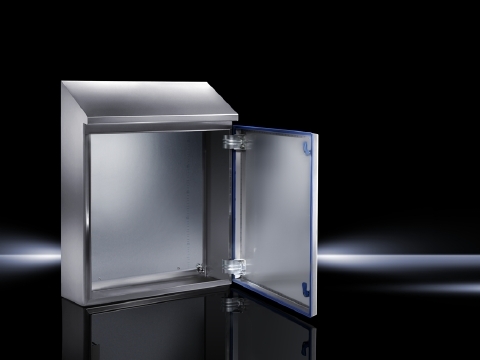

1310600 HD Series Hygienic Compact Enclosure, 30 in H x 24 in W x 8.3 in D, Hinged Cover, NEMA 13/4X/IP66/69K NEMA Rating, Stainless Steel
- MFR:
- Rittal
- MFR #:
- 1310600
- UPC:
- 639889860926
- Item #:
- 733748
1310600 HD Series Hygienic Compact Enclosure, 30 in H x 24 in W x 8.3 in D, Hinged Cover, NEMA 13/4X/IP66/69K NEMA Rating, Stainless Steel
- MFR #:
- 1310600
- UPC:
- 639889860926
- Item #:
- 733748
Hygienic Design, Compact enclosure HD, material: Enclosure and door: Stainless steel 1.4301 (AISI 304), Mounting plate: Sheet steel, Lock inserts HD: Stainless steel 1.4404 (AISI 316L), Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600, surface: Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 m, Mounting plate: Zinc-plated, Seal: Blue, dyed (RAL 5010), supply includes: Enclosure of all-round solid construction, Door with press-fitted seal, Interchangeable door hinge, Mounting plate, description: Enclosure with 30 deg roof tilt. Interior hinges, an all-round gap-free silicone seal and hygiene-compliant lock inserts ensure that the design meets cleanliness standards.
| Catalog Number | 1310600 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Industrial |
| Color | RAL 5010 Blue |
| Construction | All-Round Solid Construction |
| Material | Stainless Steel |
| Mounting | Din Rail |
| NEMA Rating | 4X, 13 |
| Special Features | Features: Hygienic Design, Roof Pitch 30 Degrees Forwards |
| Standard | DIN 40 050-9, UL Listed, cUL Listed |
| RoHS Indicator | Yes |
| UPC | 639889860926 |
| GTIN | 00639889860926 |
| Item Type | Compact Enclosure |
| Length | 9.2520 |
| Length UOM | Inch |
| Width | 31.3780 |
| Width UOM | Inch |
| Height | 24.8030 |
| Height UOM | Inch |
| Weight | 60.406 |
| Weight UOM | Pounds |
| Size | 26 (H) (Front) x 30 (H) (Rear) x 24 (W) x 8.3 (D) |
