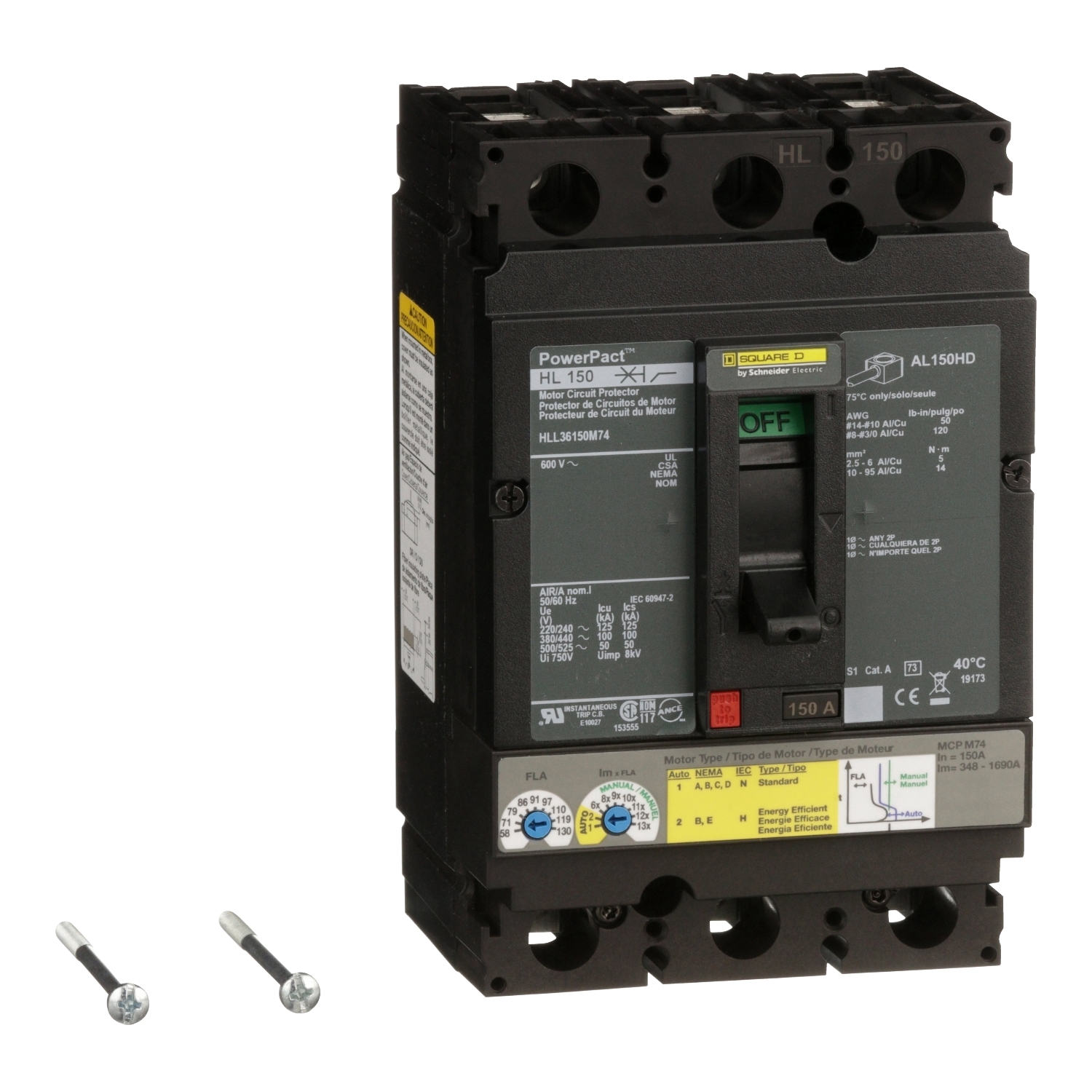

HLL36150M74 Motor Circuit Breaker, 150 Amp, 3 Pole, 600V
- MFR:
- Schneider Electric
- MFR #:
- HLL36150M74
- UPC:
- 785901835677
- Item #:
- 731949
HLL36150M74 Motor Circuit Breaker, 150 Amp, 3 Pole, 600V
- MFR #:
- HLL36150M74
- UPC:
- 785901835677
- Item #:
- 731949
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This unit has lugs on both the line and load side. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
| Catalog Number | HLL36150M74 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55988658&lang=en-us |
| UPC | 785901835677 |
| GTIN | 00785901835677 |
| Item Type | Motor Circuit Protector |
| Trip Type | Thermal-magnetic |
