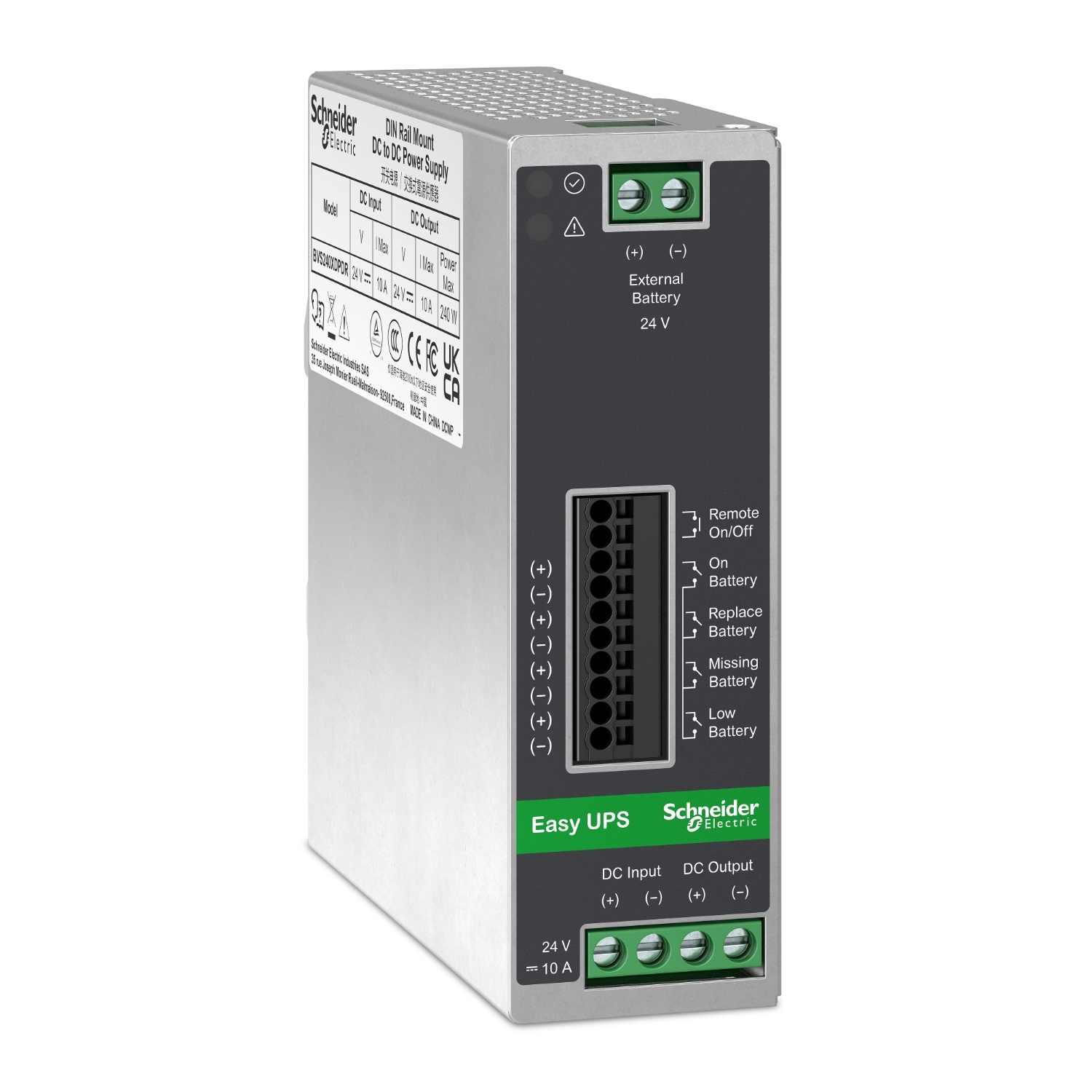

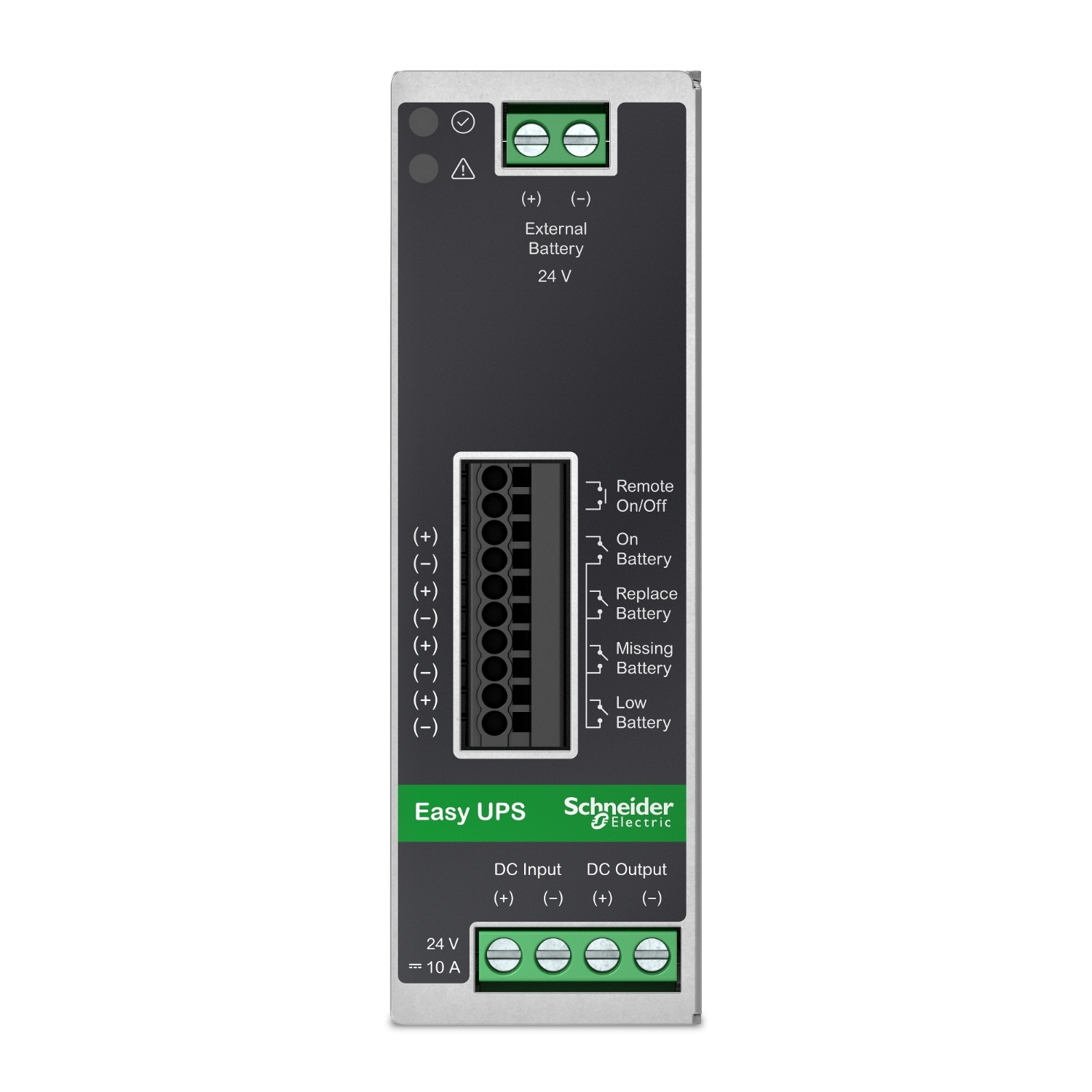

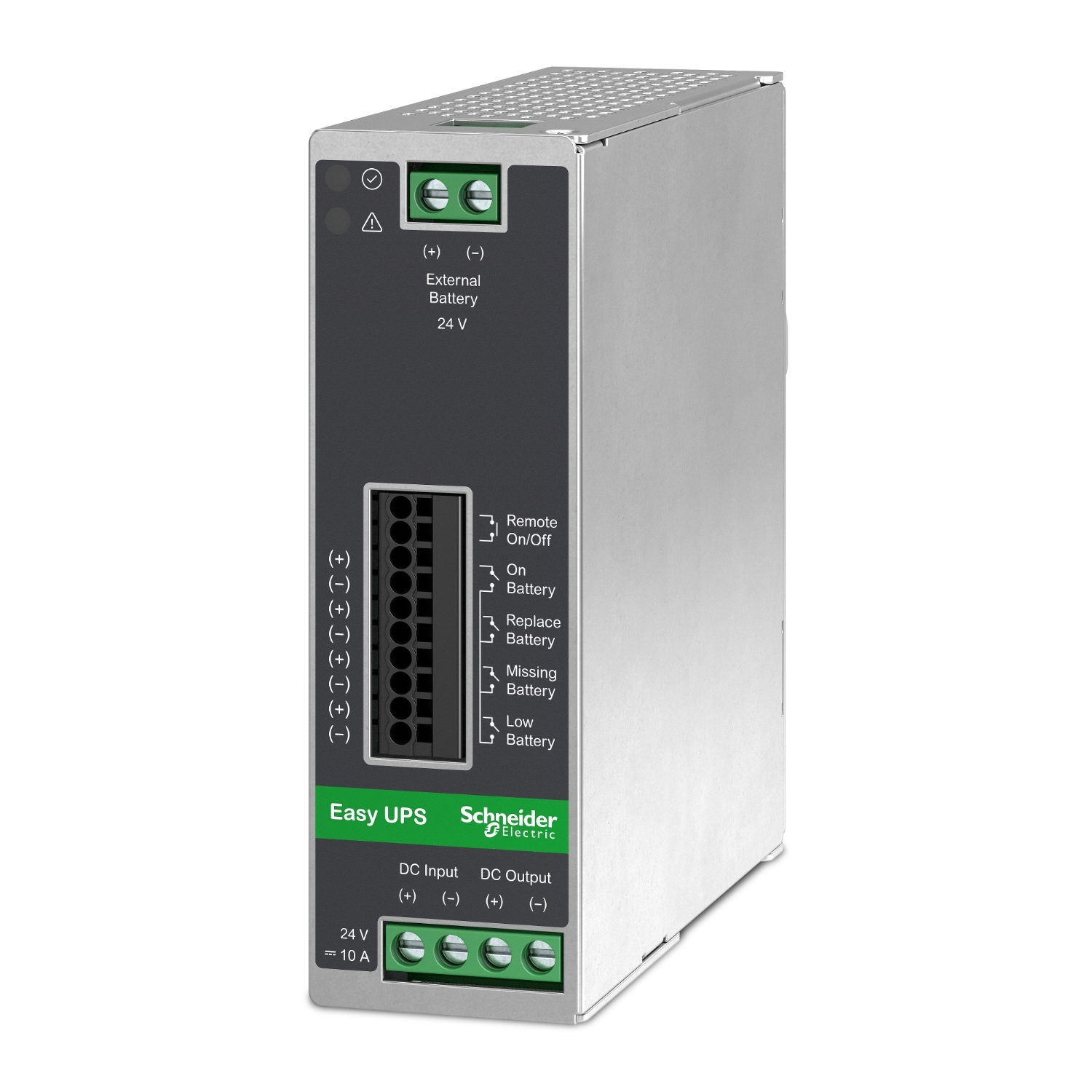

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.

Manuals & Documentation
Catalog Number BVS480XDPDR
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:2 Years repair or replace
Country of Origin Unknown
Made in USA No
Battery external battery system
Color metal grey
Degree of Protection IP20
Load Rating 0.95

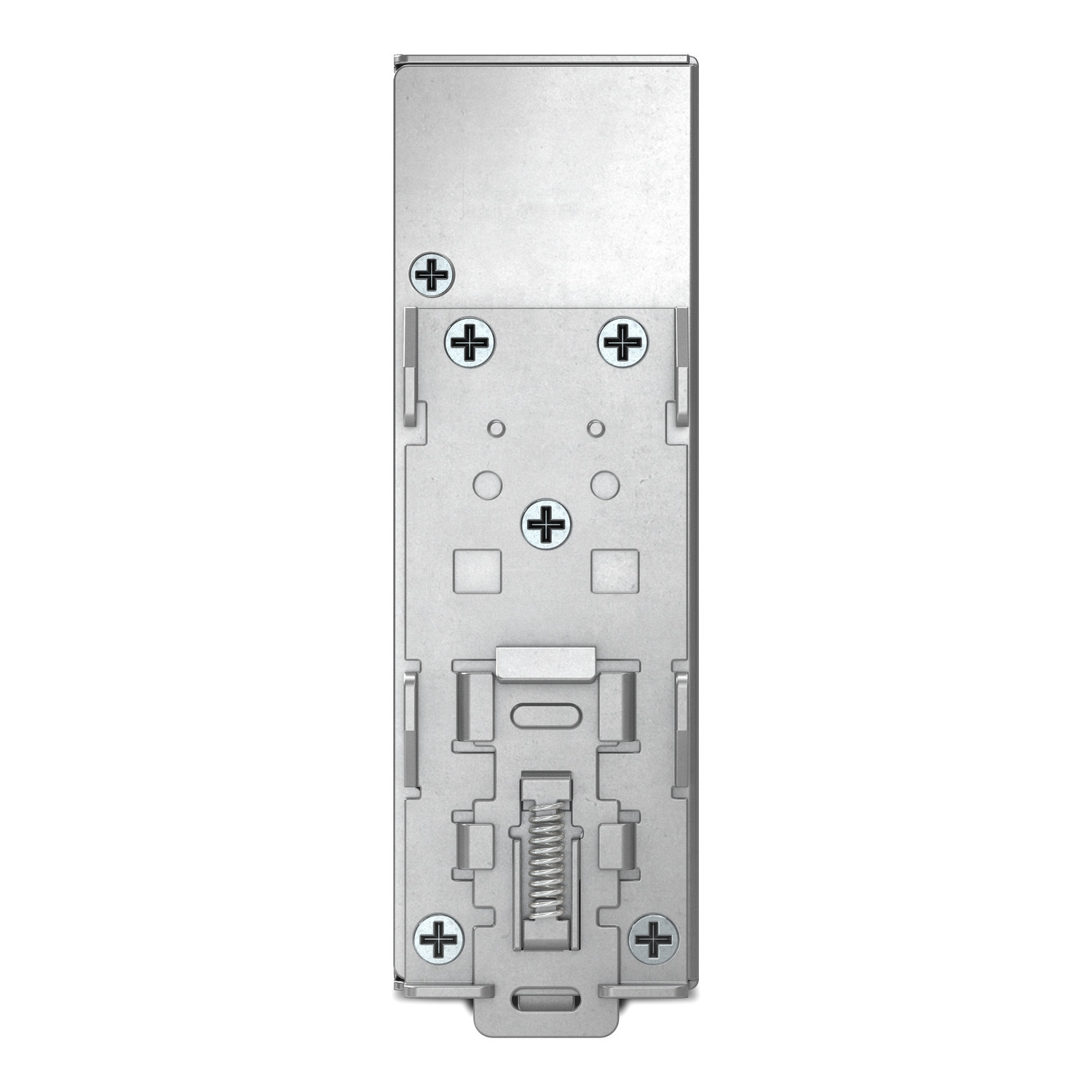

Mounting DIN Rail Mount
Output Voltage 20 A
Standard UL 60950-1 || IEC 62368-1 || CSA-C22.2 No 62368-1-14 || IEC 61010-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=549885638&lang=en-us
UPC 731304436959
GTIN 00731304436959
Item Type uninterruptible power supply (UPS)
Width 40 mm
Height 129 mm
Depth 119 mm
Weight 0.5 kg
Nominal Size DC
Terminals 1 2 pins
Wattage 480 W
