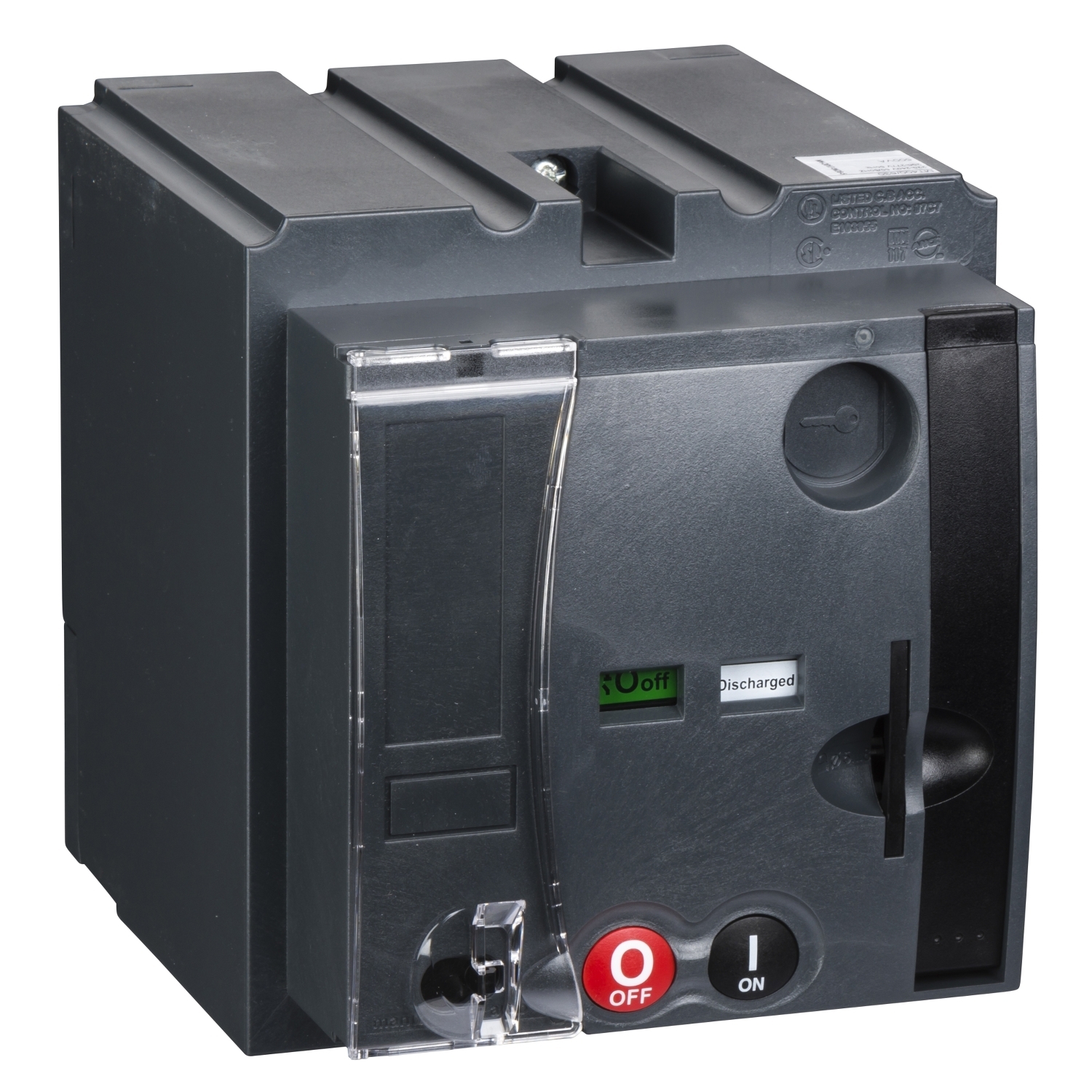

LV432641 MT400/630 Standard Motor Mechanism Module, 208 to 277, 220 to 240 V AC, 400, 630 A, 50/60 Hz
- MFR:
- Schneider Electric
- MFR #:
- LV432641
- Item #:
- 730233
LV432641 MT400/630 Standard Motor Mechanism Module, 208 to 277, 220 to 240 V AC, 400, 630 A, 50/60 Hz
- MFR #:
- LV432641
- Item #:
- 730233
This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.
Manuals & Documentation
| Catalog Number | LV432641 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Response Time | < 700 ms open;< 80 ms closed |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=850454&lang=en-us |
| GTIN | 03606480020179 |
