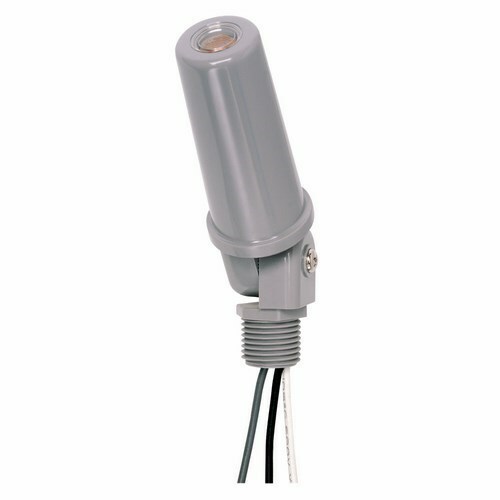

K4251 K4200 Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR:
- Intermatic
- MFR #:
- K4251
- UPC:
- 078275067752
- Item #:
- 73008
K4251 K4200 Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR #:
- K4251
- UPC:
- 078275067752
- Item #:
- 73008
These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.
Manuals & Documentation
| Catalog Number | K4251 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | China |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Frequency Rating | 50/60 HZ |
| Mounting | Stem And Swivel Fixed Mount |
| Sensitivity | 1-5 FC ON, 3-15 FC OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 6 IN Wire Leads |
| Standard | C/US Approval, CSA, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 120 VAC |
| UPC | 078275067752 |
| GTIN | 00078275067752 |
| Item Type | Thermal Type Photo Cell |
| Size | 1-3/8 DIAMETER X 4 HEIGHT IN, 3.5 DIAMETER X 10.2 HEIGHT MM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
| Cross Reference Products | 2021 |
