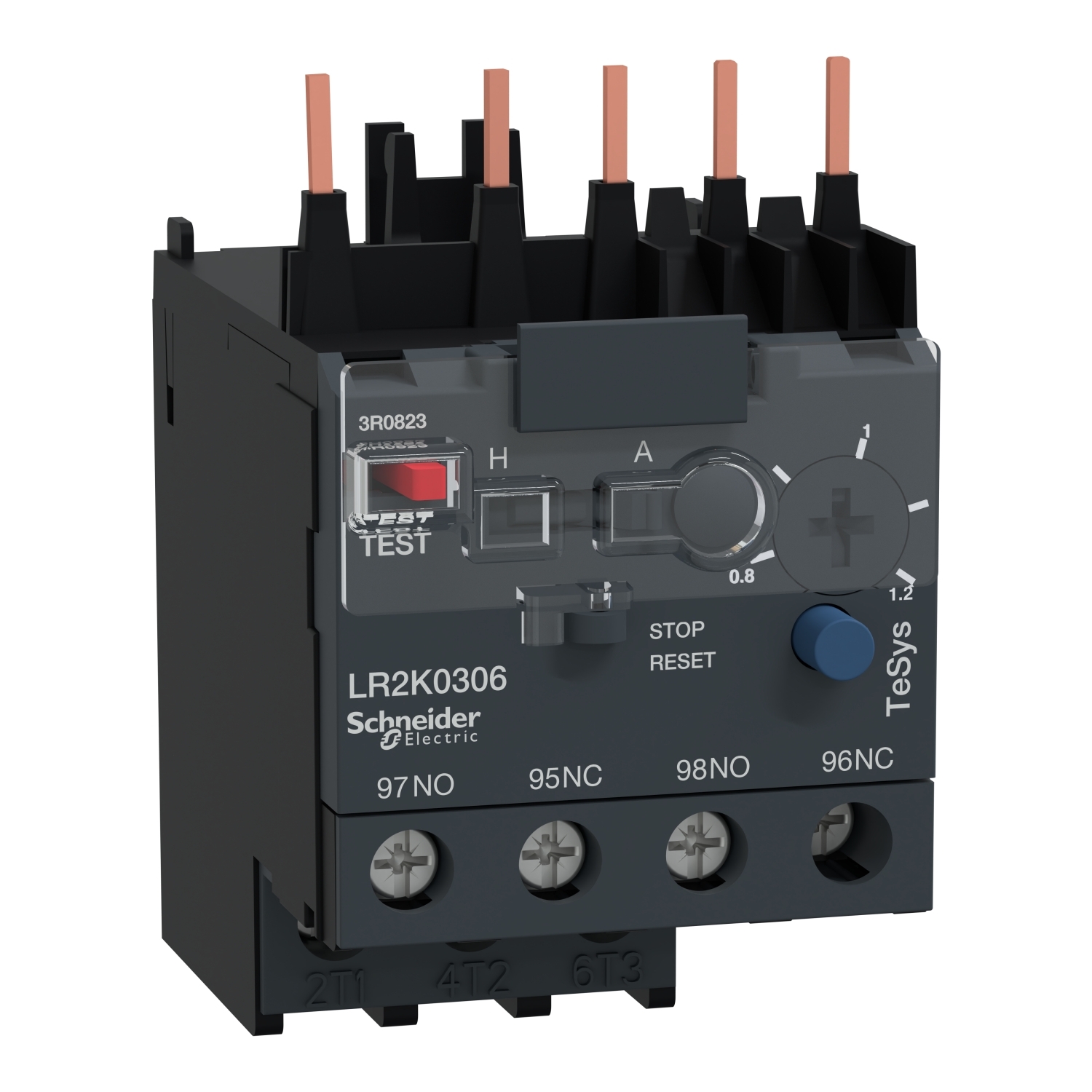

LR2K0306 TeSys K-Line Bi-Metallic Thermal Overload Relay, 0.8 to 1.2 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR:
- Schneider Electric
- MFR #:
- LR2K0306
- Item #:
- 72993
LR2K0306 TeSys K-Line Bi-Metallic Thermal Overload Relay, 0.8 to 1.2 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR #:
- LR2K0306
- Item #:
- 72993
LR2K0306 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 0.25-0.37kW@400V thanks to a thermal range 0.8-1.2A, a tripping class 10A and phase unbalance protection. LR2K0306 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 0.8-1.2A, a tripping class 10A and phase unbalance detection, it protects motors 0.25-0.37kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K06 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064).
Manuals & Documentation
| Catalog Number | LR2K0306 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=639798&lang=en-us |
| GTIN | 03389110230420 |
