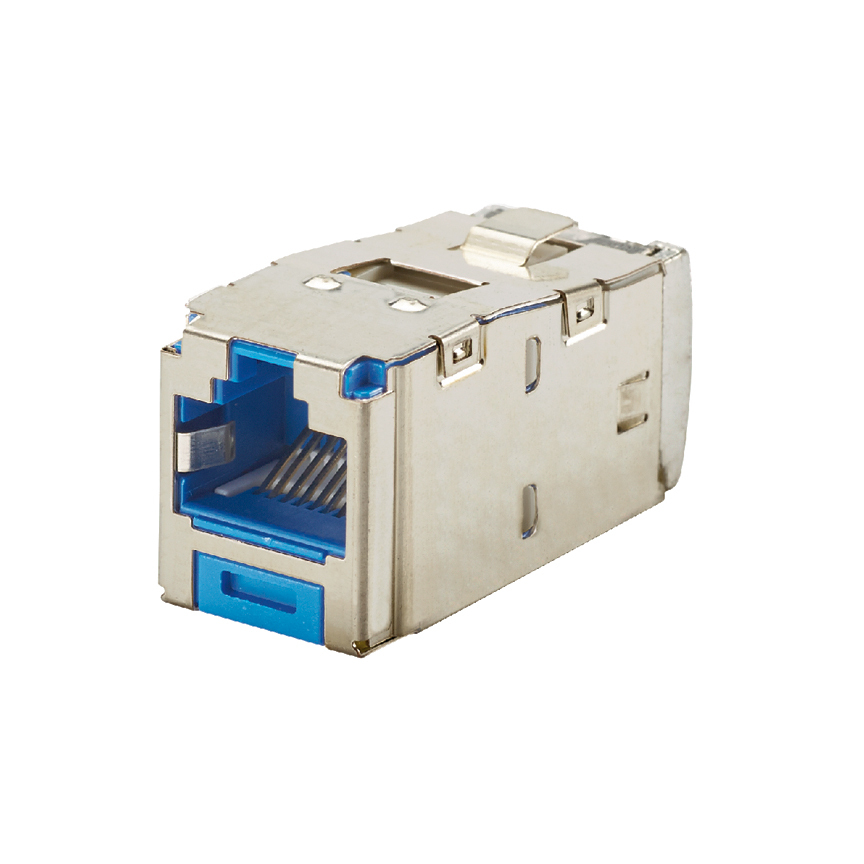

CJS688TGBUY PanNet TX6 Plus 1-Slot 8-Position 8-Wire Shielded TG Style Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic/Tin Plated Over Phosphorous Bronze, Blue
- MFR:
- Panduit
- MFR #:
- CJS688TGBUY
- UPC:
- 074983932238
- Item #:
- 729067
CJS688TGBUY PanNet TX6 Plus 1-Slot 8-Position 8-Wire Shielded TG Style Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic/Tin Plated Over Phosphorous Bronze, Blue
- MFR #:
- CJS688TGBUY
- UPC:
- 074983932238
- Item #:
- 729067
The Mini-Com Cat 6 Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
| Catalog Number | CJS688TGBUY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | Shielded |
| Cable Entry | T568A/T568B |
| Color | Blue |
| Material | ABS/Tin Plated Over Phosphorous Bronze//Plastic |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS |
| UPC | 074983932238 |
| GTIN | 00074983932238 |
| Item Type | Jack Module |
| Width | 0.62 |
| Width UOM | Inch |
| Depth | 1.5 IN |
