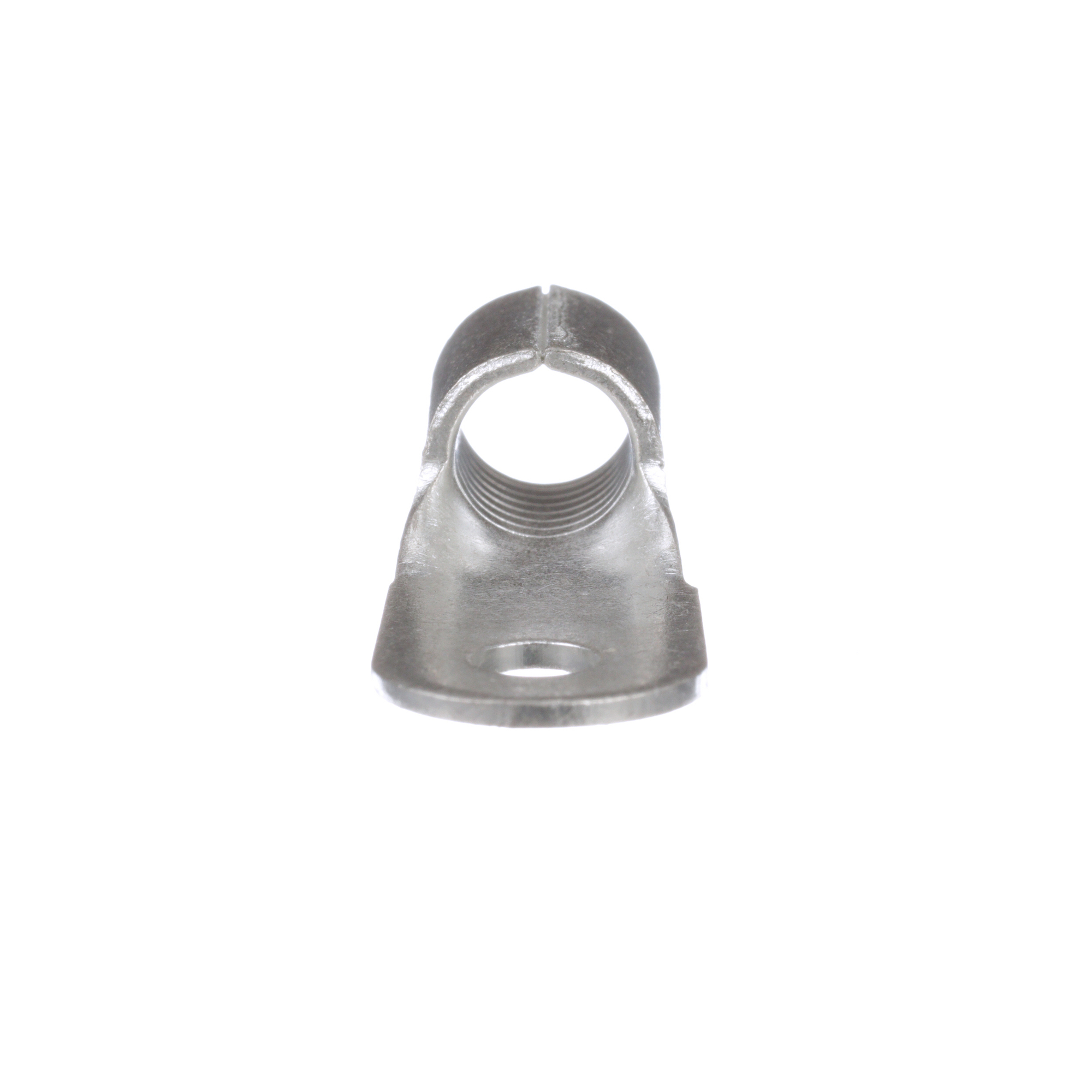

P4-10R-T Pan-Term Type P-R Loose Piece Non-Insulated Ring Terminal, 4 AWG Conductor, 1.4 in L, Brazed Seam/Standard/Internal Serration/Insulation Support Barrel, Copper, Metallic
- MFR:
- Panduit
- MFR #:
- P4-10R-T
- UPC:
- 074983870608
- Item #:
- 727331
P4-10R-T Pan-Term Type P-R Loose Piece Non-Insulated Ring Terminal, 4 AWG Conductor, 1.4 in L, Brazed Seam/Standard/Internal Serration/Insulation Support Barrel, Copper, Metallic
- MFR #:
- P4-10R-T
- UPC:
- 074983870608
- Item #:
- 727331
The P4-10R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | P4-10R-T |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Standard |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Non-Insulated |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983870608 |
| GTIN | 00074983870608 |
| Item Type | Ring Terminal |
| Size | #10 |
| Temperature Rating | 302 Degrees Fahrenheit (150 Degrees Celsius) |
| Voltage Rating | 2000 |
| Wire Size | #4 AWG |
