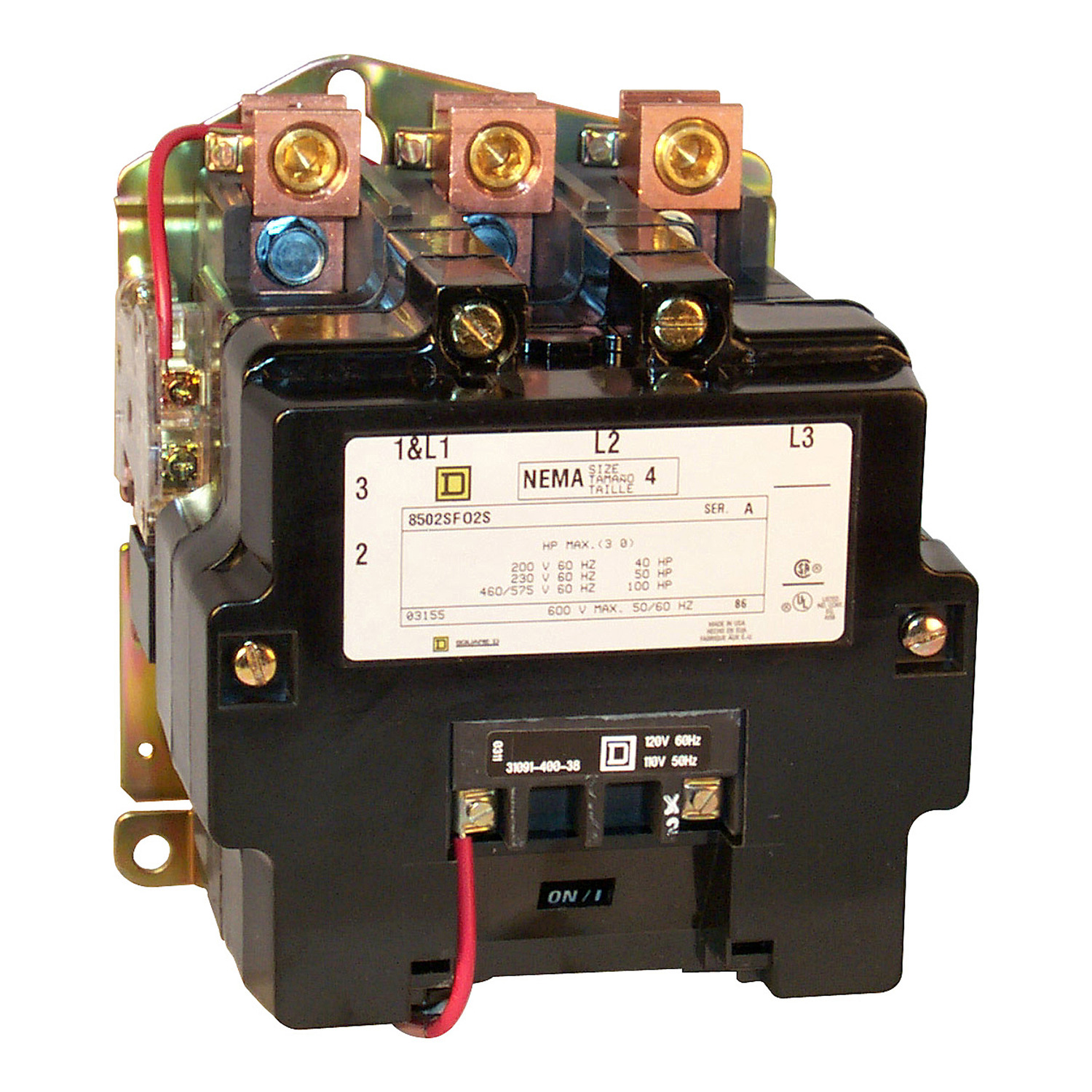

8502SFO2V06 Non-Reversing Type S Contactor, 440 V AC at 50 Hz to 480 V AC at 60 Hz V Coil, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- 8502SFO2V06
- UPC:
- 785901831235
- Item #:
- 72642
8502SFO2V06 Non-Reversing Type S Contactor, 440 V AC at 50 Hz to 480 V AC at 60 Hz V Coil, 3 Poles
- MFR #:
- 8502SFO2V06
- UPC:
- 785901831235
- Item #:
- 72642
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8502SFO2V06 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901831235 |
| GTIN | 00785901831235 |
