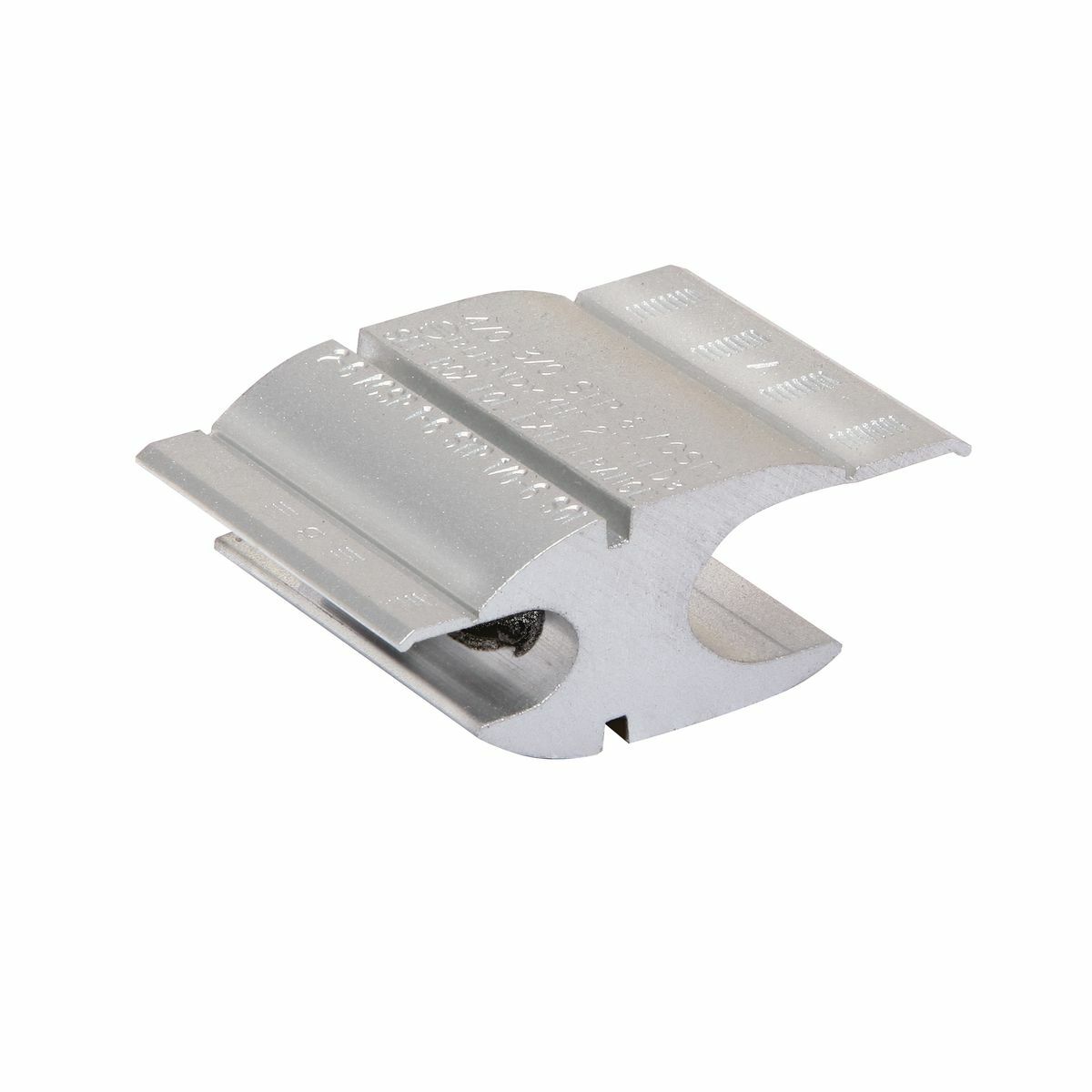

YHN500 Type YHN Compression Line Tap Connector, Figure H Shape, 4/0 AWG, 200 kcmil Min Run/Tap, 500 kcmil, 1/0 AWG Max Run/Tap, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YHN500
- UPC:
- 781810139455
- Item #:
- 722278
YHN500 Type YHN Compression Line Tap Connector, Figure H Shape, 4/0 AWG, 200 kcmil Min Run/Tap, 500 kcmil, 1/0 AWG Max Run/Tap, Aluminum
- MFR #:
- YHN500
- UPC:
- 781810139455
- Item #:
- 722278
Manuals & Documentation
| Catalog Number | YHN500 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Copper, Aluminum Or ACSR And Compact Conductors |
| Material | Aluminum |
| Special Features | Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Cable Diameter Range (run): 0.522 - 0.815 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-N Die, (2), Y45 Tool, S-N Die, (2), Y46 Tool, P-N Die, (2), Installation Tool: Mechanical Or Hydraulic Installation Tooling, Die Index: N Element A, Cable Diameter Range (tap): 0.16 - 0.45 IN, Conductor Size (run - Range): 4/0 AWG - 500 KCMIL, Conductor Type: Run: Aluminum Stranded, Copper Stranded, Tap: Aluminum Stranded, Copper Stranded, Conductor Size (tap Range): 6 - 2/0 AWG, Shape: H |
| UPC | 781810139455 |
| GTIN | 00781810139455 |
| Item Type | YHN |
