Discontinued
Lutron

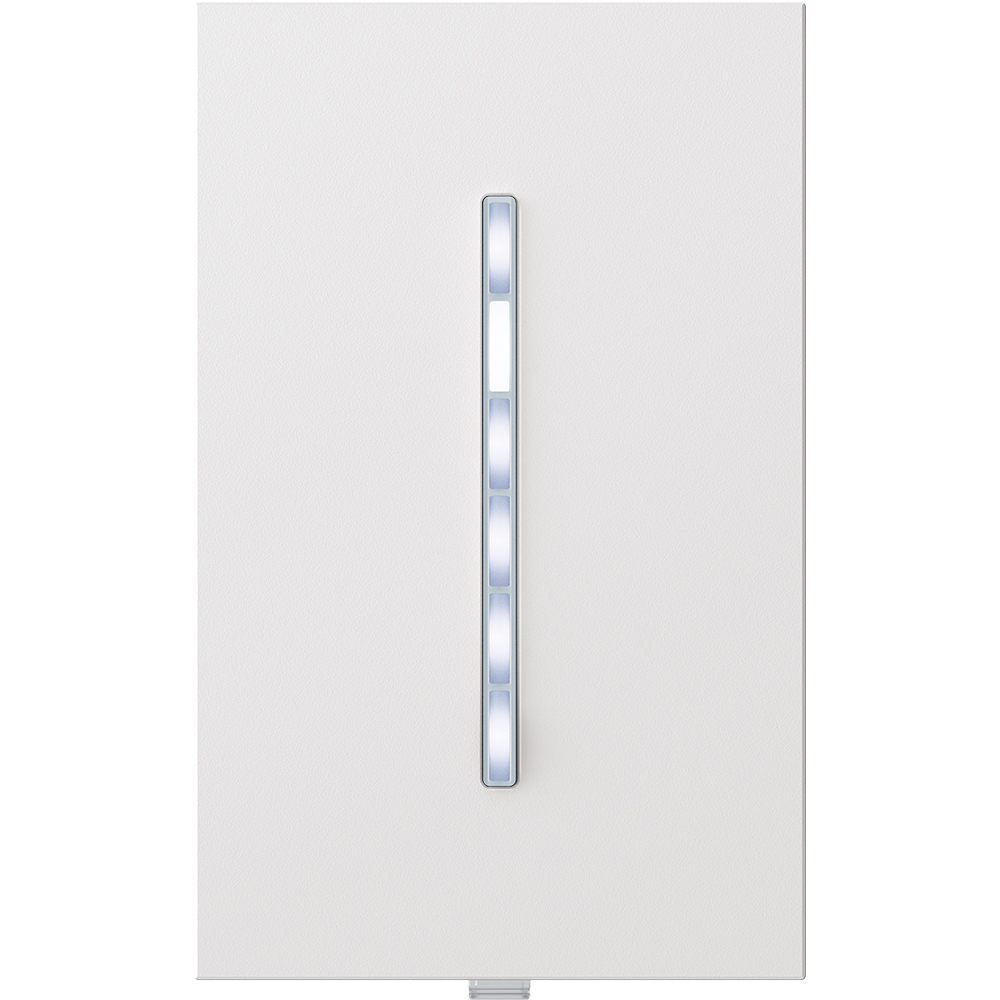

RRT-GH6B Radio Frequency RF Switch

MFR:
Lutron Electronics
MFR #:
RRT-GH6B
UPC:
784276164559
Item #:
721887
Manuals & Documentation
Catalog Number RRT-GH6B
Manufacturer Lutron Electronics
Brand Lutron
Actuator Touch bar
Application Lighting Control
Color White
Enclosure Plastic
Frequency Rating 50 to 60 HZ
Insulation Plastic
Material Plastic/Metal
Mounting Wall
Number of Poles 1
Special Features 6 button functions as a dimmer and a keypad combined into a single device. Allows for local control of load as well as typical keypad functionality. Will function as a normal keypad when no load is installed or load burns out. Custom, backlit, engraved scene/zone descriptions on faceplate. Dynamic backlighting management automatically adjusts the intensity of the backlit engraving to ensure text is readable in any light. All buttons are fully programmable, including the raise/lower functionality. C.L technology with microprocessor based dimming for control of Lutron compatible dimmable LED lamps. Optional neutral connection available for superior LED dimming performance. Simple touch control. Distinctive architectural aesthetic. Low-end and high-end trim are available for improved LED dimming performance. Great for retrofit applications since they eliminate the need to install two separate devices. Wallplates sold separately.
Standard UL, CSA, NOM, FCC, IC, IFTEL
UPC 784276164559
GTIN 00784276164559
Item Type RF C.L hybrid keypad dimmer
Size 4.69 x 2.94
Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only.
Operating Temperature 32 to 104 F
Voltage Rating 120
