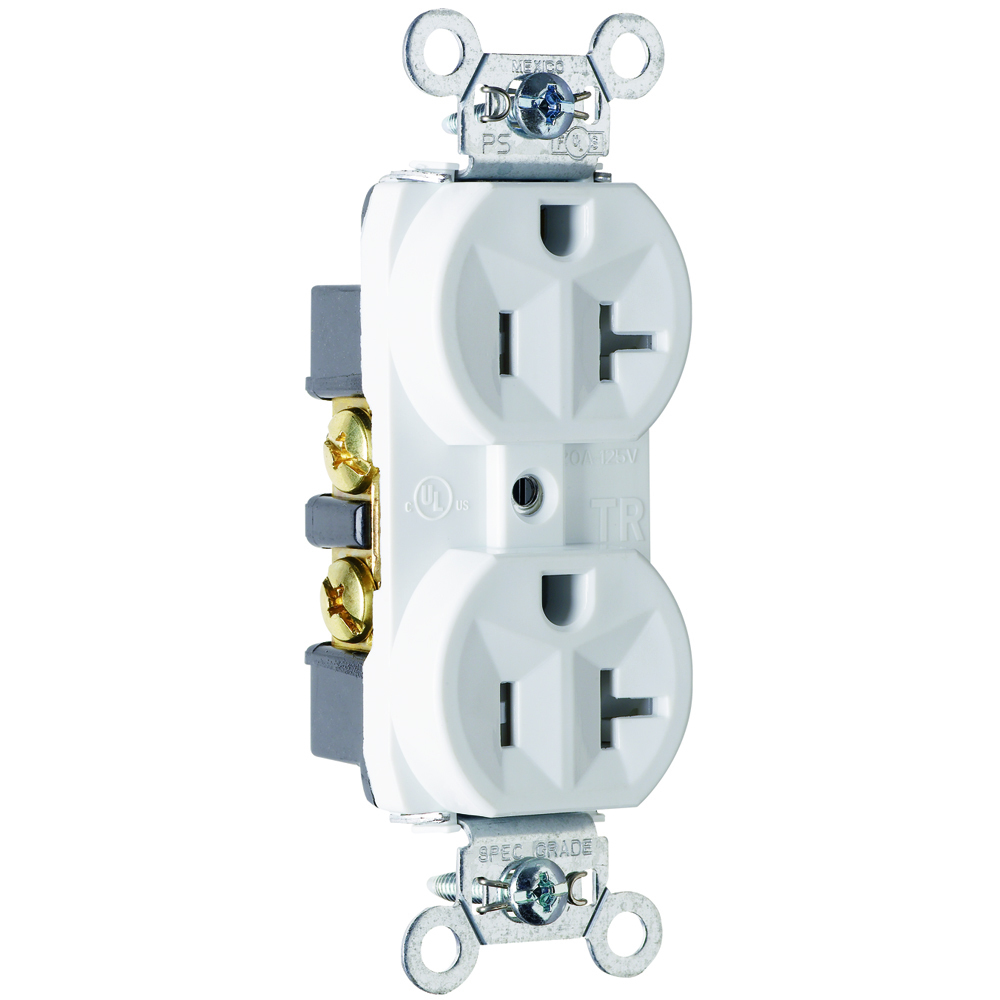

TR5362W 20 Amp 125V Construction Spec-Grade Duplex Receptacle, Back and Side Wire, White
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- TR5362W
- UPC:
- 785007243819
- Item #:
- 72070
TR5362W 20 Amp 125V Construction Spec-Grade Duplex Receptacle, Back and Side Wire, White
- MFR #:
- TR5362W
- UPC:
- 785007243819
- Item #:
- 72070
Tamper-Resistant Hard Use Spec Grade Receptacle, Back and Side Wire, 20A, 125V
| Catalog Number | TR5362W |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Warranty Description | 1-Year Limited Warranty |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | White |
| Connection | Back and side wire |
| Material | Nylon |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. |
| Standard | UL498, CSA C22.2 No. 42 |
| UPC | 785007243819 |
| GTIN | 00785007243819 |
| Item Type | Tamper-Resistant Spec Grade Receptacle, Hard Use |
| Size | 1.322 L x 1.130 W x 3.281 H |
| Temperature Rating | -40° - 60° C |
| Voltage Rating | 125 |
| Wire Size | 14 - 10 AWG |
| Cross Reference Products | EatonWD TR5362W |
