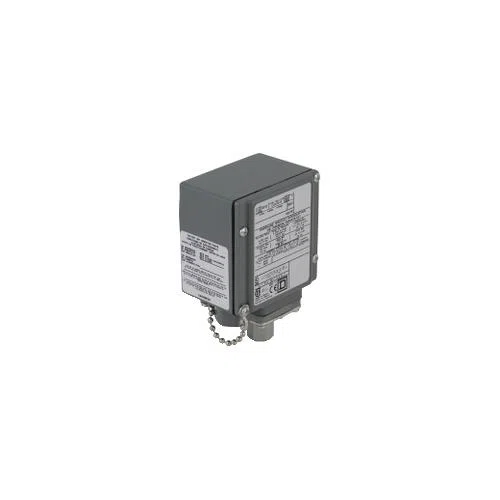

Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
- MFR:
- Schneider Electric
- MFR #:
- 9012GAW25
- UPC:
- 785901024804
- Item #:
- 71065
Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
- MFR #:
- 9012GAW25
- UPC:
- 785901024804
- Item #:
- 71065
The 9012G pressure switches are UL listed and CSA certified as industrial control equipment. They are used to interface pneumatic or hydraulic systems with electrical control systems by opening or closing electrical contacts in response to pressure changes in the system. They have outstanding repeatability and drift performance. Their efficient design uses durable, low mass components for excellent performance under heavy duty vibration and shock conditions.
Manuals & Documentation
Features
- -40 to 250 deg F hydraulic oil, air, non-corrosive liquid and non-corrosive gas
- Regulation between 2 thresholds pressure switch operation
- Adjustable scale
- 1/2 in NPT conduit entrance cable entry
- >0 to <4% repeat accuracy
- 10 A by gL overload and short circuit protection
- 5000000 cycles mechanical durability
- 50 gn conforming to IEC 60068-2-27 shock-resistance
- Without local display
- 22 to 12 AWG electrical connection
- 1/4 in 18 NPTF conforming to UL 508 fluid connection
- Isolated DPDT contact configuration
- 150 psi system pressure
- Adjustable differential scale
- Corrosion-resistant
- Dusttight oiltight and watertight
| Manufacturer Part Number | 9012GAW25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901024804 |
| EAN | 0785901024804 |
| Country Of Origin | MX |
| Dimensions | 3.5 in W x 2.63 in D x 5.55 in H |
| Enclosure Type | NEMA 4/4X/13 |
| Housing Material | Die Cast Aluminum |
| Series | 9012G |
| Temperature Rating | -10 to 185 deg F |
| Type | Electromechanical Single Stage |
| Alternative Part Number | 8152567 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | RoHS Compliant | UL 508 E12443 | CSA C22.2 14 LR25490 Class 3211 03 | CE Marked | IEC Certified | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Indoor/Outdoor Applications and Regulation Between 2 Thresholds |
| Connection Material | Steel |
| Connection Type | NPT Conduit/Screw Clamp |
| Contact Configuration | 2NO-2NC |
| Contact Rating | 10 A at 480 V AC |
| Diaphragm Material | Nitrile |
| Differential | 6 to 30 psi |
| Maximum Pressure | 475 psi |
| Operating Cycles | 120 cpm |
| Pressure Rating | 3 to 150 psi |
