SQUARE D

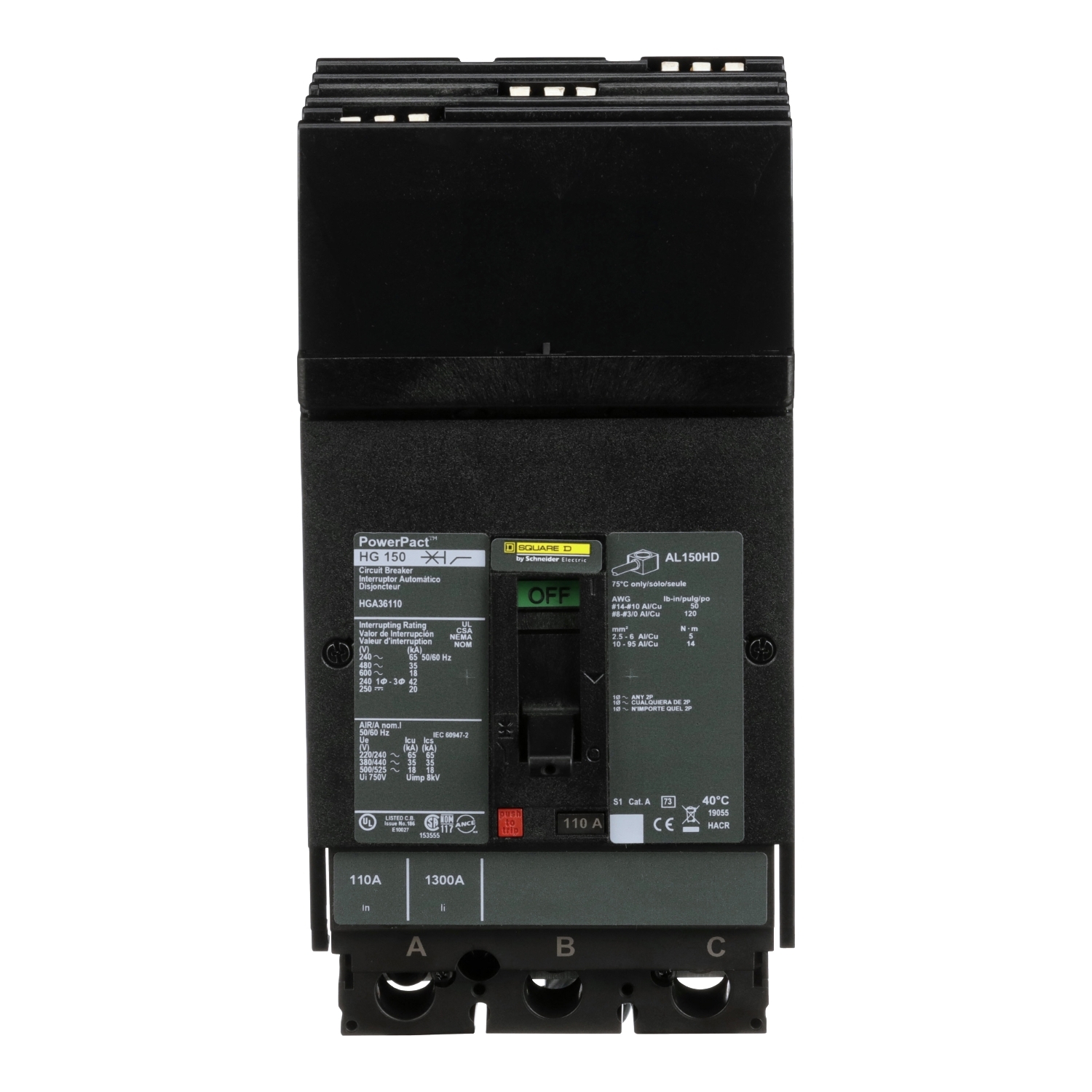

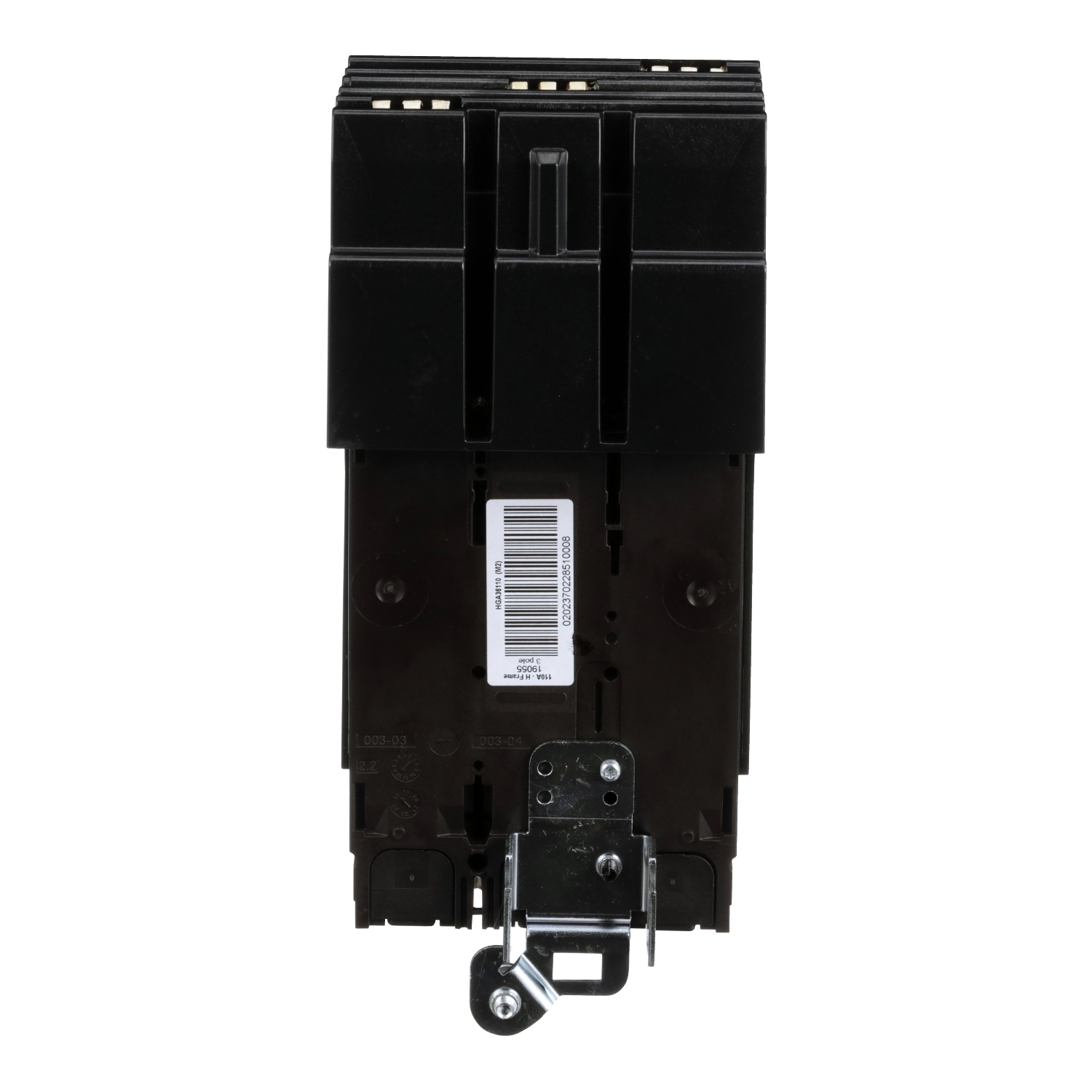

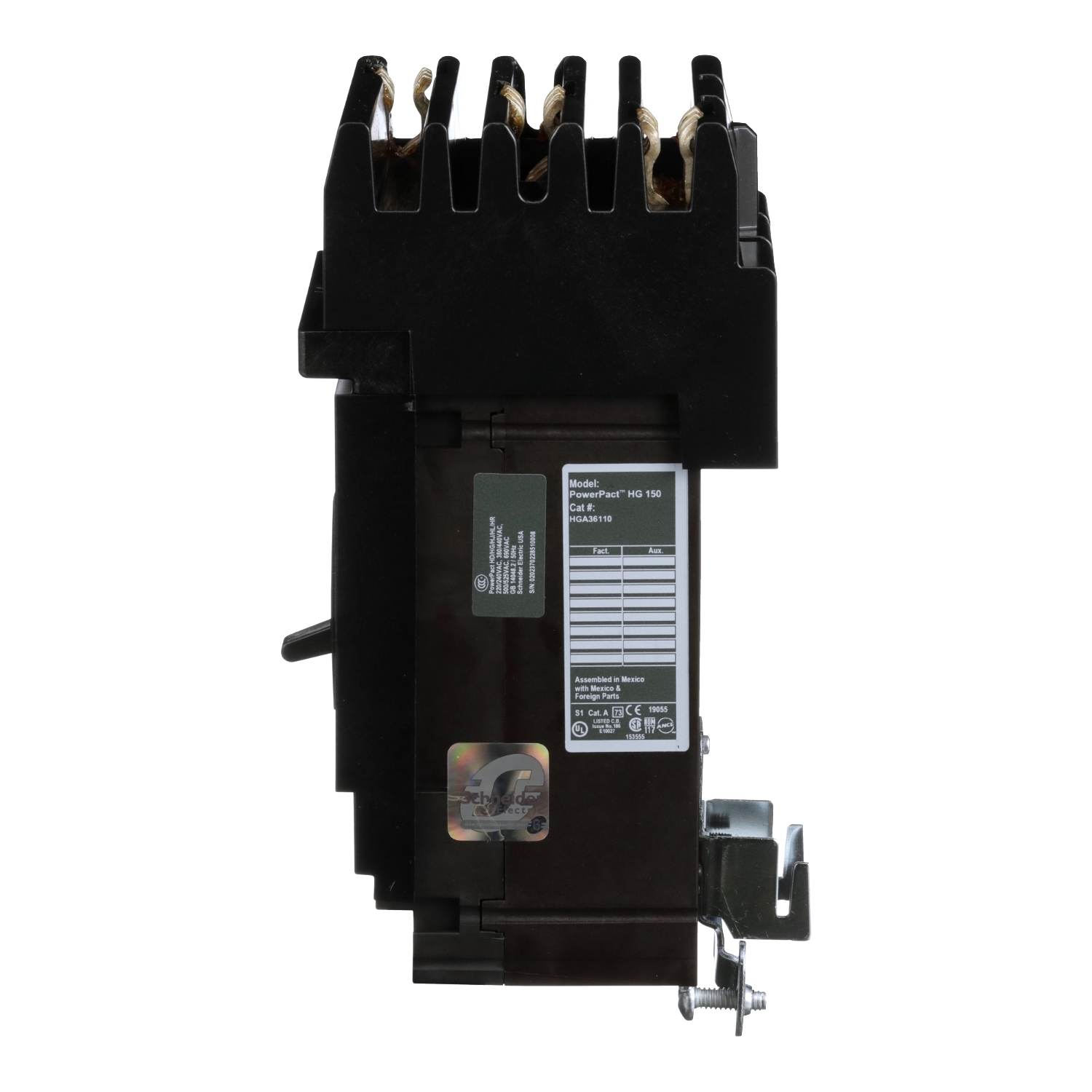

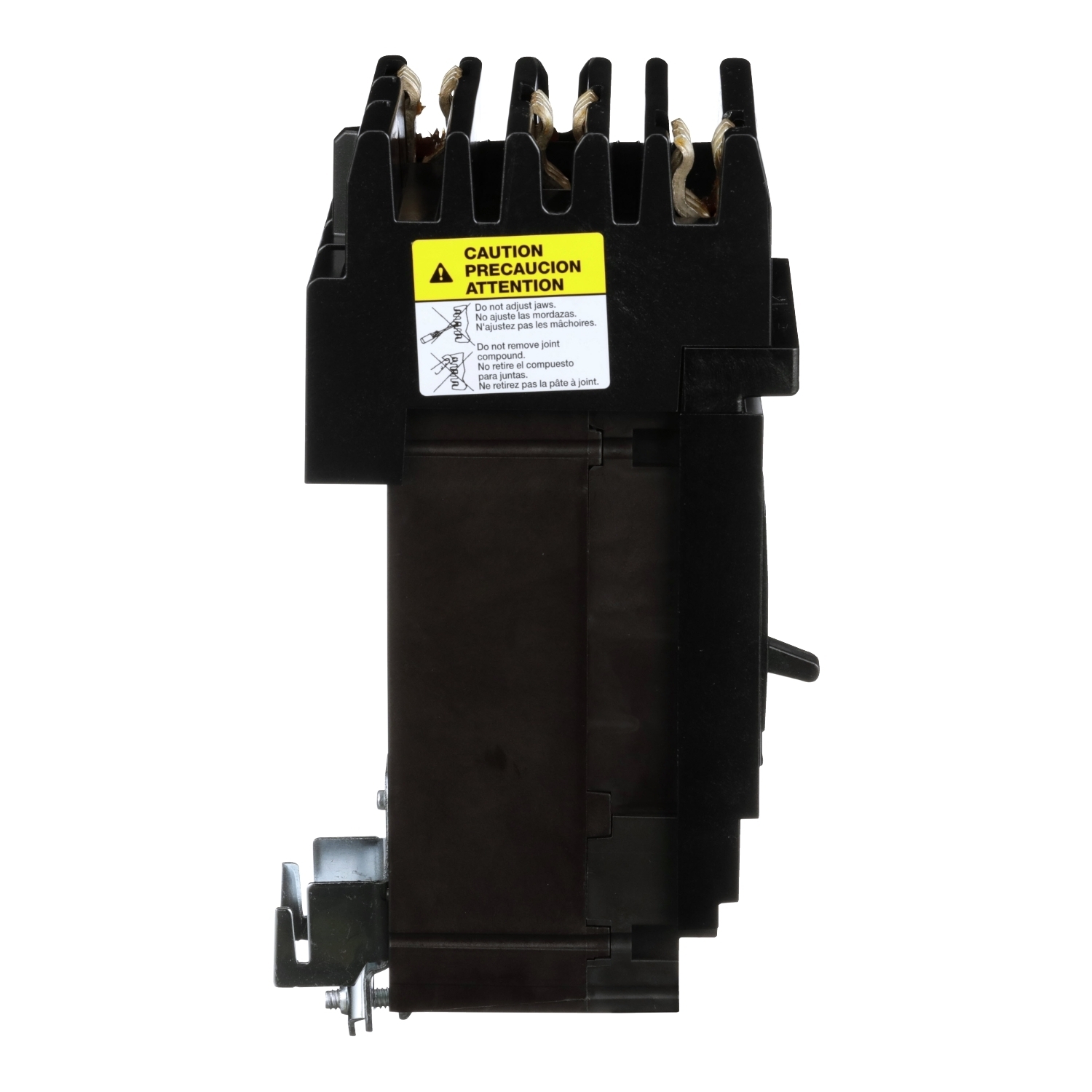

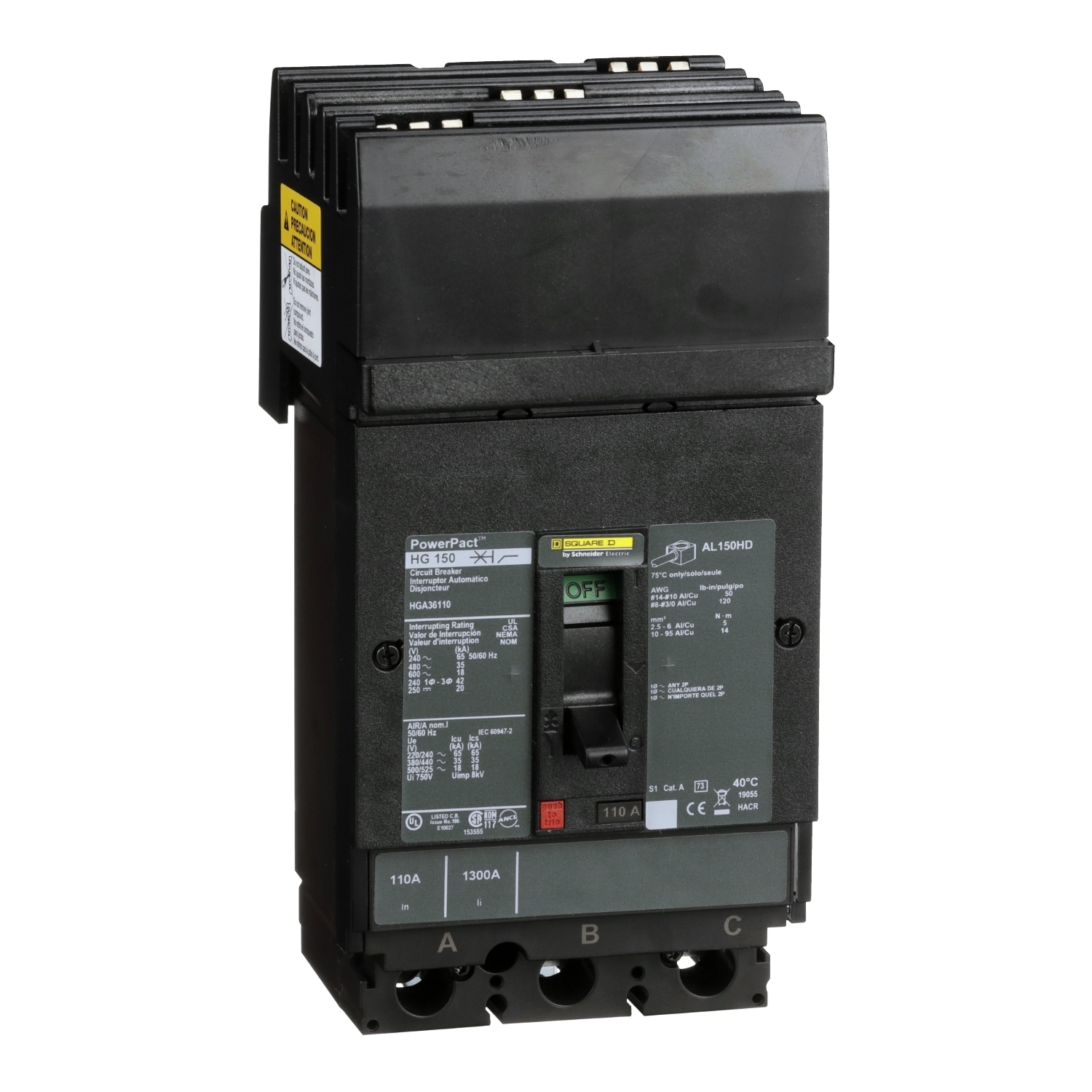

HGA36110 HGA 80% Rated Type HGA 3-Pole Molded Case Circuit Breaker, 600 V AC/250/500 V DC, 110 A, 18 to 20 kA Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
HGA36110
UPC:
785901422365
Item #:
71063

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 110A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number HGA36110
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Actuator Toggle
Application Distribution;HACR rated
Color Black
Connection I-Line connection, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;Ethernet;1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422495&lang=en-us
UPC 785901422365
GTIN 00785901422365
Item Type Circuit breaker
Trip Type Thermal-magnetic
