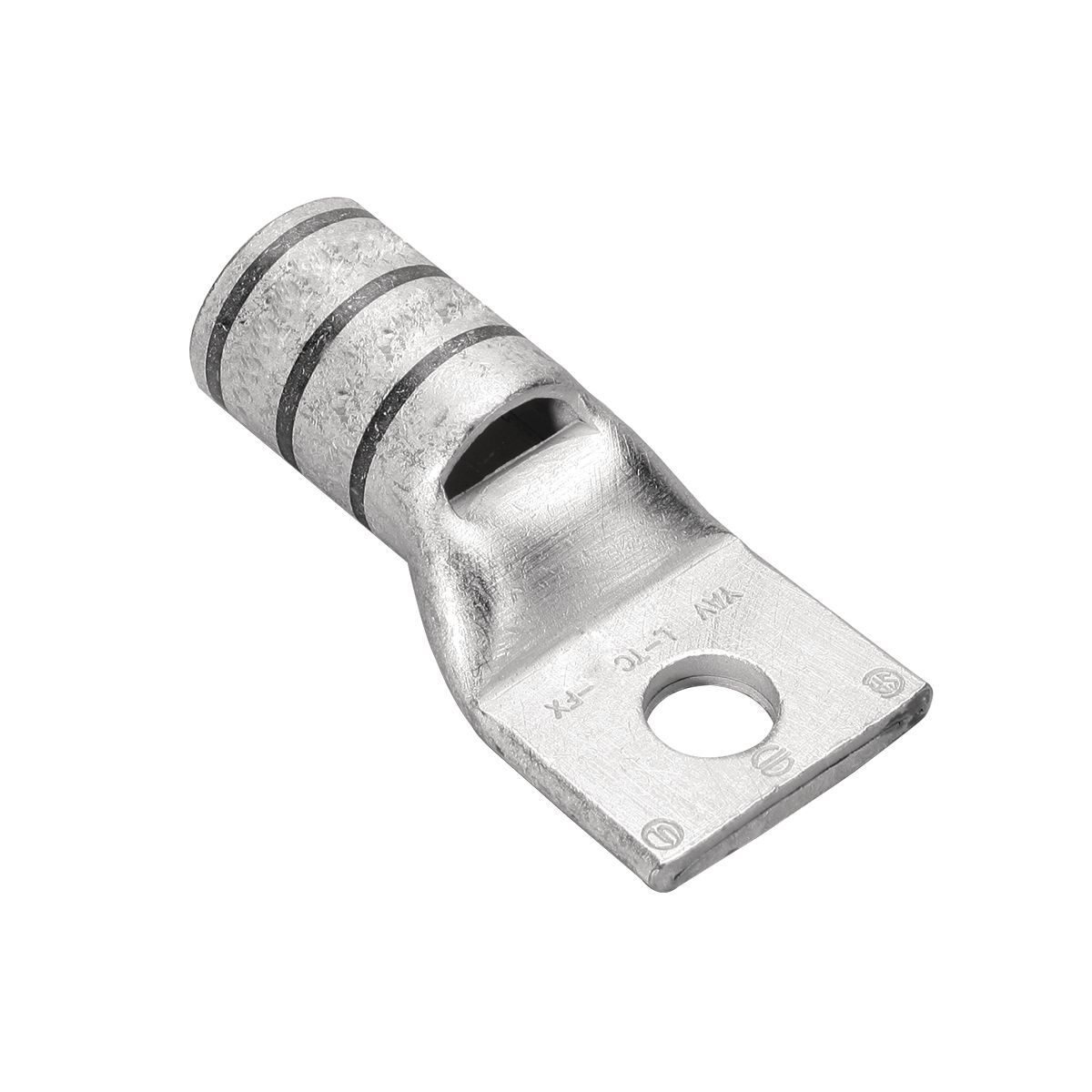

YAV6CLTC10FX YAV-L-TC-FX 1-Hole Compression Lug With Inspection Window, 6 AWG Flexible/Solid/Stranded Copper Conductor, Die Code: 7, #10 Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAV6CLTC10FX
- UPC:
- 781810022801
- Item #:
- 709567
YAV6CLTC10FX YAV-L-TC-FX 1-Hole Compression Lug With Inspection Window, 6 AWG Flexible/Solid/Stranded Copper Conductor, Die Code: 7, #10 Stud, Tin Plated Copper
- MFR #:
- YAV6CLTC10FX
- UPC:
- 781810022801
- Item #:
- 709567
Manuals & Documentation
| Catalog Number | YAV6CLTC10FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1/2 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 7, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT Die, (1), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (1), Color Code: Blue, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, MY29-11 Tool, (1), Conductor Type: Flexible Copper |
| Standard | UL 486A-486B |
| UPC | 781810022801 |
| GTIN | 00781810022801 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
