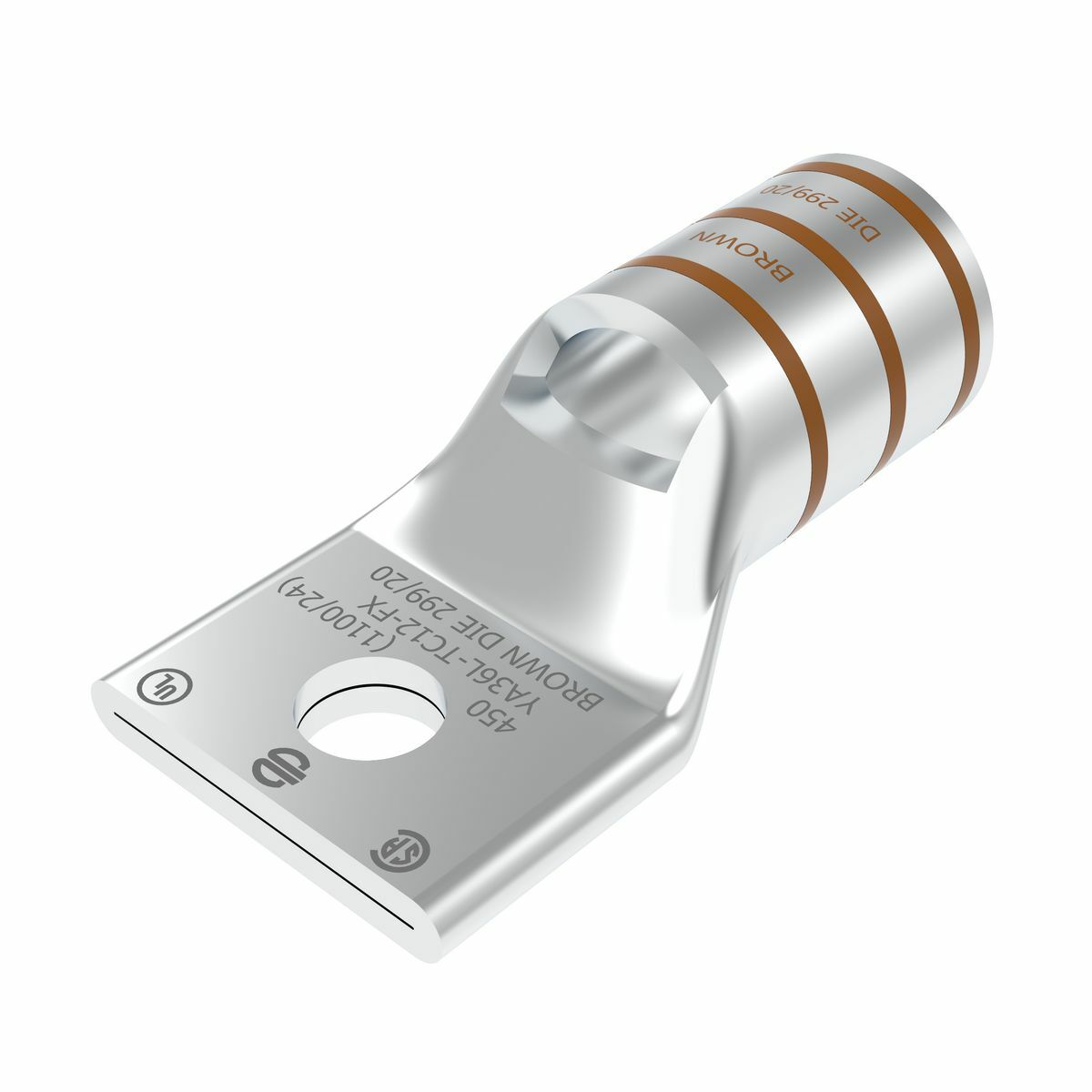

YA36LTC12FX YA-L-FX 1-Hole Compression Lug With Inspection Window, 444.4 kcmil Flexible Copper Conductor, Die Code: 20, 1/2 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA36LTC12FX
- UPC:
- 781810021514
- Item #:
- 709560
YA36LTC12FX YA-L-FX 1-Hole Compression Lug With Inspection Window, 444.4 kcmil Flexible Copper Conductor, Die Code: 20, 1/2 in Stud, Copper
- MFR #:
- YA36LTC12FX
- UPC:
- 781810021514
- Item #:
- 709560
Manuals & Documentation
| Catalog Number | YA36LTC12FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1-3/8 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 20, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U34RT Die, (2), Y46 Tool, U34RT Die With PUADP-1 Adapter, (2), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| Standard | UL 486A-486B |
| UPC | 781810021514 |
| GTIN | 00781810021514 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
