Appleton

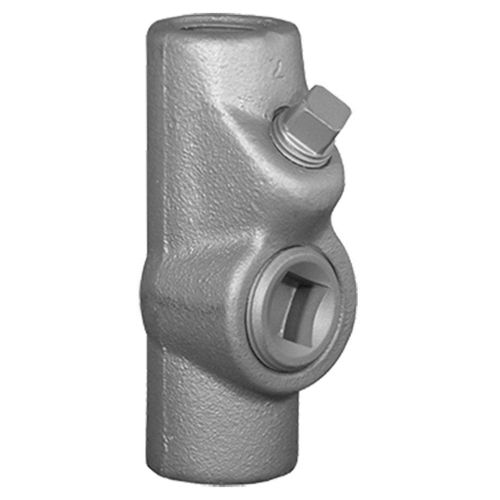

EYF-50 Unilets Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
EYF-50
UPC:
781381135092
Item #:
70945

UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Turning Radius: 1.

Manuals & Documentation
Catalog Number EYF-50
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit and IMC
Connection Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Material Malleable Iron
Special Features For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; And Class III
RoHS Indicator Contact Manufacturer
UPC 781381135092
GTIN 00781381135092
Item Type EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
Length 5.3000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 0.6000
Height UOM Inch
Weight 0.660
Weight UOM Pounds
Size 1/2
