Appleton

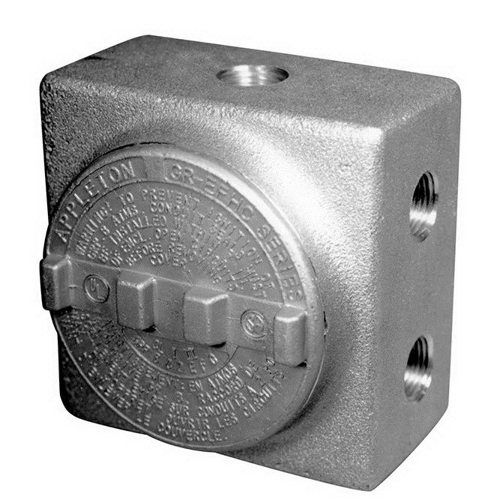

Aluminum Explosion-Proof Conduit Outlet Box; 3/4 In, 7 Hubs, 4 Plugs, Aluminum

MFR:
Appleton Electric
MFR #:
GRSS75
UPC:
781381625432
Item #:
70839

UNILETS GRSS Outlet Box, Number Of Outlet: 7, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 3/4 IN, Cable Entry: (7) 3/4 IN Hub, Cubic Capacity: 29 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 4.63 IN, Width: 4.63 I

Manuals & Documentation
Catalog Number GRSS75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (7) 3/4 IN Hub
Cubic Capacity 29 CU IN
Knockouts No
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Special Features Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Multiple hubs permit flexibility; Internal ground screw standard; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance; Internally threaded aluminum bodies with externally threaded aluminum form 1 covers, has 7 hubs - 2 on each of the sides, 1 on the top, 1 on the bottom and 1 on the center in the back, Furnished with 4 close-up plugs and O-ring gasket
Standard UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certified, Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381625432
GTIN 00781381625432
Item Type GRSS Outlet Box
Length 5.0000
Length UOM Inch
Width 4.8000
Width UOM Inch
Height 4.1000
Height UOM Inch
Weight 3.090
Weight UOM Pounds
Size 3/4
