Appleton

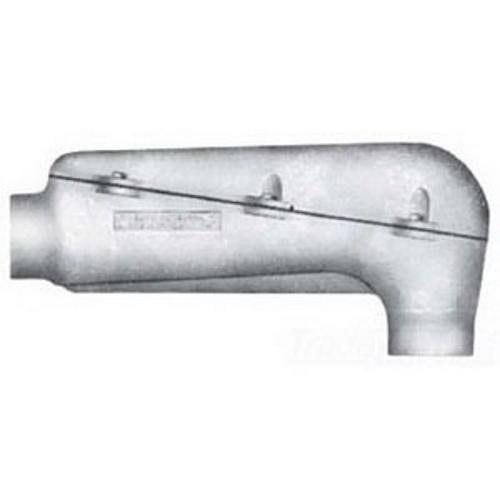

Type LBDN Mogul Conduit Body with Cover & Gasket, 3 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)

MFR:
Appleton Electric
MFR #:
LBDN300-M
UPC:
781381474580
Item #:
7068

UNILETS Type LBDN Pulling Fitting With Cover And Gasket, Hub Size: 3 IN, Length: 21.06 IN, Width: 5.88 IN, Height: 10 IN, Material: Malleable Iron Body, Neoprene Gasket, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Standard: UL 514B, UL File Number E2527, For Use With Rigid Metal Conduit And IMC

Manuals & Documentation
Catalog Number LBDN300-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit And IMC
Connection Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Hub Size 3 IN
Material Malleable Iron Body, Neoprene Gasket
Special Features Serve as pulling fittings - ideal for heavy, difficult to bend conductors; Make 90 DEG bends in conduit - straight pull through hubs in either direction; Use as service entrance fitting; Complete with gasketed covers; Pulling fittings for heavy conductors; Wiring capacity: 345 CU-IN
Standard UL 514B, UL File Number E2527
UPC 781381474580
GTIN 00781381474580
Item Type Type LBDN Pulling Fitting With Cover And Gasket
Length 21.06
Length UOM Inch
Width 5.88
Width UOM Inch
Height 10
Height UOM Inch
