Telemecanique

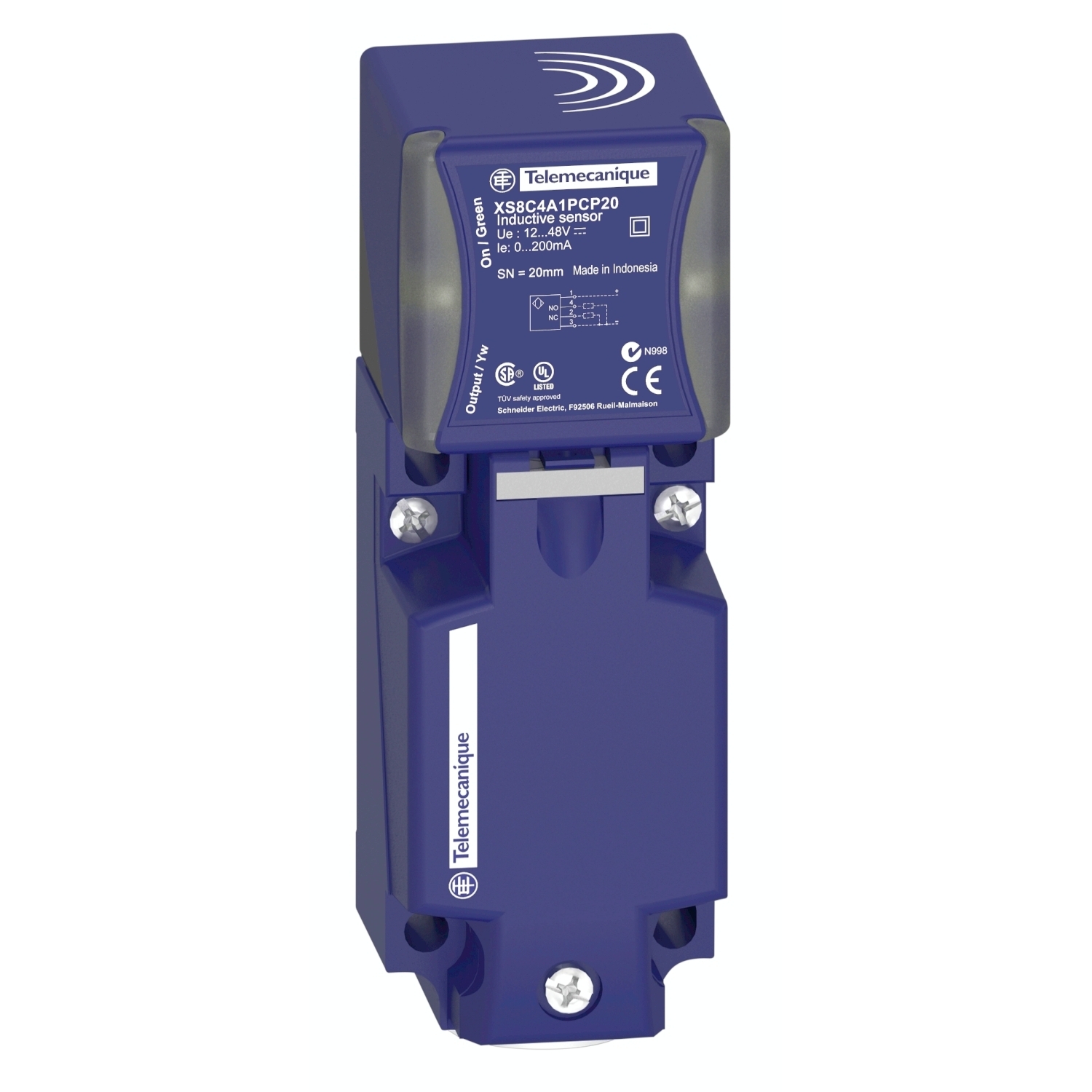

XS8C4A1PCG13 OsiSense XS Fixed Proximity Sensor, Inductive, PNP Output, 1NO-1NC Contact, 12 to 48 V DC

MFR:
Telemecanique Sensors
MFR #:
XS8C4A1PCG13
Item #:
705699

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a 40mm x 40mm x 117mm format sensor, flush mountable in metal. It features a plastic case with a plug-in 5 position turret head and a PG 13.5 cable entry. It has a sensing distance of 20mm. Four-wire, DC supply, 12V to 48V with protection against polarity, NO and NC function, PNP discrete output.

Manuals & Documentation
Catalog Number XS8C4A1PCG13
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Mobile equipment
Connector Screw-clamp terminals, 4 x 1.5 mm²
Enclosure PBT
Indicator Supply on 1 LED green);output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range 20 MM,> 0.59...1.57 IN (> 15...40 MM)
Sensor 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...48 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150037277&lang=en-us
GTIN 03389119058230
Item Type Inductive proximity sensor;Form 40 x 40 x 117
Operating Temperature -25-70 A Degrees C
