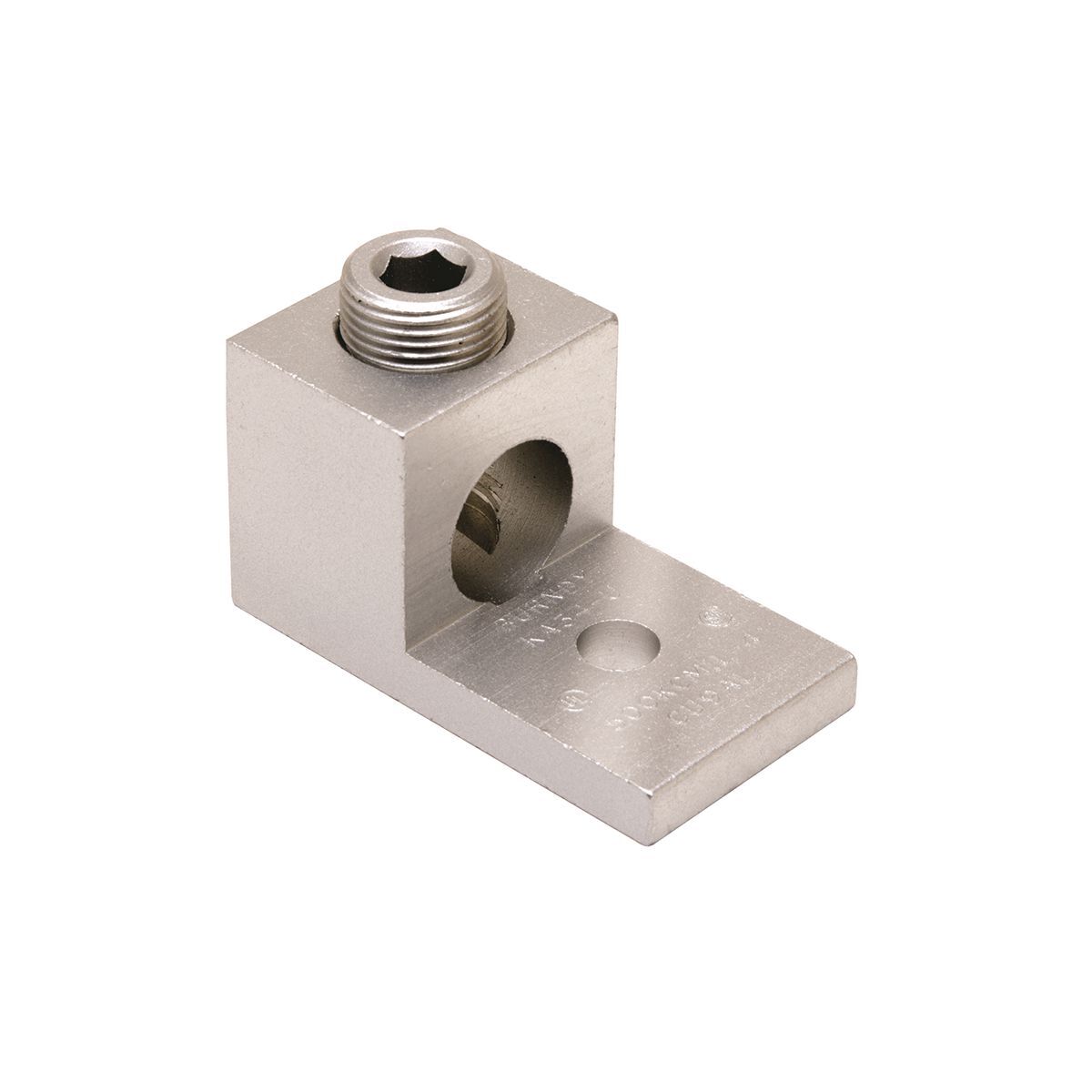

KA36U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 2 AWG to 600 kcmil Copper/Stranded Aluminum Conductor, 3/8 in Stud, 1 Bolt Hole, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KA36U
- UPC:
- 781810370254
- Item #:
- 703544
KA36U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 2 AWG to 600 kcmil Copper/Stranded Aluminum Conductor, 3/8 in Stud, 1 Bolt Hole, Aluminum
- MFR #:
- KA36U
- UPC:
- 781810370254
- Item #:
- 703544
Manuals & Documentation
| Catalog Number | KA36U |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Aluminum And Copper Conductors |
| Material | Aluminum |
| Number of Conductors | 1 |
| Special Features | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension T: 0.44 IN, Number Of Screws: 1, Stud/bolt Hole Size: 3/8 IN, Dimension D: 1.72 IN, Dimension N: 0.78 IN, Set Screw Type: Allen Key, Installation Torque: 500 IN-LB, Length: 3.19 IN, Height: 1.56 IN, Width: 1-1/2 IN |
| Standard | UL 486A-486B |
| UPC | 781810370254 |
| GTIN | 00781810370254 |
| Item Type | Bolted Lugs & Terminals |
| Cross Reference Products | 600T, ADR60 |
