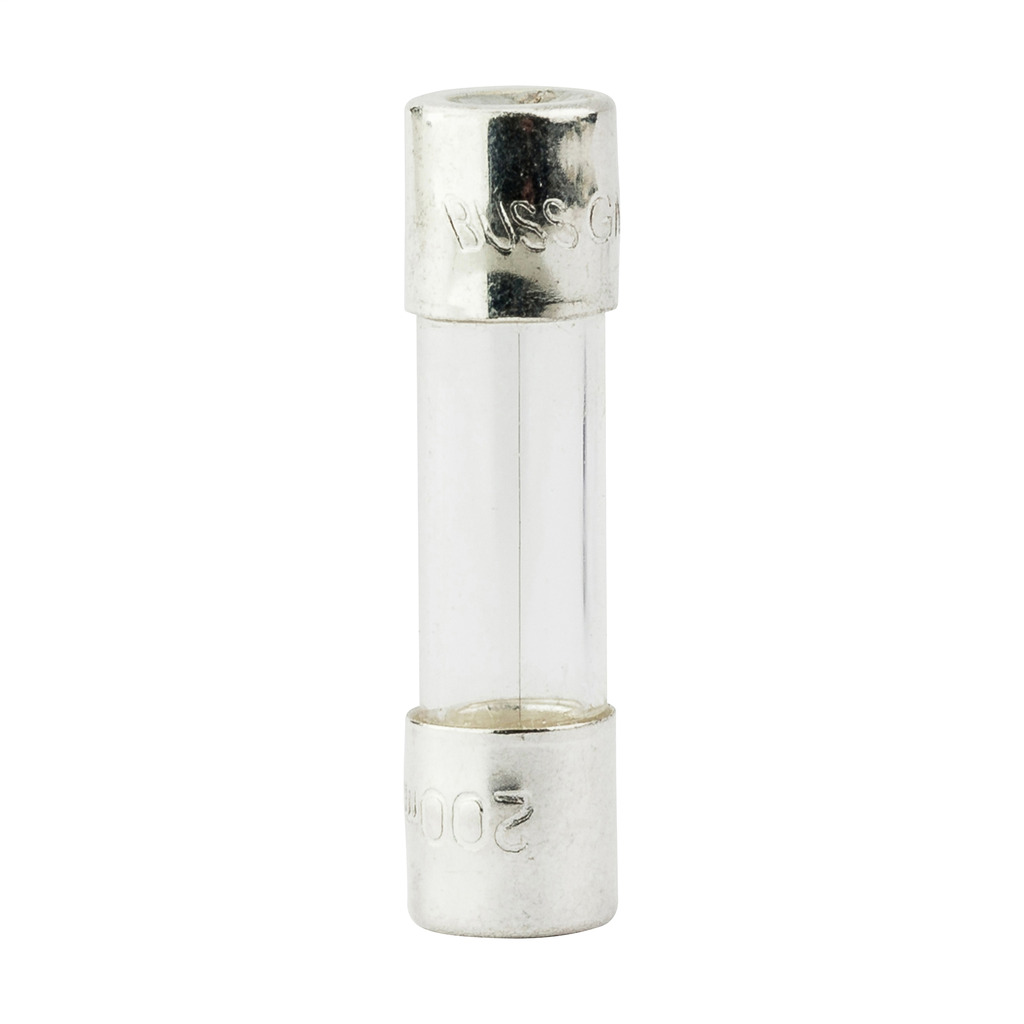

Fast-acting, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation Eatons GMA fast-acting, glass tube 5mm x 20mm ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Manuals & Documentation
Catalog Number BK/GMA-100-R
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin China
Made in USA No
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Interrupt Rating 10 kAIC at 125 Vac|35 AIC at 250 Vac
Material Glass tube|Silver-plated brass endcap construction
Response Time 60 min at 135%, 2 min at 200%
Special Features Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Silver Plated Brass End Cap, ROHS Complaint, Packa
Standard RoHS Compliant,CE Marked
UPC 051712647212
GTIN 00051712647212
Item Type Fast-acting fuse
Weight UOM Pounds
Size 5 mm Diameter X 20 mm Length
Voltage Rating 250 Vac, 32 Vdc (self certified)
