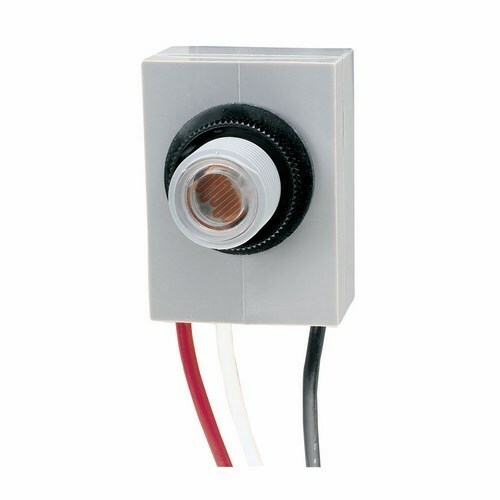

K4023C K4000 Thermal Housing Photocontrol, 208 to 277 V AC, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR:
- Intermatic
- MFR #:
- K4023C
- UPC:
- 078275029576
- Item #:
- 70236
K4023C K4000 Thermal Housing Photocontrol, 208 to 277 V AC, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR #:
- K4023C
- UPC:
- 078275029576
- Item #:
- 70236
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.
Manuals & Documentation
| Catalog Number | K4023C |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Frequency Rating | 50/60 HZ |
| Mounting | Button Fixed Mount |
| Sensitivity | 1-5 FC ON, 3-15 FC OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 9 IN Wire Leads |
| Standard | UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 208 - 277 VAC |
| UPC | 078275029576 |
| GTIN | 00078275029576 |
| Item Type | Thermal Type Photo Cell |
| Size | 1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
| Cross Reference Products | 3002 |
