Klein Tools

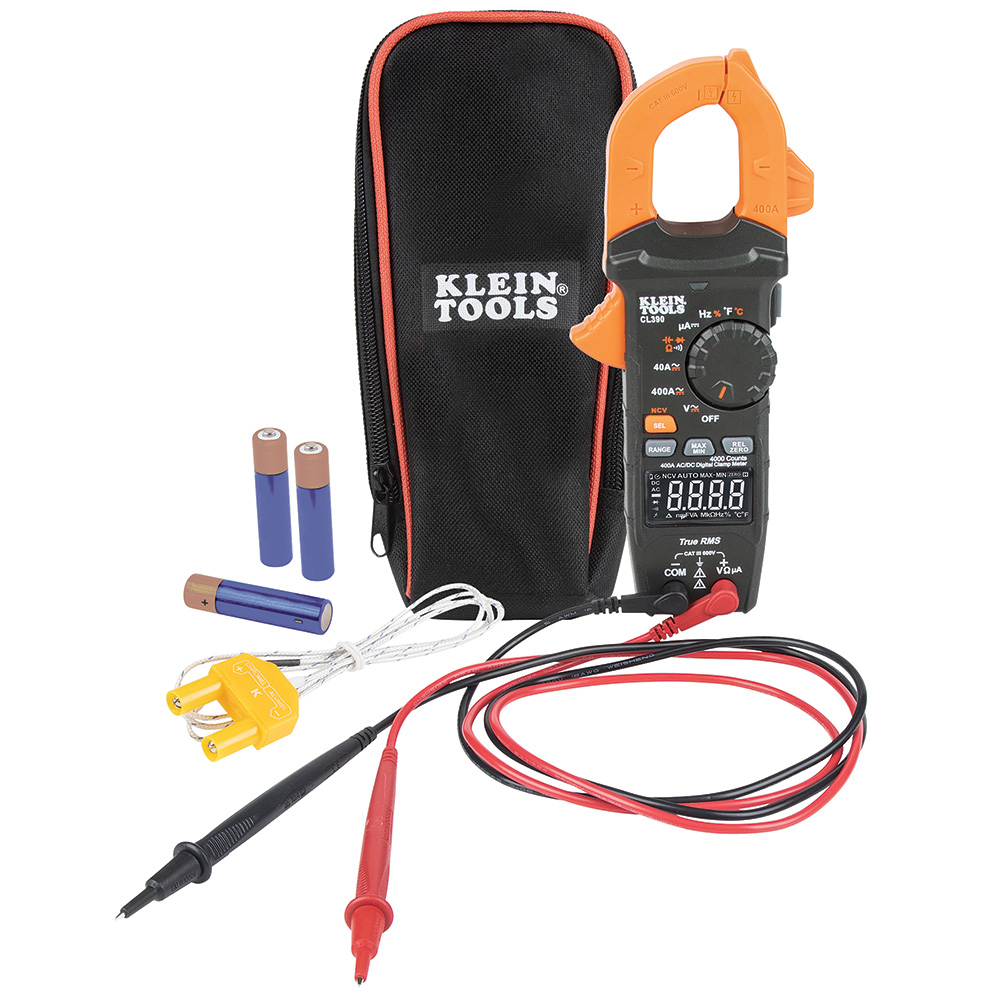

CL390 Auto-Ranging AC/DC Digital Clamp Meter, 600 V AC/DC, 400 A, 4000 uF, 200 uA, 40 Mohm, 10 Hz to 60 kHz, 1.61 in Jaw, Reverse Contrast LCD Display

MFR:
Klein Tools
MFR #:
CL390
UPC:
092644692871
Item #:
701133

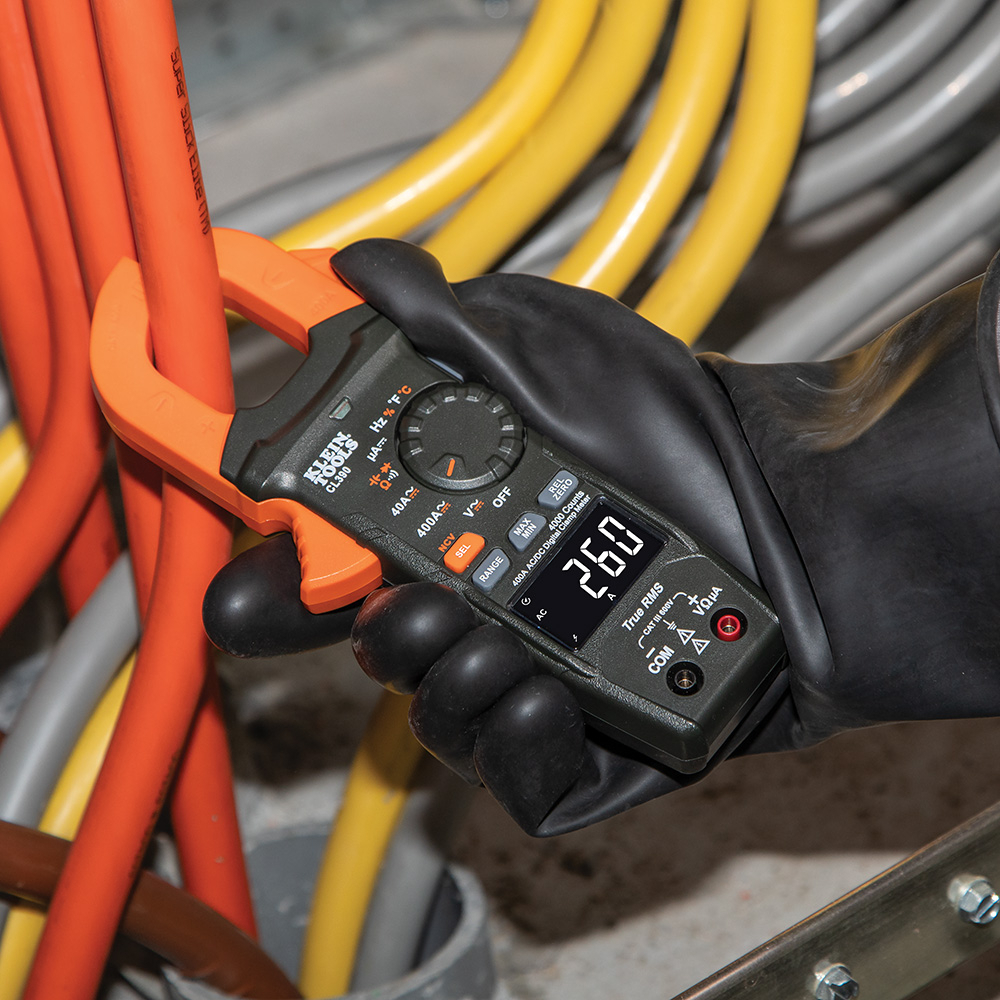

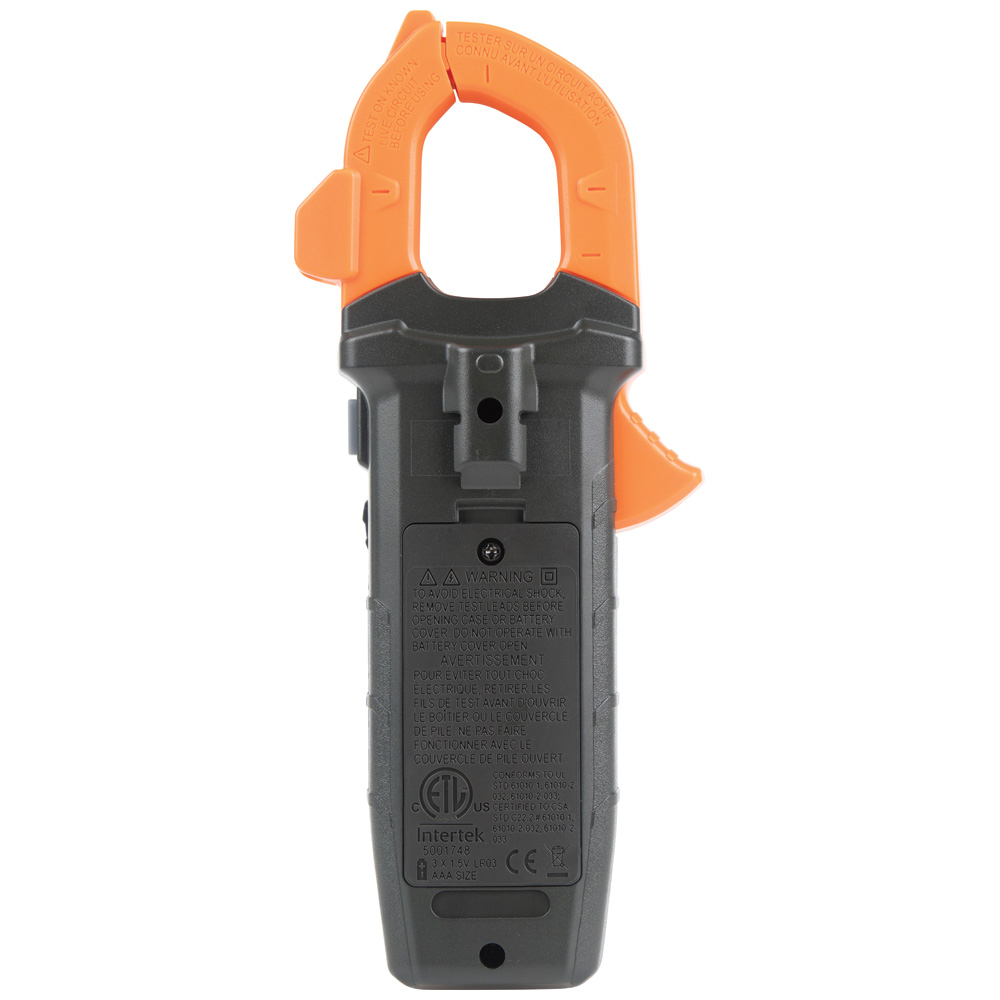

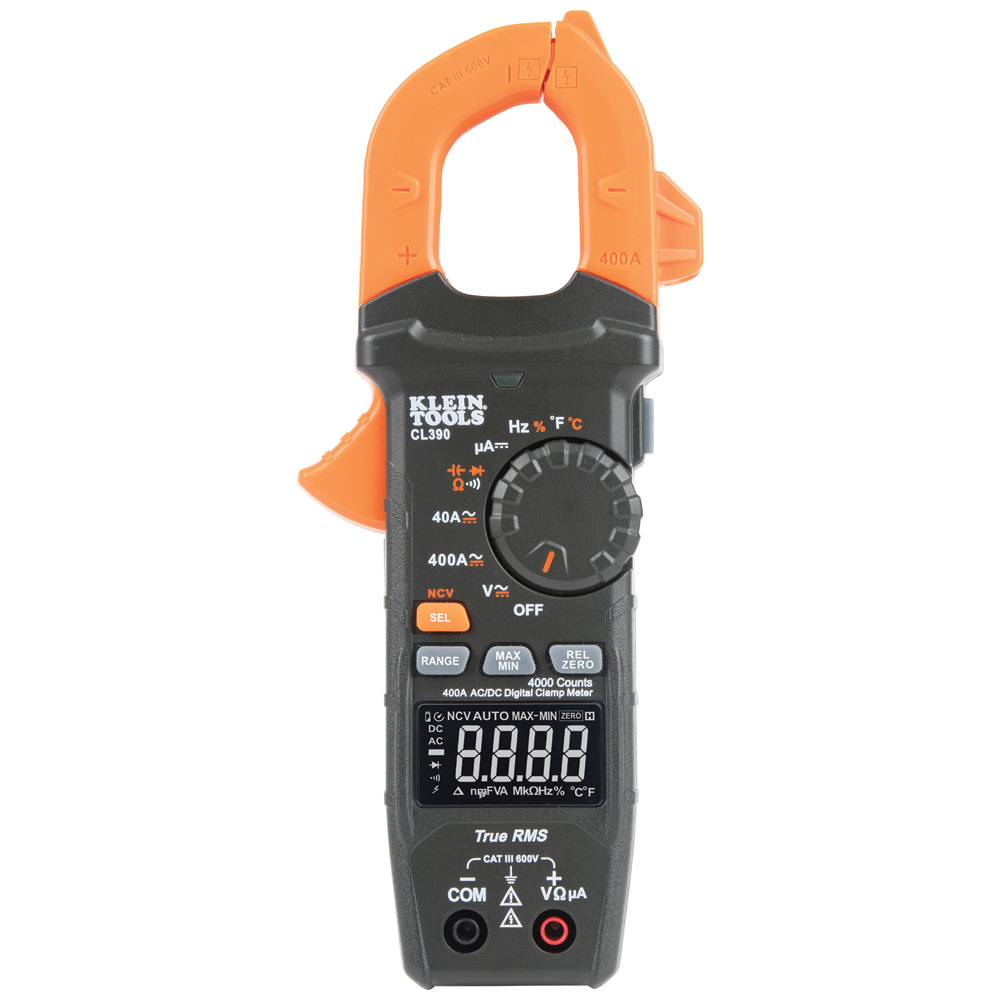

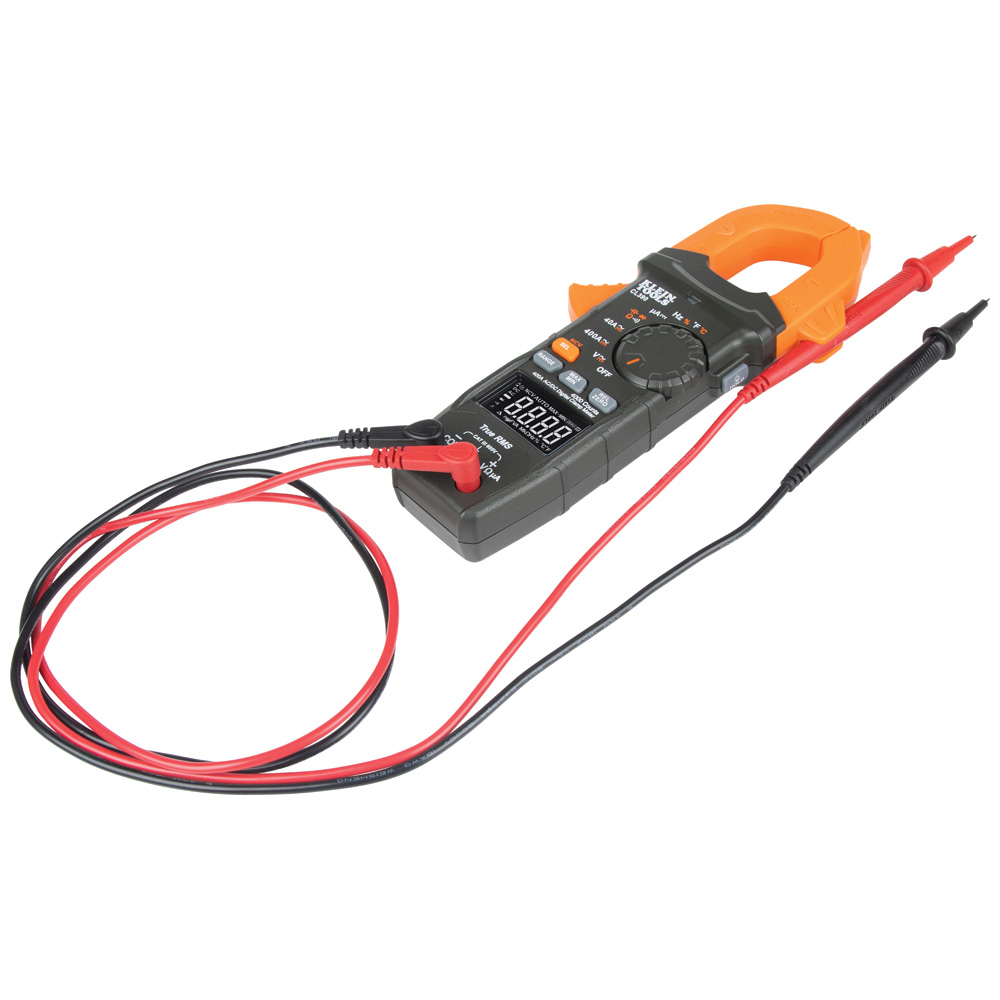

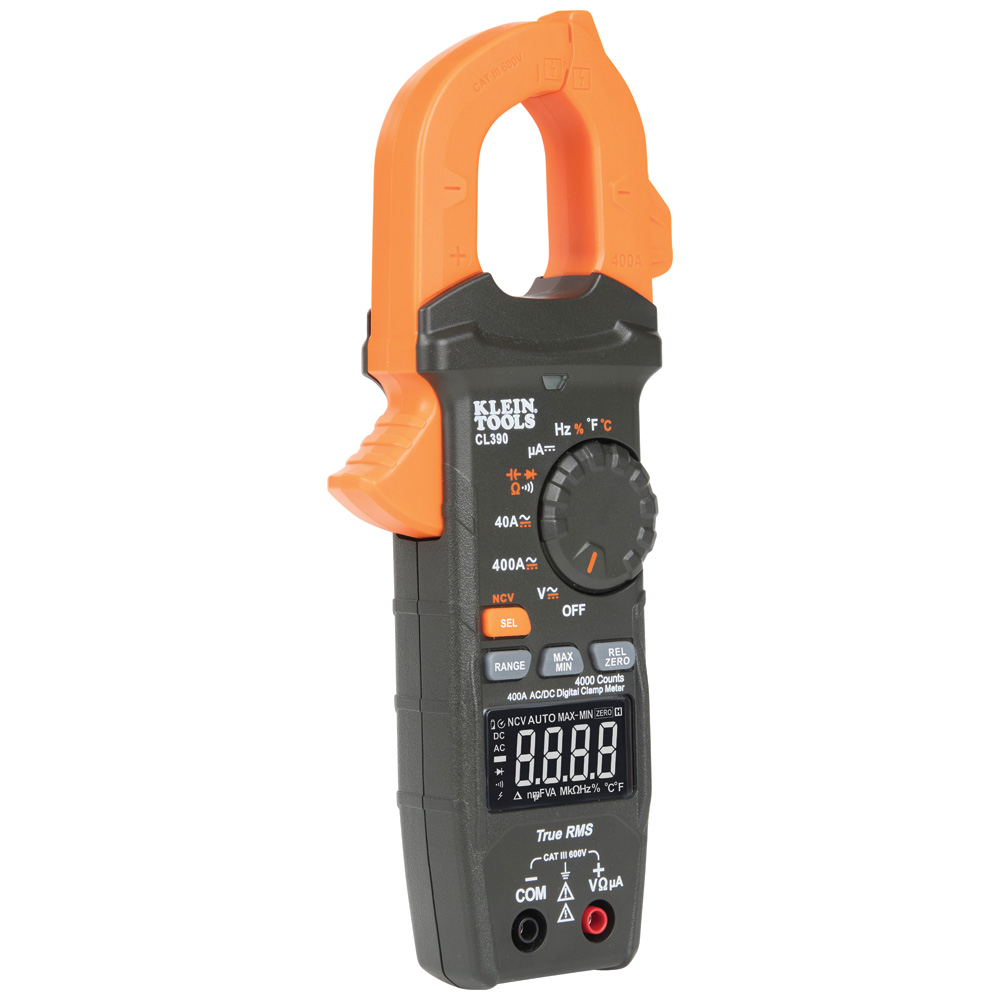

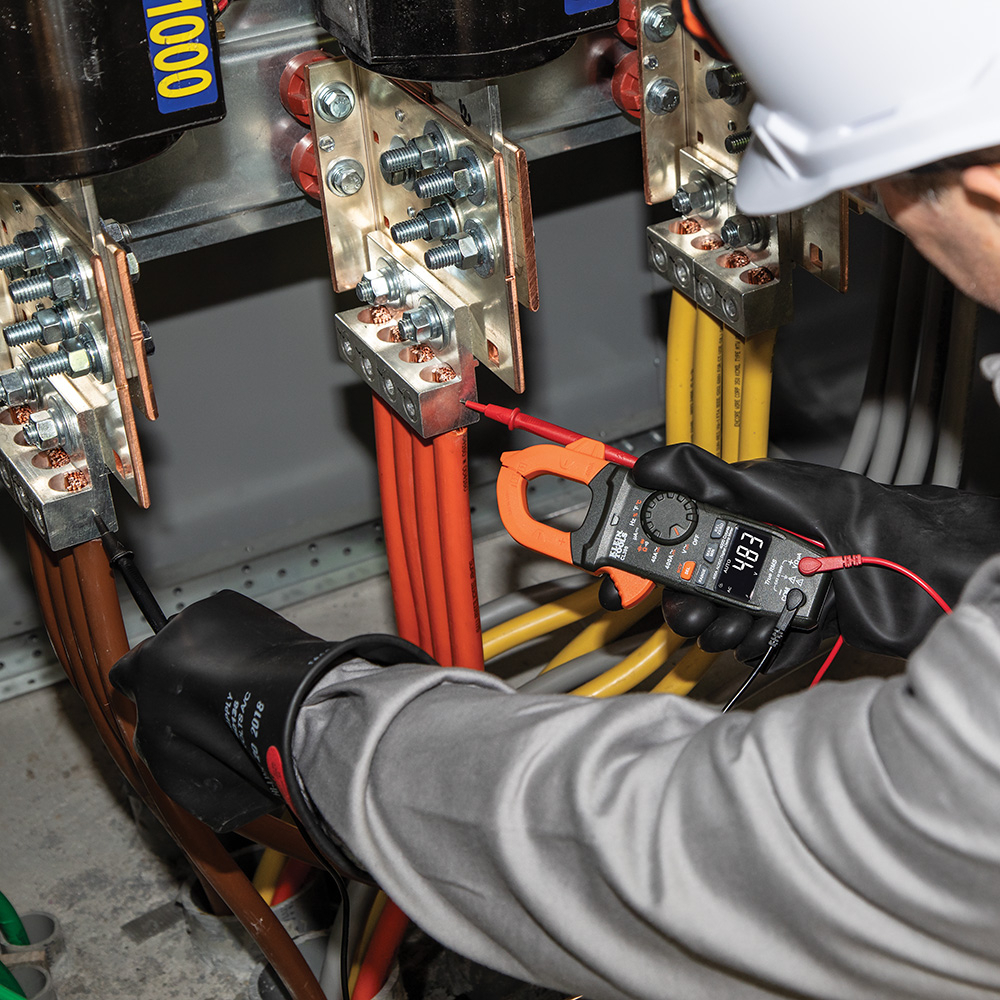

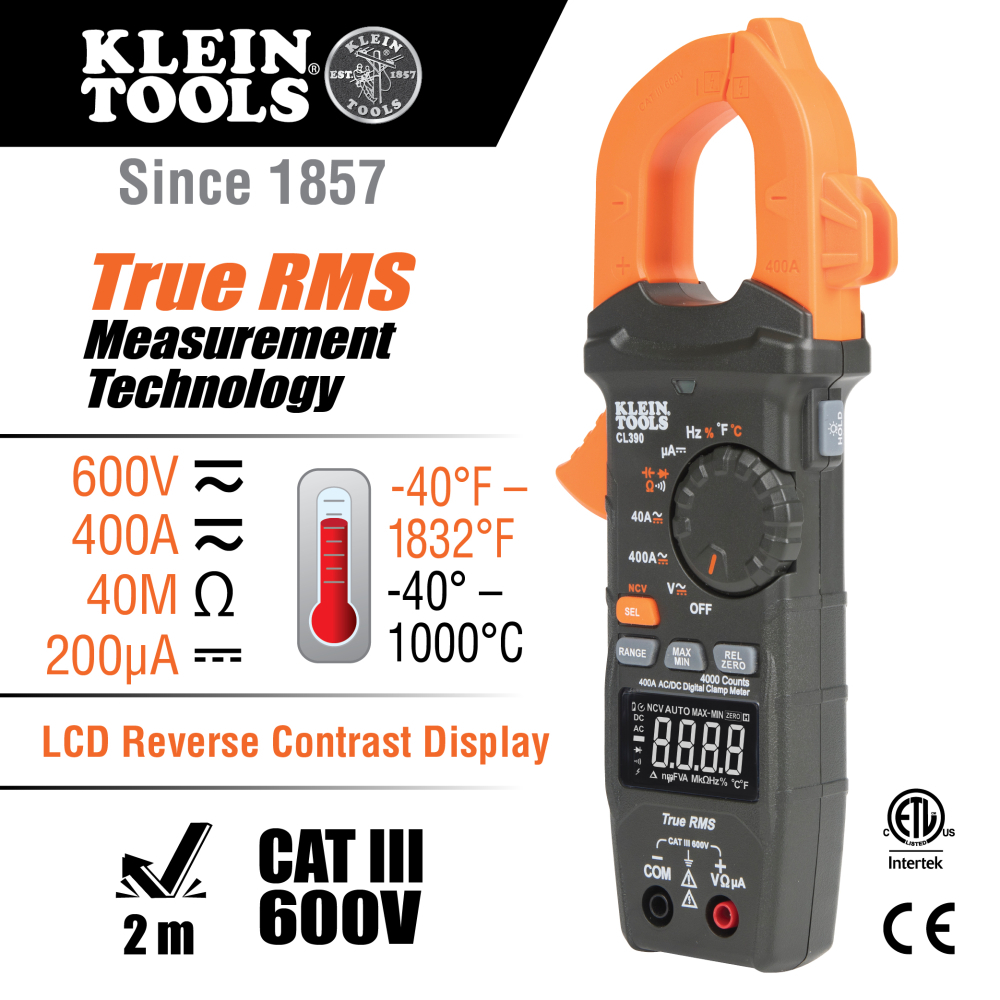

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

Manuals & Documentation

Features

  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Non-contact voltage tester integrated into the clamp jaw
  • High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Measures temperature with a K-Type thermocouple probe
  • Max/Min, Rel/Zero and Data Hold capability
  • Auto-power off after 10 minutes to conserve battery life
Catalog Number CL390
Manufacturer Klein Tools
Brand Klein Tools
Country of Origin China
Made in USA No
Application Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
Display 4000 Count Reverse Contrast LCD
Material ABS/Electronics
Special Features Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Standard CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
UPC 092644692871
GTIN 00092644692871
Item Type AC/DC Current TRMS Clamp
Width 3.5120
Height 1.5060
Depth 8.4500
Weight 0.5160
Temperature Range -40° - 1832°F (-40° - 1000°C)
