| Catalog Number | 65/747 |
| Manufacturer | Satco |
| Brand | Nuvo |
| Country of Origin | China |
| Made in USA | No |
| Application | Security Lighting |
| Lamp Type | LED |

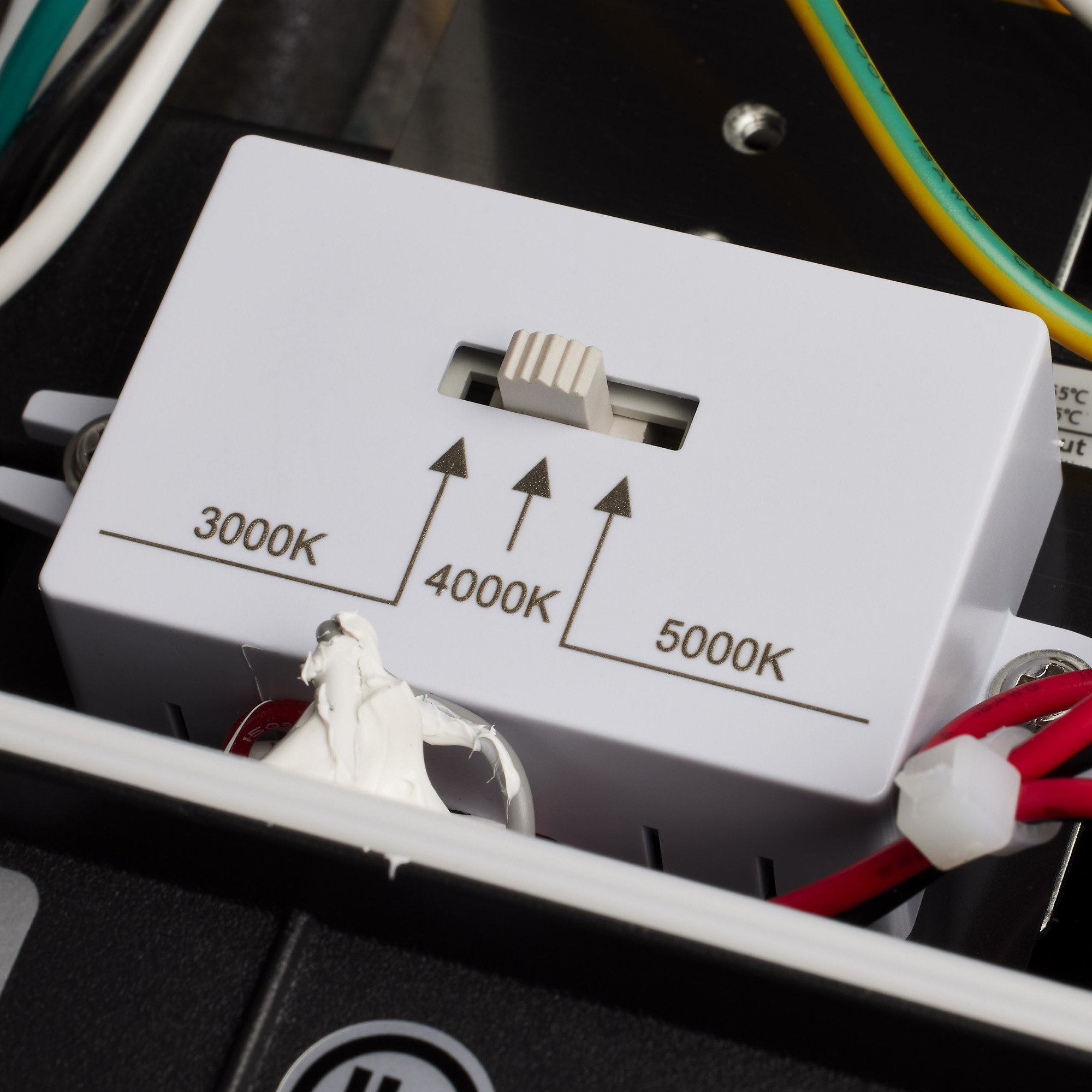

| Special Features | CEC: California T24 2016 & 2019 JA8 Compliant - Outdoor LED ; Warranty: 5 Year Limited - Fixtures ; Watts: 20W ; Lumens: 2608.9L/2920.8L/2703.4L ; CCT: 3000K/4000K/5000K ; Color Temperature: Warm to Cool White ; CRI: 80+ ; Dimmable: Yes-Dimmable ; Dimmable Text: 0-10V Dimming ; Lamp Base: Integrated LED ; Hours Rated: 50000 ; DLC Approved: Yes ; Energy Star: No ; Width: 5.81 in. ; Height: 8.59 in. ; Extends: 3.09 in. ; Weight: 1.98 lb. ; ADA Compliant: Yes ; CCT Selectable: Yes ; FCC Compliant: Yes ; HID Equivalent: 100W-150W ; Indoor/Outdoor: Outdoor ; IP Rating: IP65 ; Lens Finish: Opaque ; Lens Material: Polycarbonate (PC) ; Material: Cast Aluminum ; NSF Approved: Yes ; Operating Temperature: -20C (-4F) to +45C (+113F) ; Surge Protection: 2.5KV ; Photocell: Yes |
| Standard | cULus - Listed |
| UPC | 045923657474 |
| GTIN | 00045923657474 |

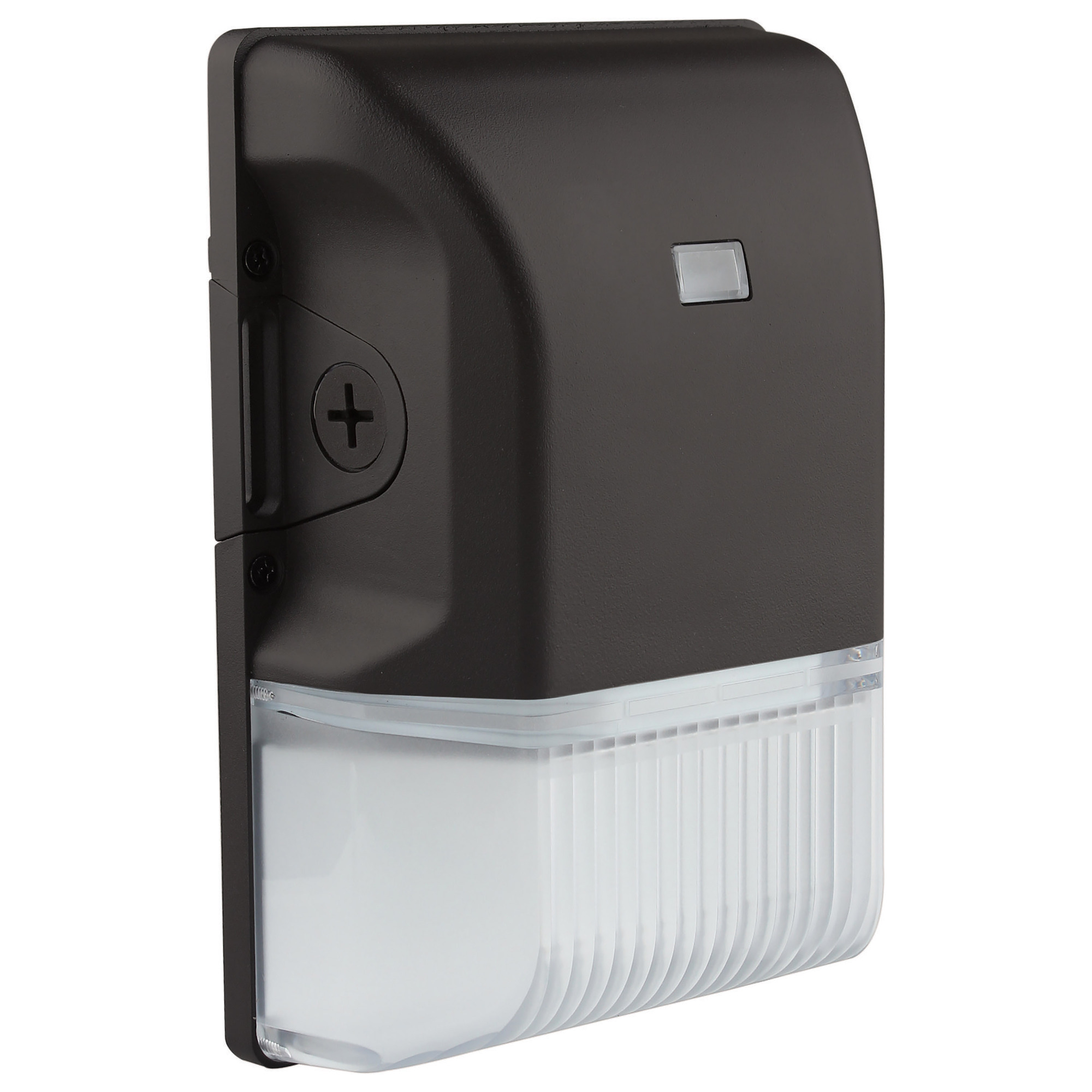

| Item Type | Wall Pack |
| Environmental Conditions | Wet Location |
