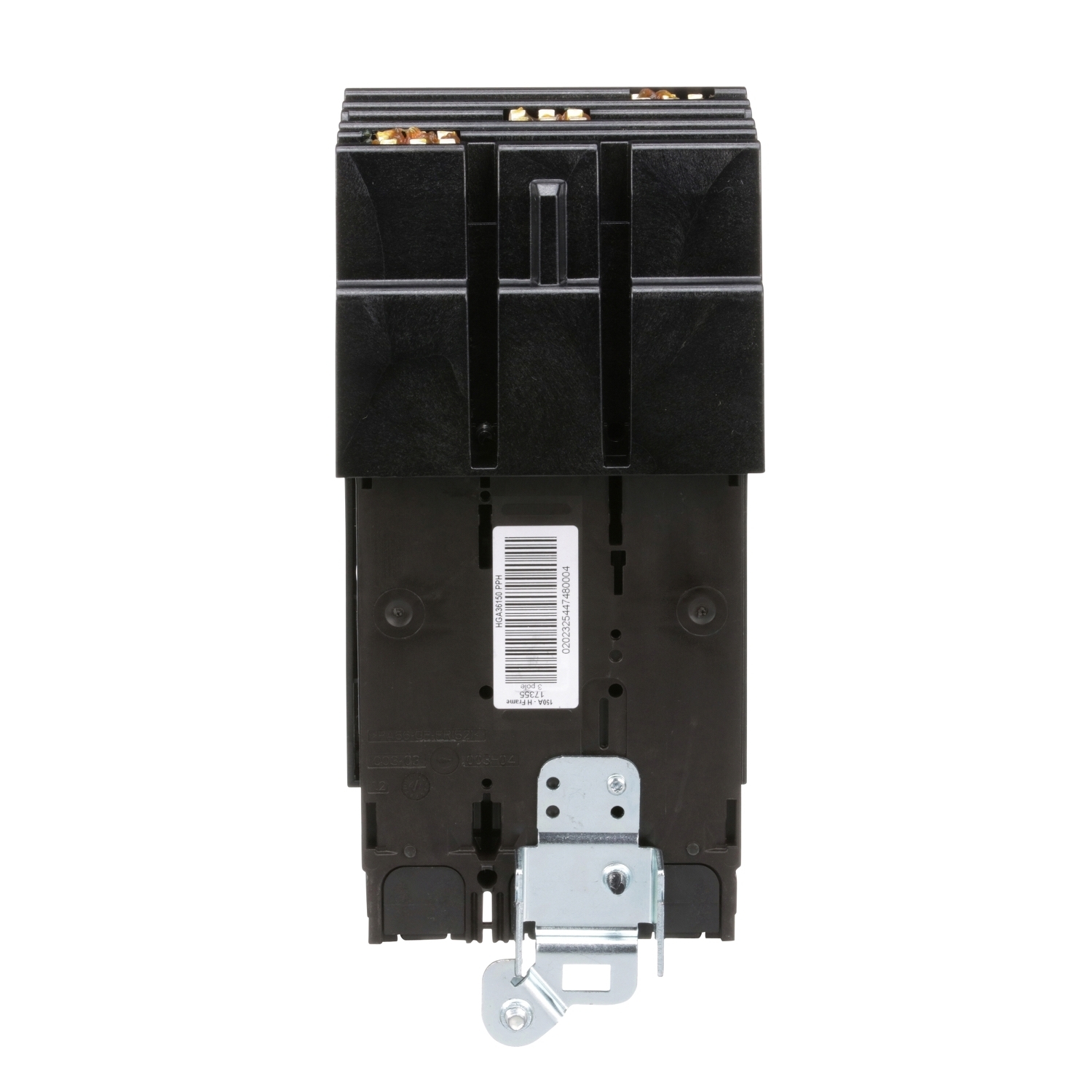

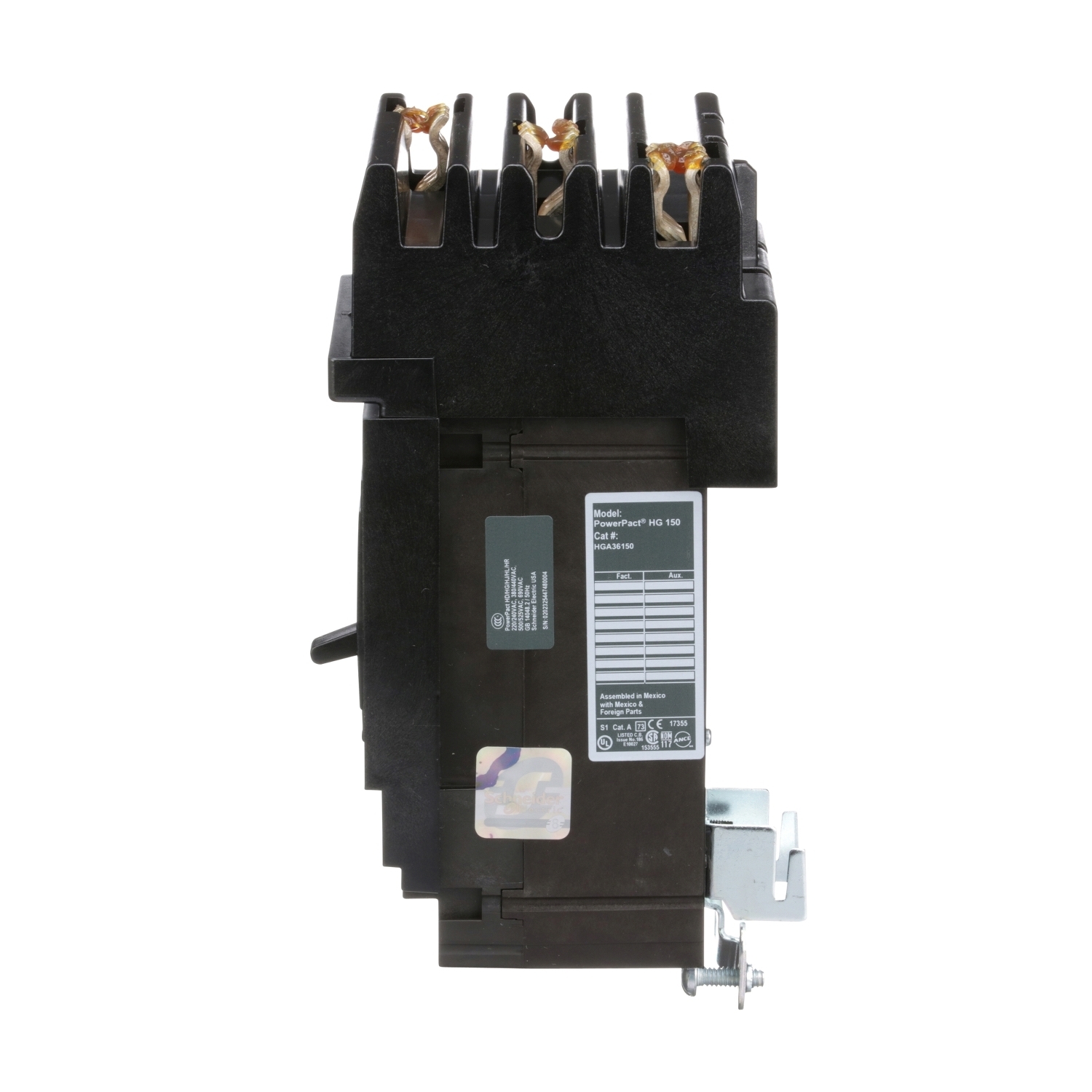

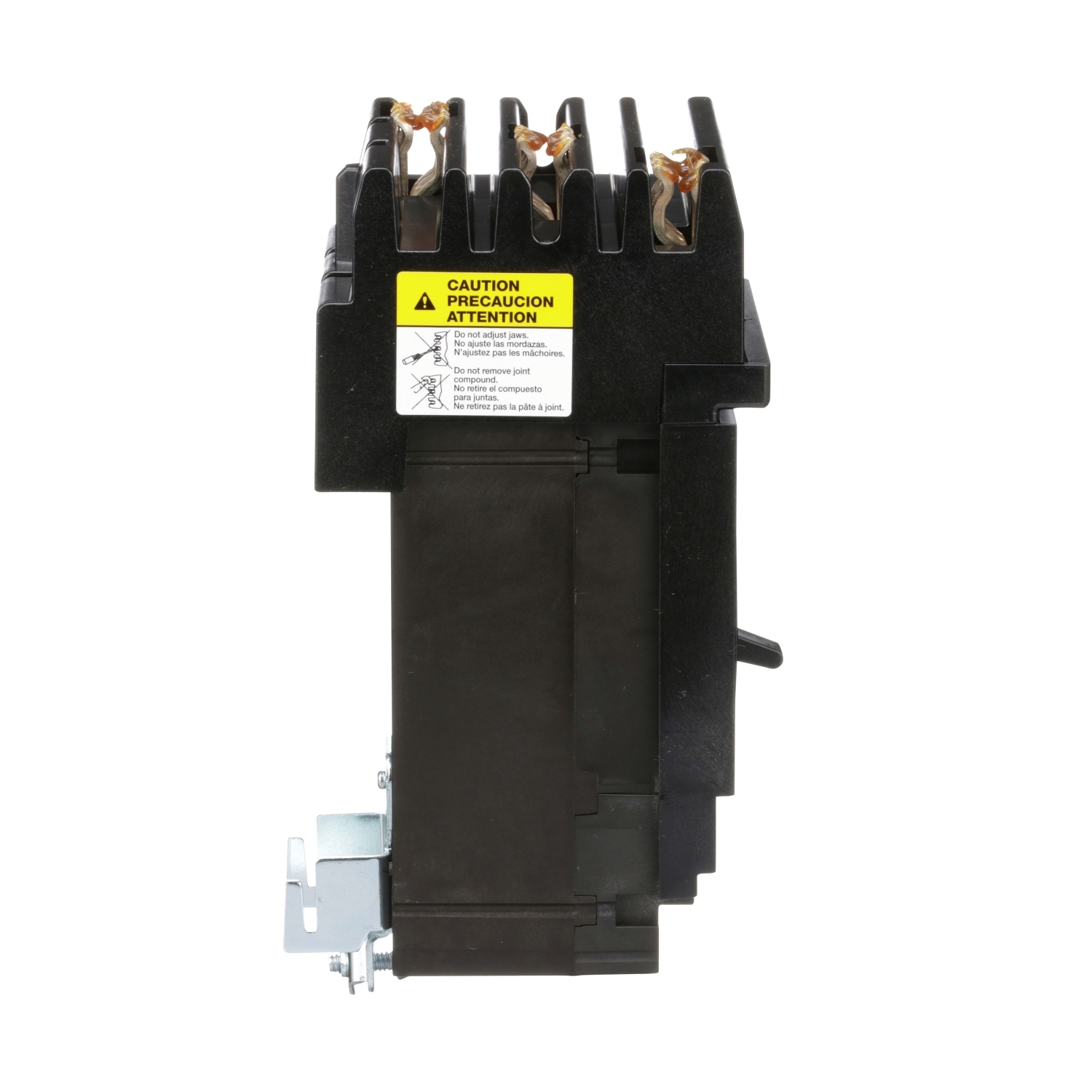

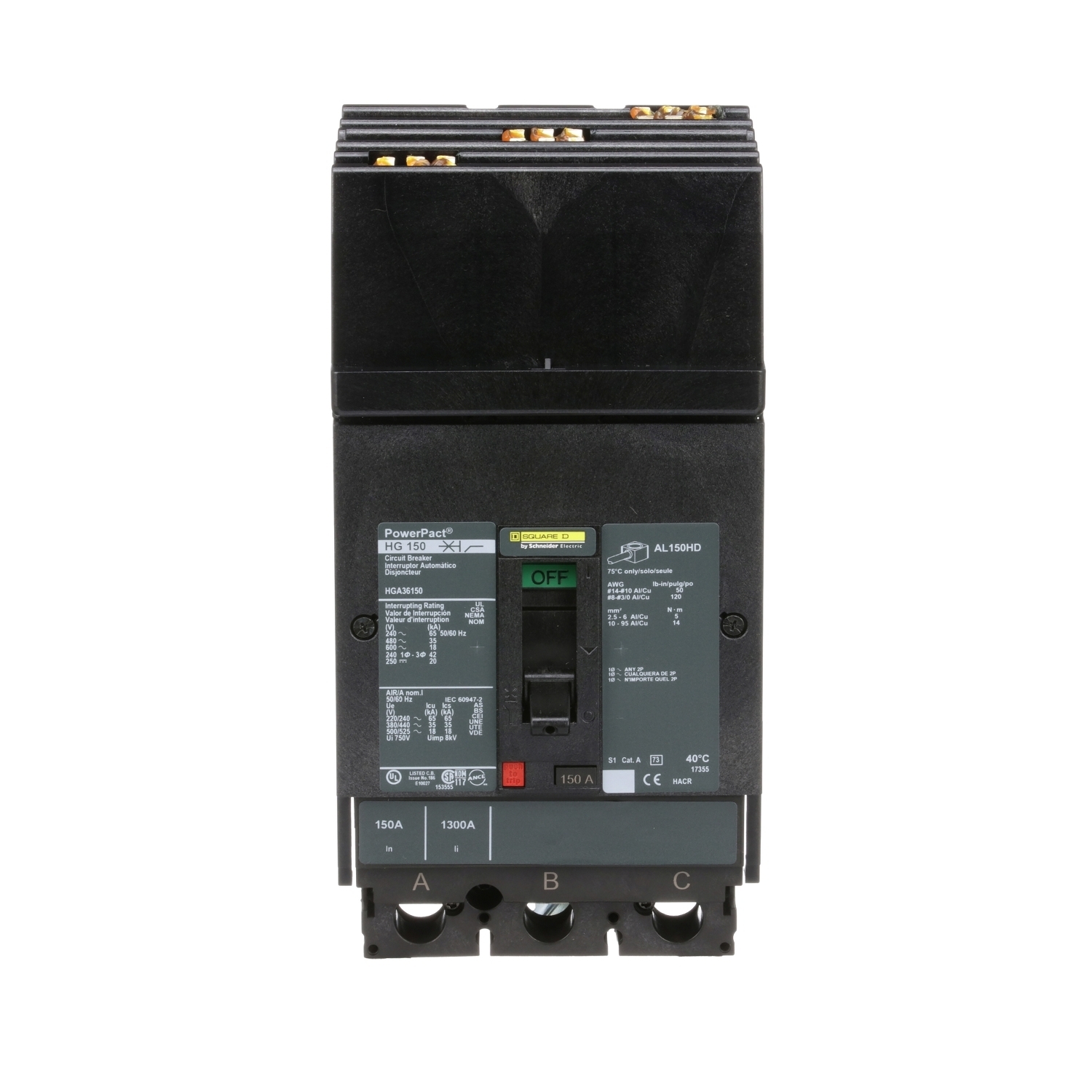

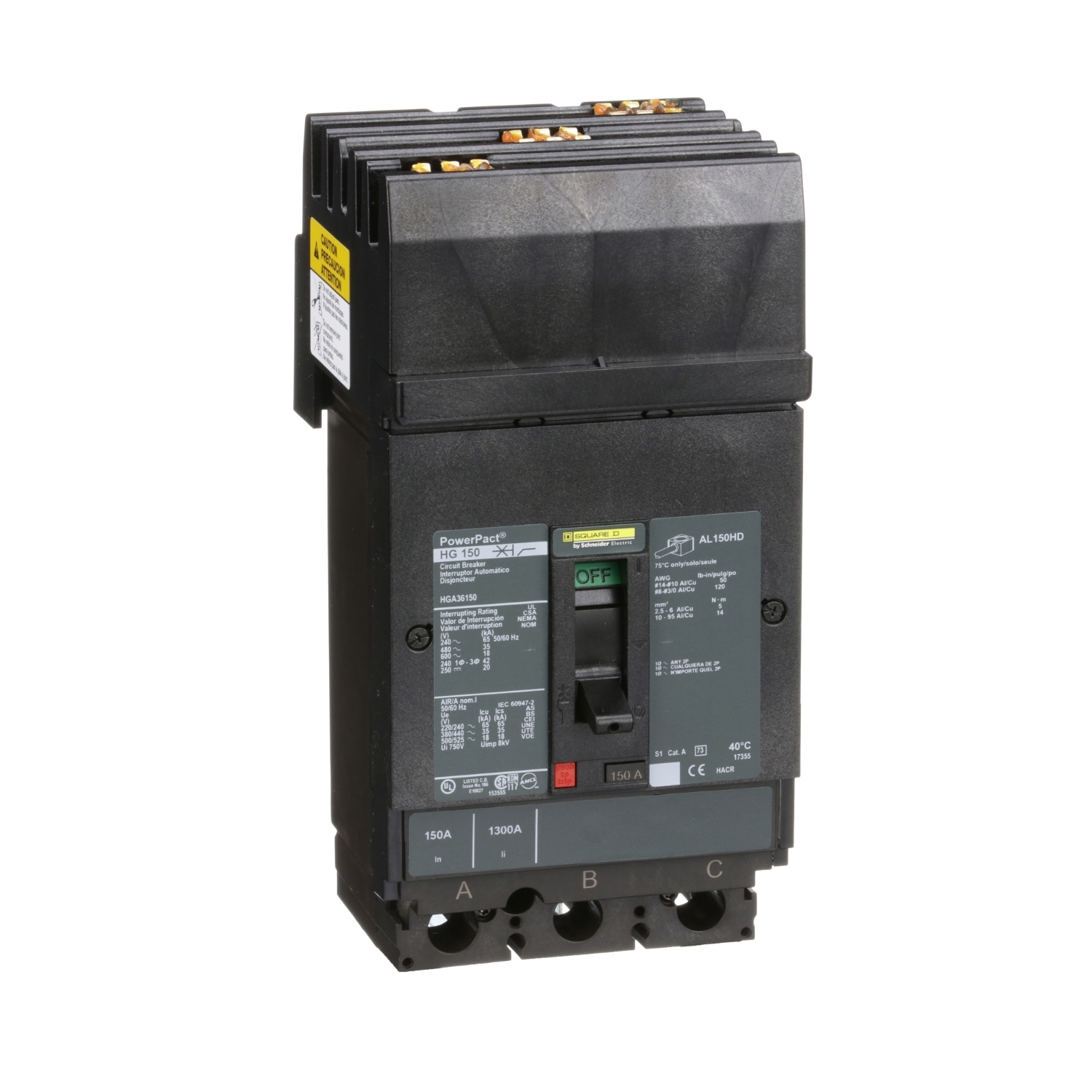

HGA36150 PowerPact 80% Rated Type HGA Molded Case Circuit Breaker, 600 V AC/250 V DC, 150 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- HGA36150
- UPC:
- 785901795070
- Item #:
- 69899
HGA36150 PowerPact 80% Rated Type HGA Molded Case Circuit Breaker, 600 V AC/250 V DC, 150 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- HGA36150
- UPC:
- 785901795070
- Item #:
- 69899
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | HGA36150 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Actuator | Toggle |
| Application | Distribution;HACR rated |
| Color | Black |
| Connection | I-Line connection, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet;1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422517&lang=en-us |
| UPC | 785901795070 |
| GTIN | 00785901795070 |
| Item Type | Circuit breaker |
| Trip Type | Thermal-magnetic |
