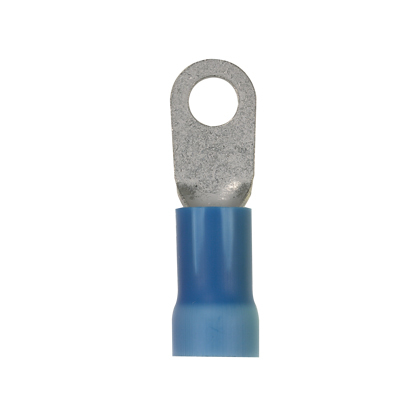

Ring Terminal, large wire, 6 AWG, 1/2 stud size, vinyl insulated, standard package.
Manuals & Documentation
| Catalog Number | PV6-12R-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164 |
| UPC | 074983124602 |
| GTIN | 00074983124602 |
| Item Type | Ring Terminal |
| Size | 1/2" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #6 AWG |
