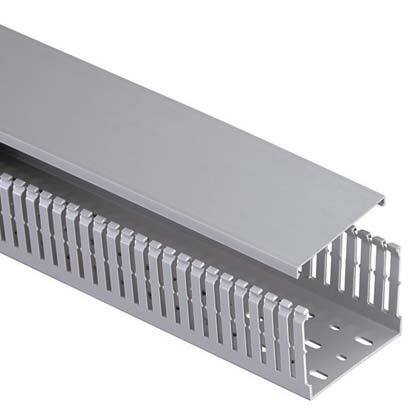

The MC62X62IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 2.35 x 2.44 (59.7 mm x 62.0 mm) and 6.6' (2 m) long. Cover included. Color International Gray. 10 pieces per package.
Manuals & Documentation
| Catalog Number | MC62X62IG2 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | International Gray |
| Connection | DIN Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.2 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983743094 |
| GTIN | 00074983743094 |
| Item Type | Wiring Duct Base with Cover |
| Length | 78.74 |
| Length UOM | Inch |
| Width | 2.44 |
| Width UOM | Inch |
| Size | 2.44 x 2.35 |
