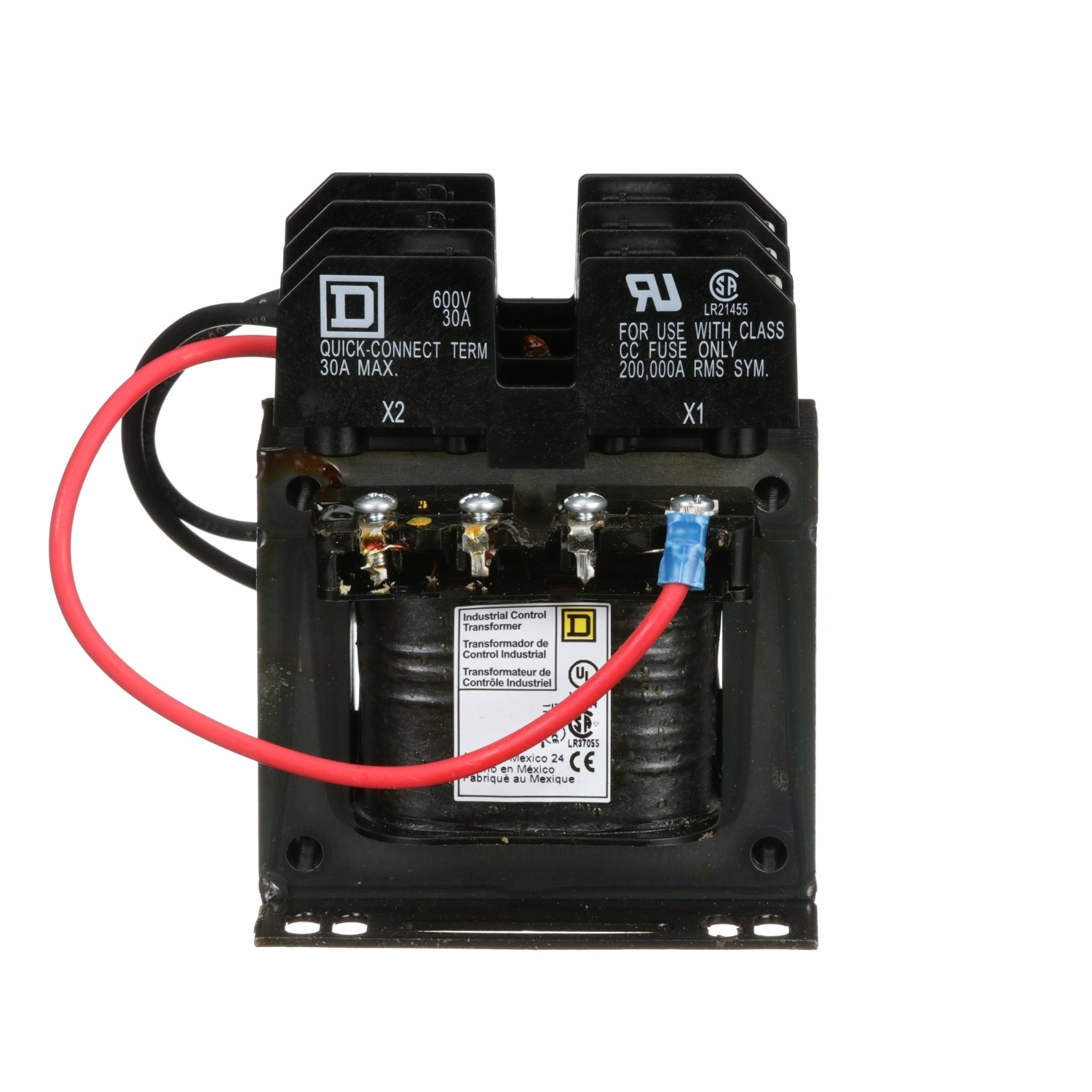

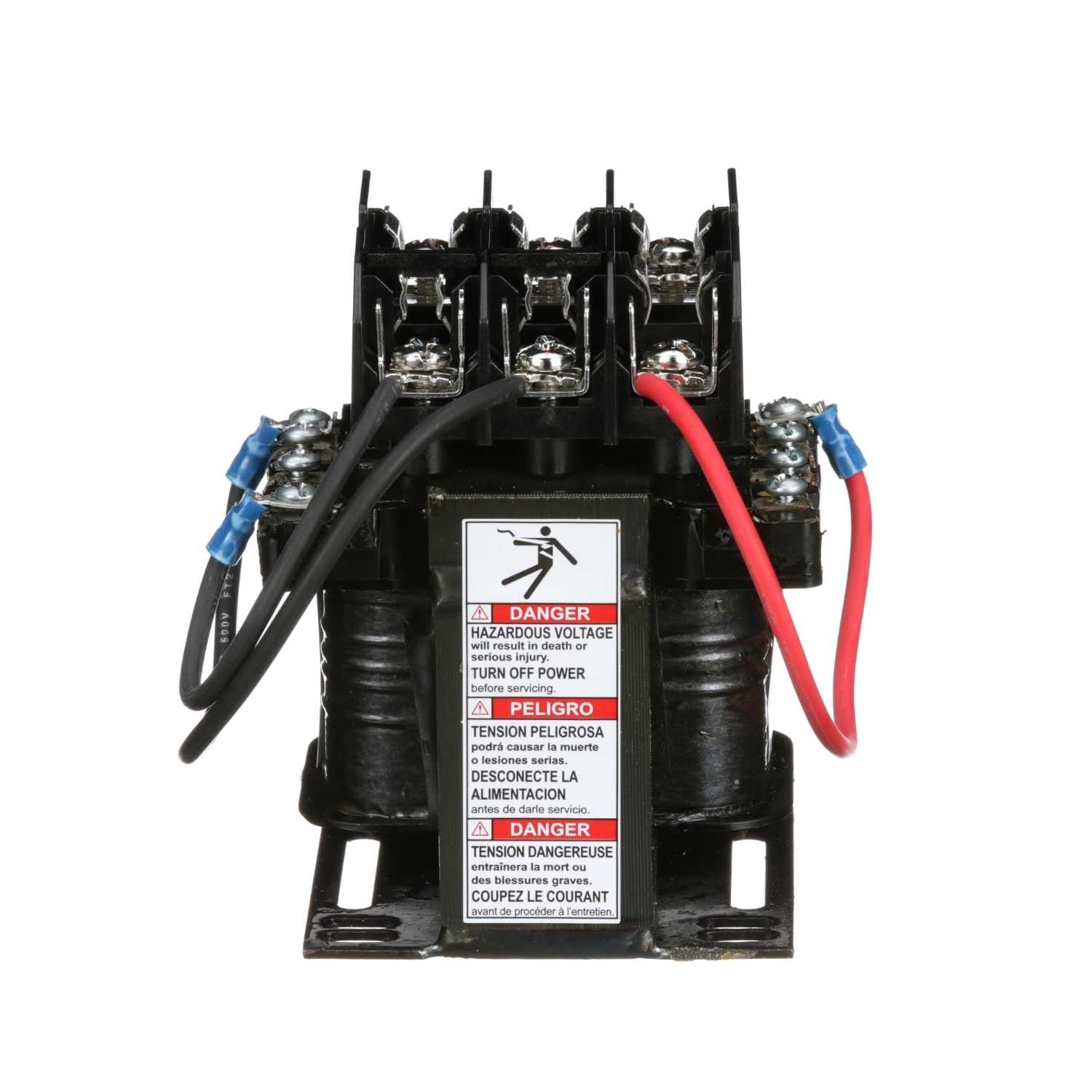

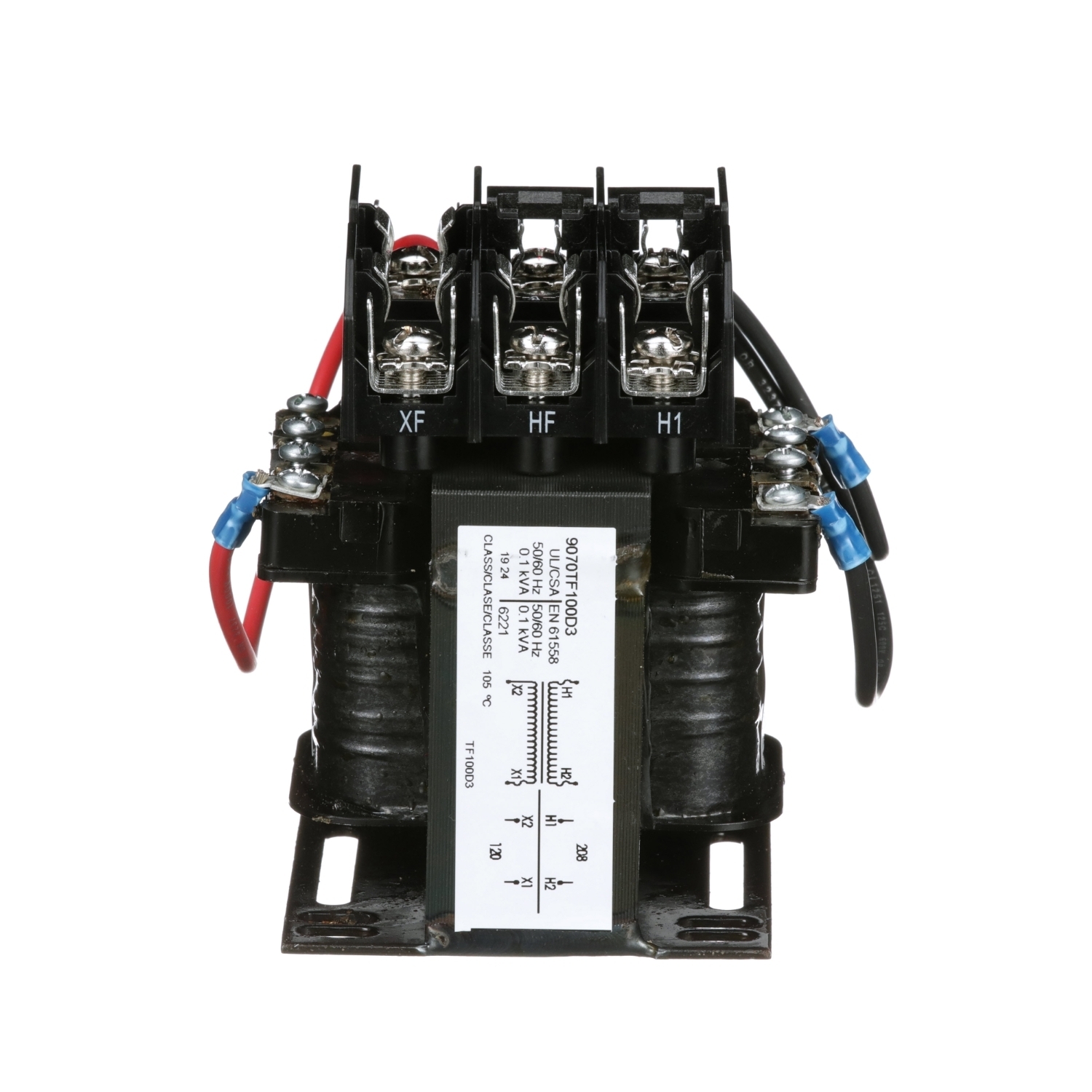

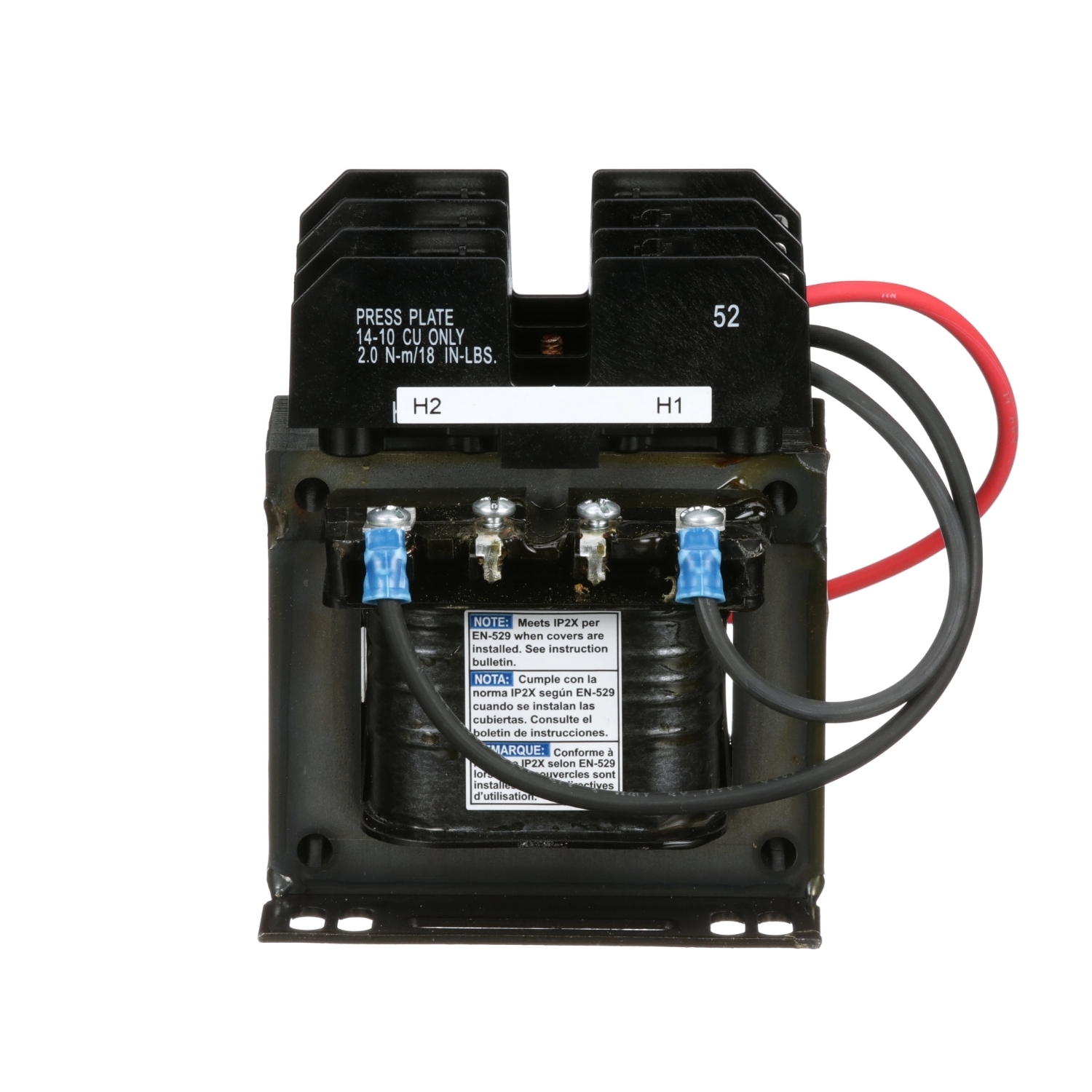

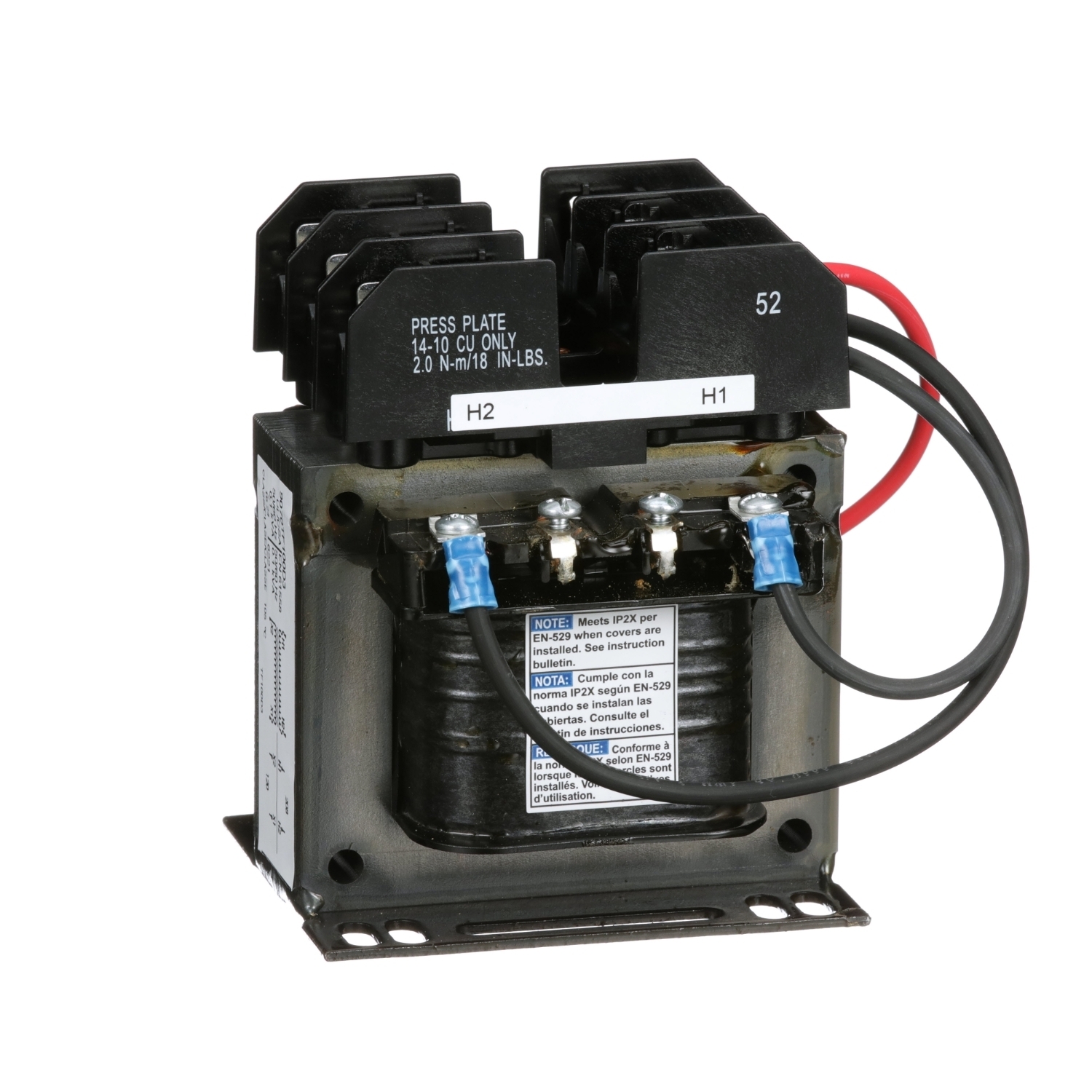

9070TF100D3 Type TF Industrial Control Transformer, 208 V AC Primary, 120 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Schneider Electric
- MFR #:
- 9070TF100D3
- UPC:
- 785901905769
- Item #:
- 69177
9070TF100D3 Type TF Industrial Control Transformer, 208 V AC Primary, 120 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- 9070TF100D3
- UPC:
- 785901905769
- Item #:
- 69177
We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 208V primary voltage and 120V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 4.18 in (H), 3.38 in (W), 3.34 in (D). T his transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1.
Manuals & Documentation
| Catalog Number | 9070TF100D3 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454243&lang=en-us |
| UPC | 785901905769 |
| GTIN | 00785901905769 |
