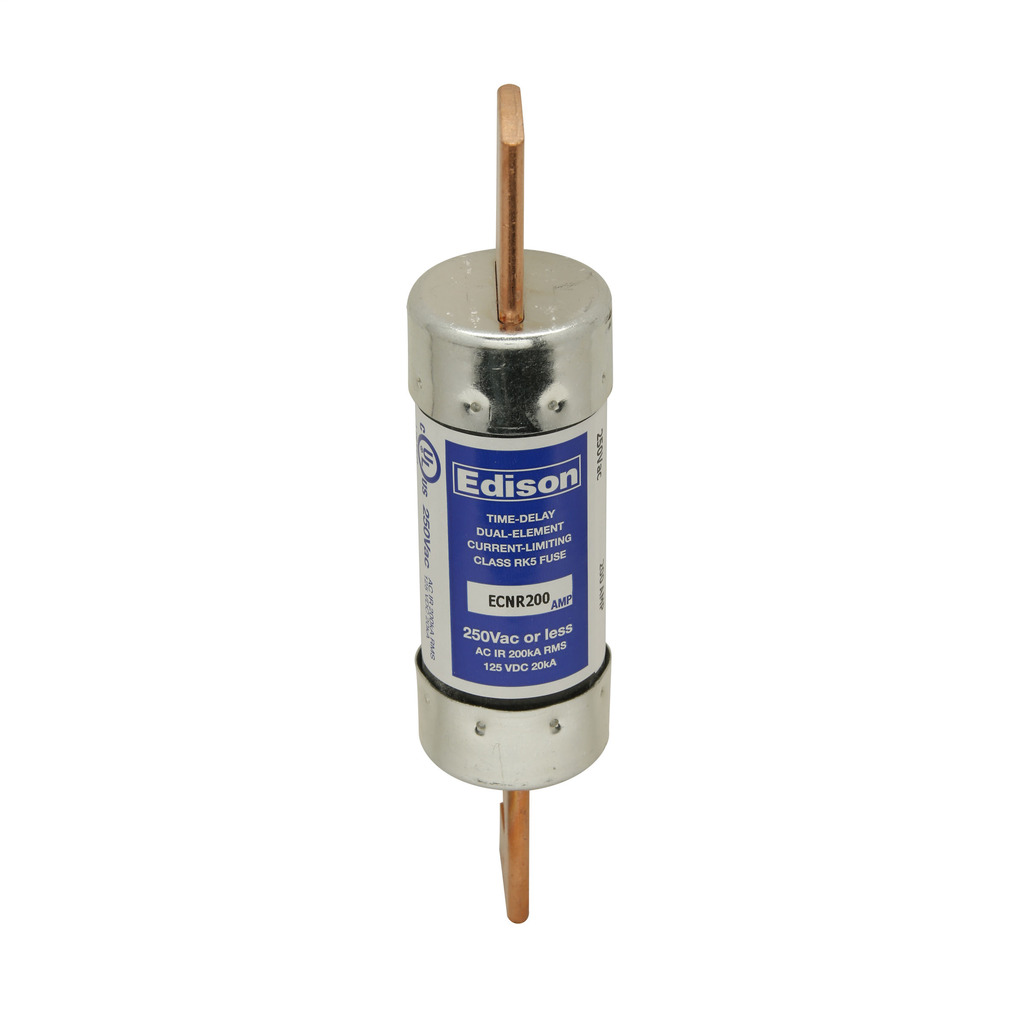

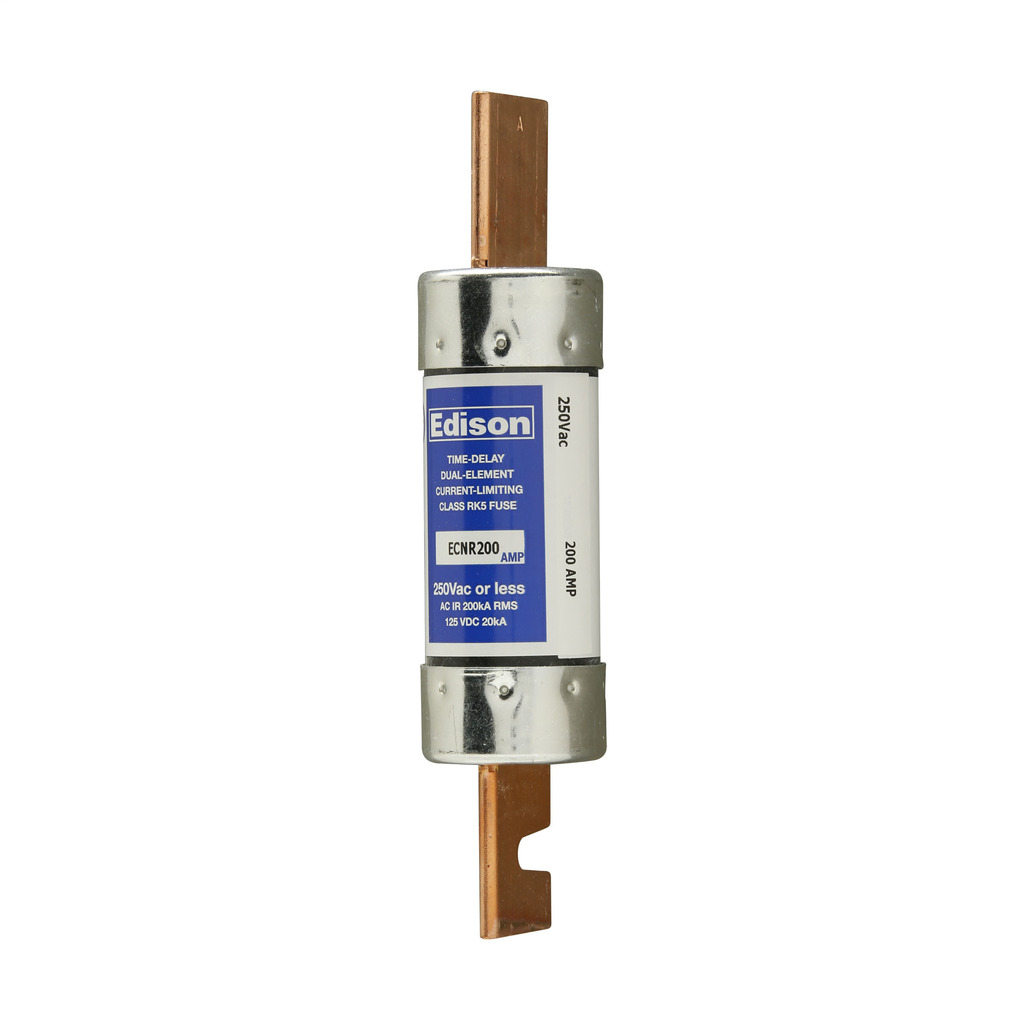

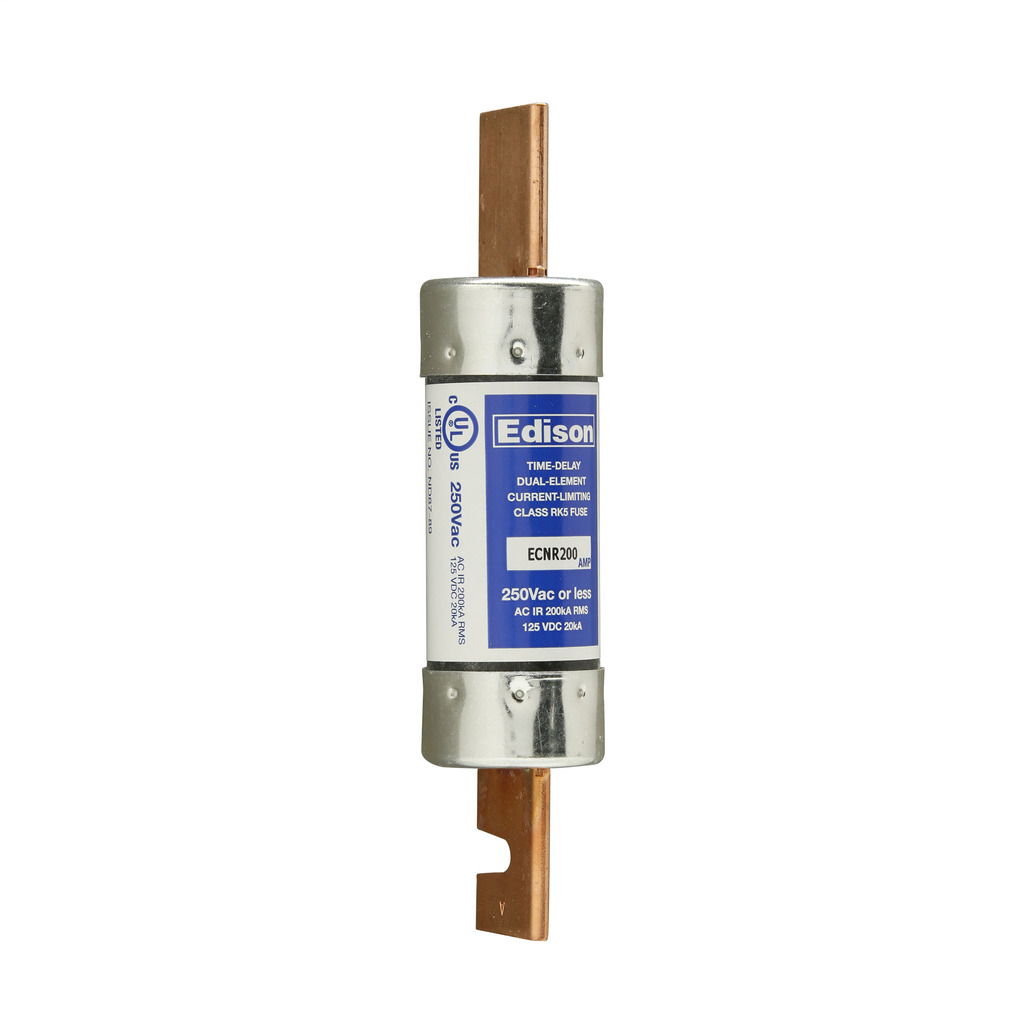

ECNR200 Bullet Current Limiting Time Delay Fuse, 200 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class
- MFR:
- Eaton Bussmann
- MFR #:
- ECNR200
- UPC:
- 782634507482
- Item #:
- 691185
ECNR200 Bullet Current Limiting Time Delay Fuse, 200 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class
- MFR #:
- ECNR200
- UPC:
- 782634507482
- Item #:
- 691185
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
Manuals & Documentation
| Catalog Number | ECNR200 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton |
| Sub Brand | Edison |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Blade end x blade end |
| Interrupt Rating | 200 kAIC |
| Response Time | 10 S at 500% |
| Special Features | Non current limiting |
| Standard | CE Marked |
| UPC | 782634507482 |
| GTIN | 00782634507482 |
| Item Type | Fuse |
| Dimensions | 8.6300 IN X 2.3800 IN X 2.3800 IN |
| Weight UOM | Pounds |
| Size | 1.56 In Diameter X 7.13 In Length |
| Type of Indicators | Non-Indicating |
| Voltage Rating | 250 Vac, 125 Vdc |
